Stub Shaft Seal: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
SPECIAL TOOL(S)
| Adapter For 303-224 (Handle) 205-153T80T-4000-W | |
| Installer, Front Axle Oil Seal 205-350T95T-3010-A | |
| Remover, Torque Converter Fluid Seal 307-309T94P-77001-BH | |
| Slide Hammer 100-001T50T-100-A |
MATERIAL
| Item | Specification |
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) | ESA-M1C75-B |

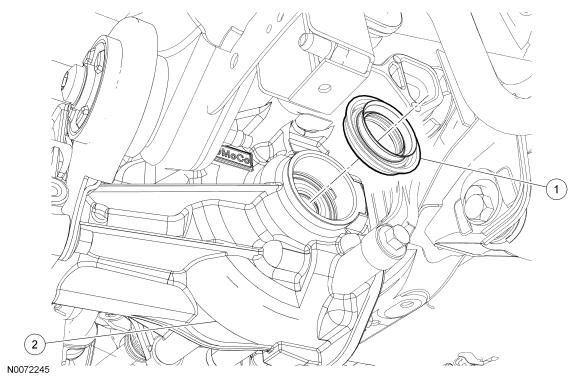

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 4B416 | Stud shaft seal | 307-309 T94P-77001-BH, 100-001 T50T-100-A, 205-350 T95T-3010-A, 205-153 T80T-4000-W | - | - |
| 2 | 4000 | Differential housing assembly | - | - | - |
