Connector End View (C4250A) - POWER-FOLD SEAT MODULE (PFSM)
Connector: C4250A
Description
POWER-FOLD SEAT MODULE (PFSM)
Color
BK
Harness
14B719
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
* |
* |
Not Used |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
CPS05 (BU-WH) |
16 |
CTRL MOD. - 3RD ROW REAR LEFT LATCH MOTOR |
|
|
4 |
CPS74 (VT-WT) |
16 |
CTRL MOD. - 3RD ROW REAR RIGHT LATCH MOTOR |
|
|
5 |
VDB06 (GY-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
|
6 |
CPS04 (YE-OG) |
16 |
CTRL MOD. - 3RD ROW REAR LATCH MOTOR RETURN |
|
|
7 |
VDB07 (VT-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
|
8 |
CBB18 (GY-OG) |
12 |
RELAY - 3RD ROW SEAT |
|
|
9 |
* |
* |
Not Used |
|
|
10 |
GD149 (BK-GY) |
12 |
GROUND - PILLAR D LEFT |
|
|
11 |
CPS57 (GY-BN) |
20 |
SWITCH - 3RD ROW SEAT LATCH RIGHT |
|
|
12 |
CPS51 (VT-GY) |
20 |
SWITCH - 3RD ROW SEAT LATCH RETURN |
|
|
13 |
CPS56 (GN-BN) |
20 |
SWITCH - 3RD ROW SEAT LATCH LEFT |
|
|
14 |
* |
* |
Not Used |
|
Available Pigtail Kits |
|
|

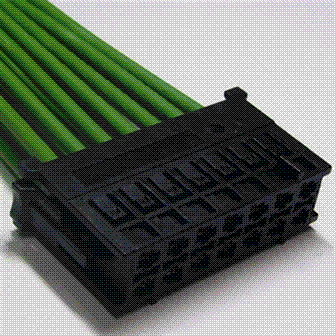

Pigtail Kit Part Number WPT-1365 |
Service Part Number: DU2Z-14S411-YA Gauge: 16 Pin material: Silver Cavities: 14 Vehicle Uses Module - Seat |
