Front Brake Pads - 352 mm (14 in) Brakes: Removal
WARNING:
Before beginning any service procedure in this service information, refer to SAFETY WARNINGS
NOTE:
Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.
NOTE:
Do not allow grease, oil, brake fluid or other contaminants to contact the pad lining material, or damage to components may occur. Do not install contaminated pads.
NOTE:
Removal steps in this procedure may contain installation details.

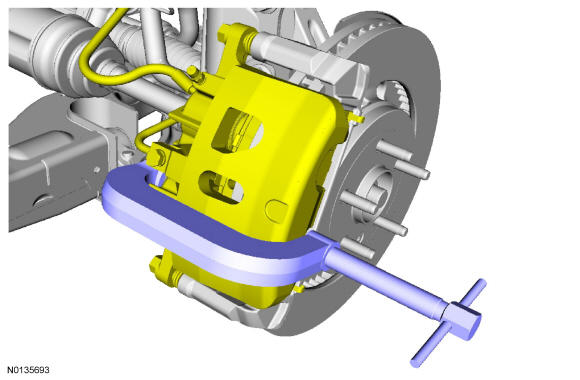

- 1.NOTE: The master cylinder reservoir should be half full to avoid overflow when the brake caliper pistons are retracted.
Visual check. Extract the fluid with a syringe.
- 2.
Remove the wheel and tire. For additional information, REFER to Wheels and Tires .

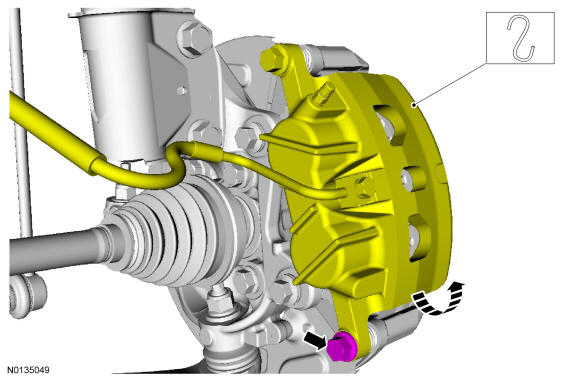

- 4.NOTE: Do not allow the brake caliper to hang from the brake flexible hose and or damage to the hose may occur.NOTE: Make sure the brake caliper guide pin bolts are clean and free of debris or a binding condition may occur.NOTE: Do not allow the brake flexible hose to get twisted when the caliper is repositioned on the brake caliper anchor plate or damage to the hose may occur.
Relocate and support the component.
- To install, tighten to 75 Nm (55 lb-ft).
- 7.NOTE: Make sure the caliper pin boots are correctly seated to prevent corrosion to the guide pins.
Visual check.
