Front Brake Flexible Hose: Removal
WARNING:
Before beginning any service procedure in this service information, refer to SAFETY WARNINGS
NOTE:
Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.
NOTE:
Do not allow grease, oil, brake fluid or other contaminants to contact the pad lining material, or damage to components may occur. Do not install contaminated pads.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. For additional information, REFER to Jacking and Lifting .

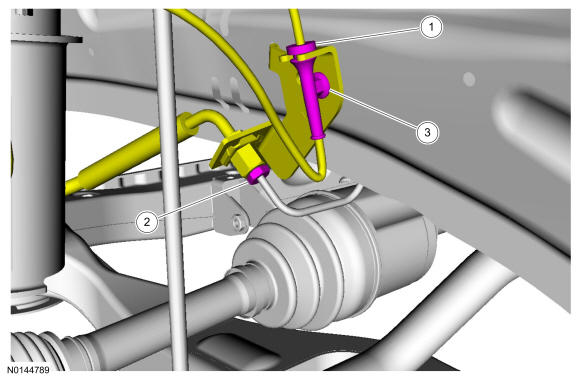

- 2.NOTE: Make sure to protect the brake pads from contamination from the brake fluid during the brake flexible hose installation and the brake caliper bleeding.
- To install, tighten the brake tube fiting to 17 Nm (150 lb-in).
- To install, tighten the brake flexible hose bracket bolt to 30 Nm (22 lb-ft).
- 3.

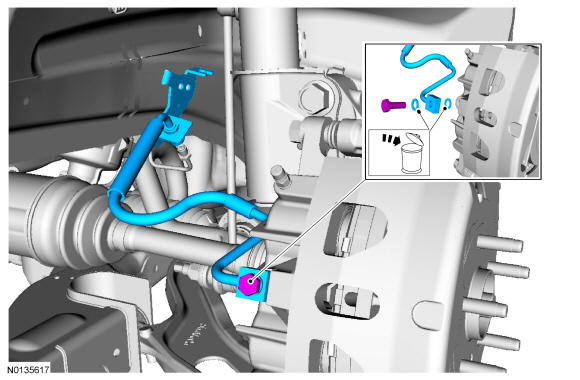

Discard the specified component. Follow local disposal regulations.- To install, tighten to 47 Nm (35 lb-ft).
