Connector End View (C4347) - ACTIVE TORQUE CONTROL COUPLING (ATCC) SOLENOID

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CCF21 (VT-WH)

20

CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE INTELLIGENT TORQUE CONTROL COUPLING SOLENOID

2

RCF21 (WH-VT)

20

CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE INTELLIGENT TORQUE CONTROL COUPLING SOLENOID

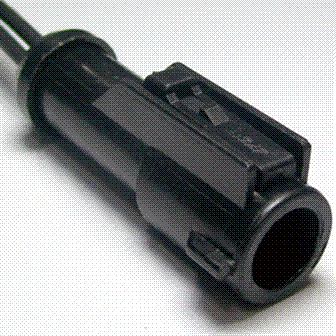

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1254

Courtesy of FORD MOTOR COMPANY

Service Part Number:

1U2Z-14S411-BSB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses

A/C Compressor Clutch

Capacitor - Ignition/Radio

Connector - Inline

Lamp - Fog/Driving

Motor - Trunk Striker

Sensor - Knock

Sensor - Speed

Solenoid - Canister Vent

Solenoid - Torque Control Coupling
