Rear Brake Caliper Anchor Plate: Removal
WARNING:
Before beginning any service procedure in this service information, refer to SAFETY WARNINGS
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the brake pads. For additional information, refer to Brake Pads .
- 2.

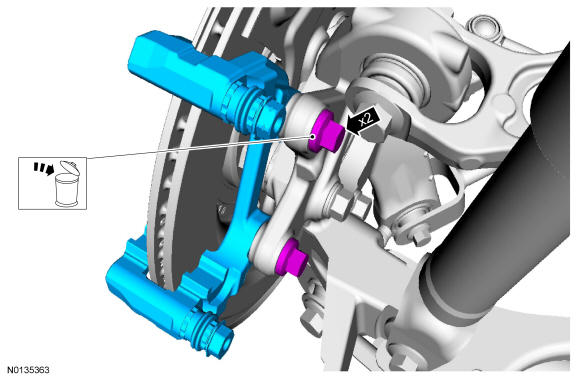

Discard the specified component. Follow local disposal regulations.- To install, tighten to 103 Nm (76 lb-ft).
