Lower Arm: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

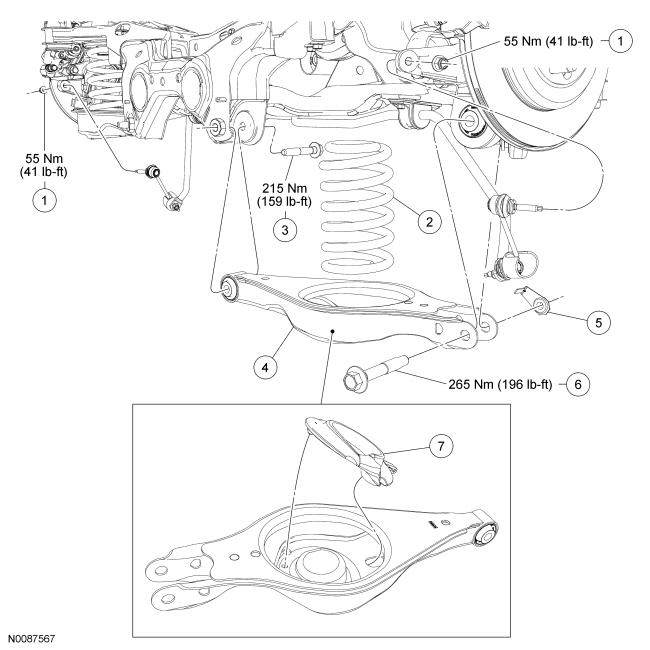

Exploded View
NOTE:
FWD vehicle shown in illustration, AWD vehicle similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W520213 | Stabilizer bar link upper nuts (2 required) |
| 2 | 5560 | Spring |
| 3 | W715127 | Lower arm-to-subframe bolt |
| 4 | 5B530 | Lower arm |
| 5 | W713940 | Lower arm-to-knuckle nut |
| 6 | W715127 | Lower arm-to-knuckle bolt |
| 7 | 5599 | Spring lower seat |
