Trailing Arm: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

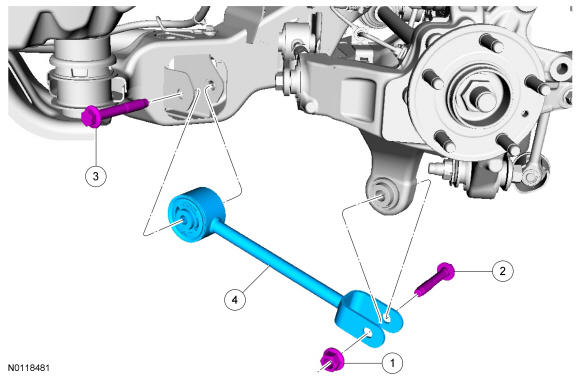

Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | W520516 | Trailing arm-to-wheel knuckle nut |
| 2 | W715419 | Trailing arm-to-wheel knuckle bolt |
| 3 | W715419 | subframe bolt |
| 4 | 5B674 | Trailing arm |
