Connector End View (C4357) - VIDEO CAMERA
Connector: C4357
Description
VIDEO CAMERA
Color
BK
Harness
PIA
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CBP34 (*) |
* |
FUSE - 34 OR CIRCUIT BREAKER |
|
|
2 |
VDN03 (*) |
* |
CTRL MOD. - LIN BUS # SPDJB 3 |
|
|
3 |
RMP19 (*) |
* |
CAMERA - PARKING AID REAR VIDEO - |
|
|
4 |
VMP19 (*) |
* |
CAMERA - PARKING AID REAR VIDEO + |
|
|
5 |
GD349 (*) |
* |
GROUND - PILLAR D LEFT |
|
|
6 |
DMP19 (*) |
* |
CAMERA - PARKING AID REAR VIDEO |
|

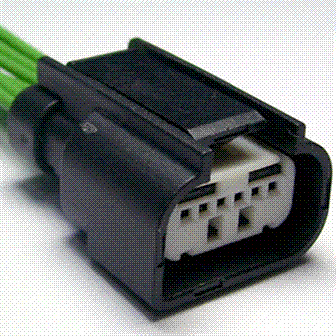

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1280 |
Service Part Number: CU2Z-14S411-AEA Gauge: 20 Pin material: Silver Cavities: 6 Vehicle Uses Camera - Reverse Park Aid |
