Shock Absorber: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

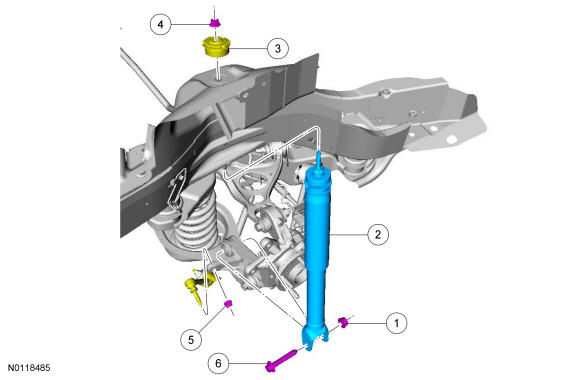

Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Shock absorber lower nut (part of 18080) |
| 2 | 18080 | Shock absorber |
| 3 | 18197 | Shock absorber upper insulator |
| 4 | - | Shock absorber upper nut (part of 18197) |
| 5 | W520213 | Stabilizer bar link upper nut |
| 6 | W714033 | Shock absorber lower bolt |
