Shock Absorber: Removal

NOTE: Suspension fasteners are critical parts that affect performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1.

Remove and discard the shock absorber upper insulator and nut.
- 1.

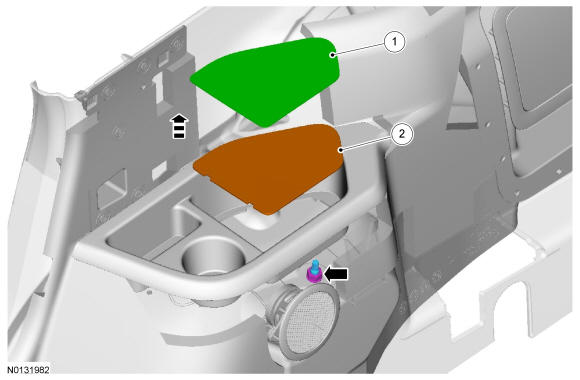

  NOTE: RH side shown in illustration, LH similar.

  Remove the storage area rubber mat.
- 2.

  Remove the access cover.
- 3.

  Remove and discard the shock absorber upper insulator and nut.

GFD33706

Courtesy of FORD MOTOR COMPANY

2.

Remove the wheel and tire. REFER to Wheels and Tires

3.

NOTE: Use the hex-holding feature to prevent the stabilizer bar link stud from turning while removing the nut.

Remove and discard the stabilizer bar link upper nut and disconnect the link from the bar.

4.

Remove and discard the shock absorber lower bolt and remove the shock absorber.
