Stabilizer Bar: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Exploded View

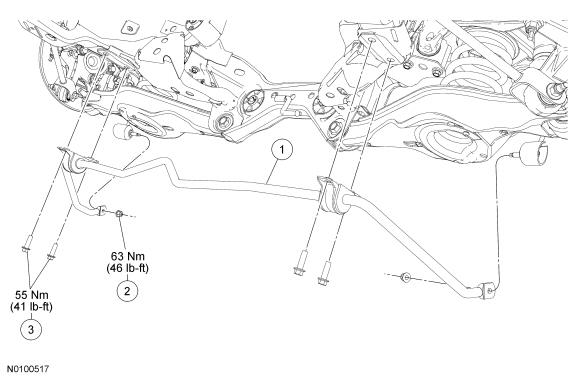

Fig 1: Exploded View Of Stabilizer Bar With Torque Specifications
GFD33708Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 5A771 Stabilizer bar
2 W520213 Stabilizer bar link lower nut (2 required)
3 W505274 Stabilizer bar bracket bolts (4 required)

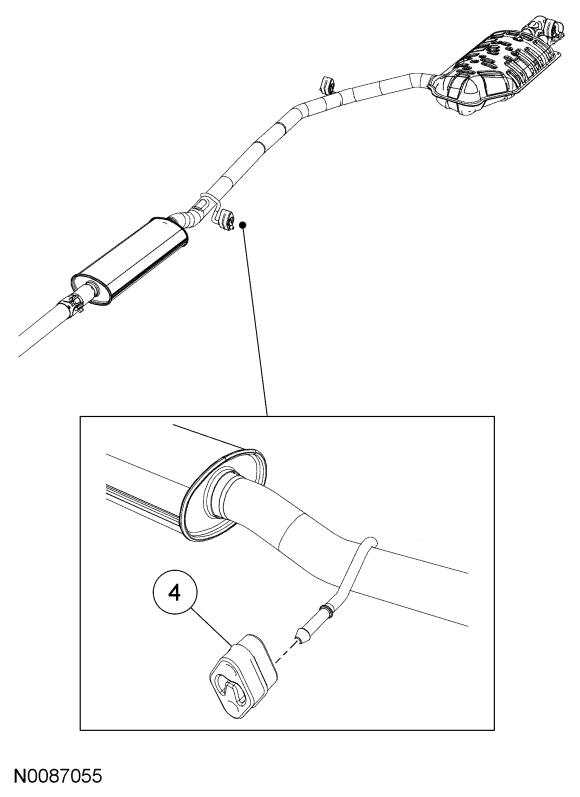

GFD33709Courtesy of FORD MOTOR COMPANY
Item Part Number Description
4 5F262 Muffler and tail pipe isolator (2 required)
