Stabilizer Bar Link: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

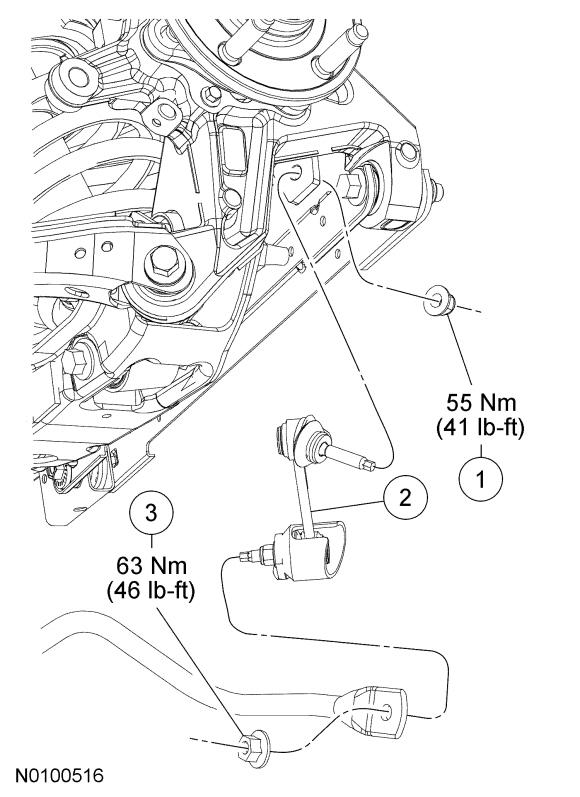

Exploded View
Courtesy of FORD MOTOR COMPANY| Item | Part Number | Description |
|---|---|---|
| 1 | W520213 | Stabilizer bar link upper nut |
| 2 | 5D498 LH/ 5C486 RH LH/ 5C486 RH | Stabilizer bar link |
| 3 | W520213 | Stabilizer bar link lower nut |
