Toe Link: Removal
NOTE:
Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
- 1.

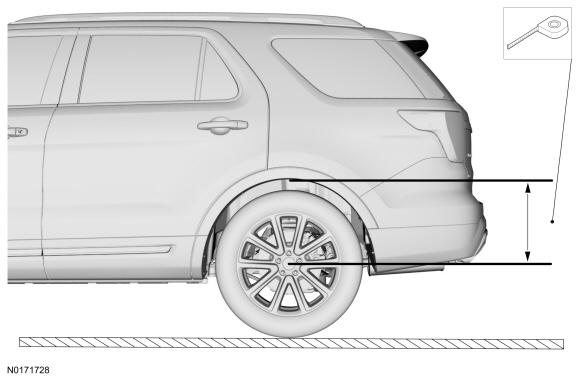

Measure the distance from the center of the wheel hub to the lip of the fender with the vehicle in a level, static ground position (ride height).
- 2.
Remove the wheel and tire. REFER to Wheels and Tires
- 4.
- 1.

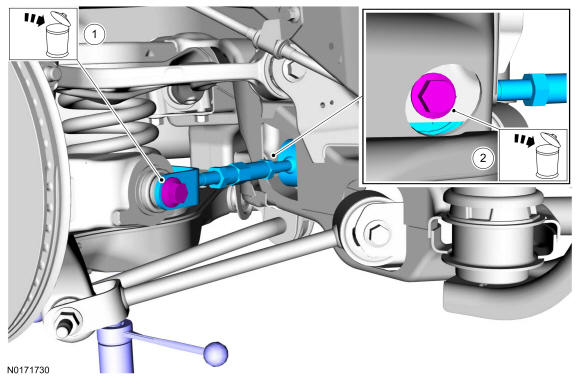

Remove and discard the toe link-to-wheel knuckle bolt and nut.
- 2.
Remove and discard the toe link-to-subframe bolt and remove the toe link.
- 1.
