Wheel Bearing and Wheel Hub - All Wheel Drive (AWD): Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .
SPECIAL TOOL(S)

GFD33689Courtesy of FORD MOTOR COMPANY
Remover, Front Wheel Hub 205-D070D93P-1175-B

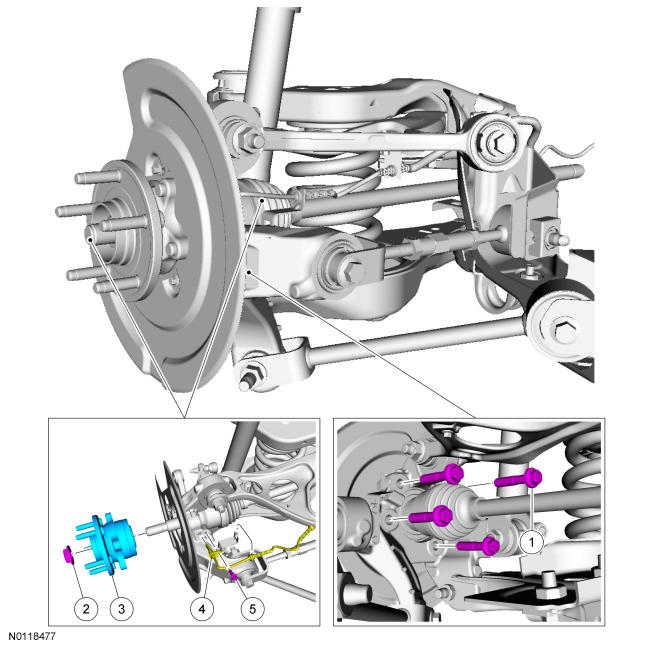

Exploded View

GFD33716Courtesy of FORD MOTOR COMPANY
Item Service Part Number Description Tool Number Material Name Notes
1 W714516 Wheel bearing and wheel hub bolt (4 required) - - 165 Nm (122 lb-ft)
2 W712435 Wheel hub nut - - 350 Nm (258 lb-ft)
3 1104 Wheel bearing and wheel hub - -
4 2C190 Wheel speed sensor - -
5 W505255 Wheel speed sensor bolt - - 15 Nm (133 lb-in)
