Wheel Bearing and Wheel Hub - Front Wheel Drive (FWD): Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

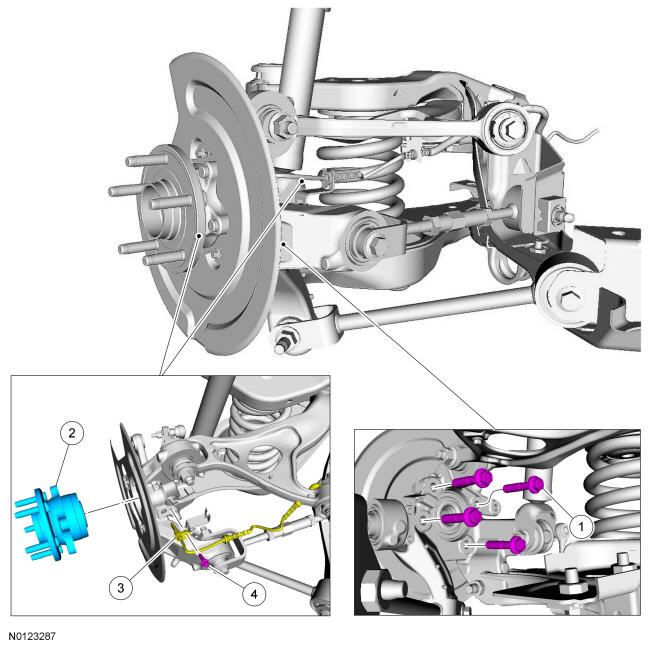

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W714516 | Wheel bearing and wheel hub bolt (4 required) | - | - | 165 Nm (122 lb-ft) |
| 2 | 1104 | Wheel bearing and wheel hub | - | - | |
| 3 | 2C190 | Wheel speed sensor | - | - | |
| 4 | W505255 | Wheel speed sensor bolt | - | - | 15 Nm (133 lb-in) |
