Wheel Knuckle - All Wheel Drive (AWD): Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

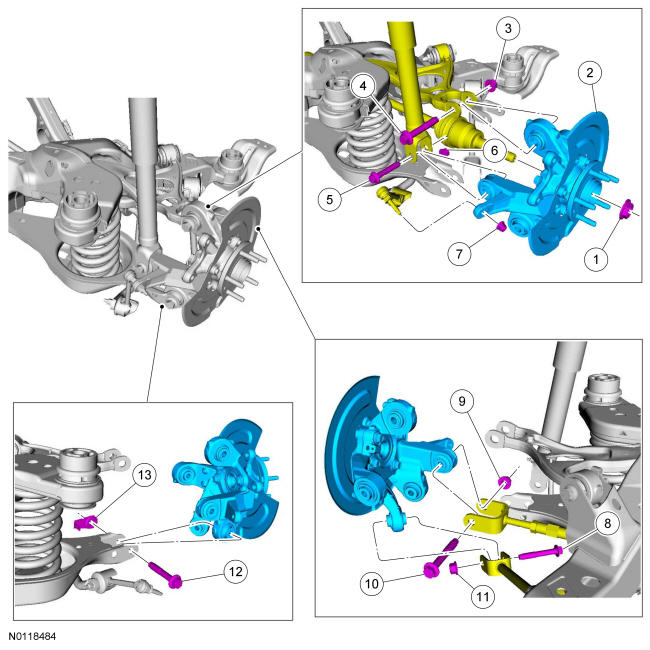

Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | W712435 | Wheel hub nut |
| 2 | 5B758 LH/ 5B759 RH LH/ 5B759 RH | Wheel knuckle |
| 3 | W520517 | Upper arm-to-wheel knuckle nut |
| 4 | W715127 | Upper arm-to-wheel knuckle bolt |
| 5 | W714033 | Shock absorber lower bolt |
| 6 | - | Shock absorber lower nut (part of 18080) |
| 7 | W520213 | Stabilizer bar link upper nut |
| 8 | W715419 | Trailing arm-to-wheel knuckle bolt |
| 9 | W520516 | Toe link-to-wheel knuckle nut |
| 10 | W715419 | Toe link-to-wheel knuckle bolt |
| 11 | W520516 | Trailing arm-to-wheel knuckle nut |
| 12 | W715127 | Lower arm-to-wheel knuckle bolt |
| 13 | W713940 | Lower arm-to-wheel knuckle nut |

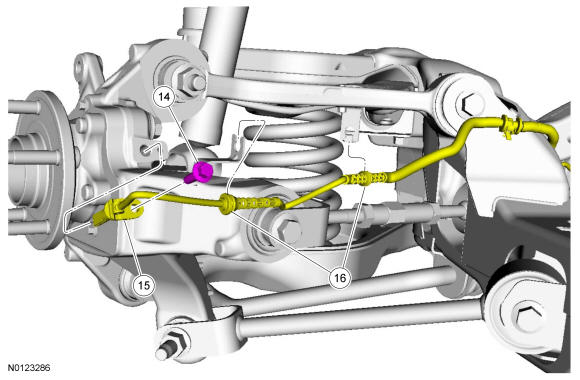

| Item | Part Number | Description |
|---|---|---|
| 14 | W707722 | Wheel speed sensor bolt |
| 15 | 2C190 | Wheel speed sensor |
| 16 | - | Wheel speed sensor harness clips (part of 2C190) (2 required) |
