Wheel Studs: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
SPECIAL TOOL(S)
| C-Frame And Screw 211-023 (T74P-3044-A1) |

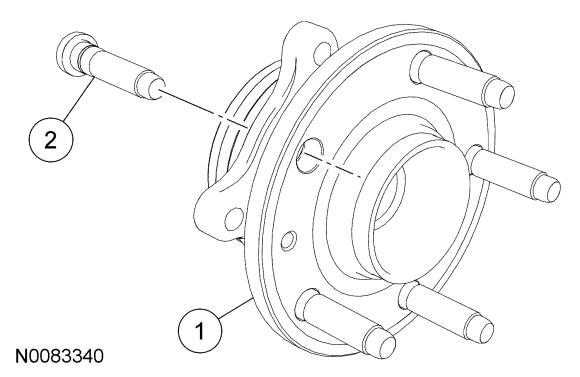

Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 1104 | Wheel bearing and wheel hub |
| 2 | 1107 | Wheel Stud (5 required) |
