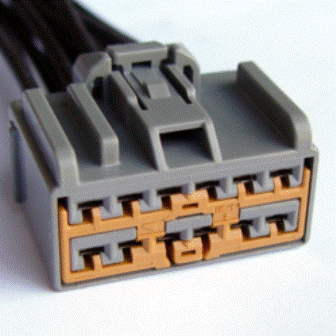

Connector End View (C330) - SEAT CONTROL SWITCH, PASSENGER SIDE FRONT
Connector: C330
Description
SEAT CONTROL SWITCH, PASSENGER SIDE FRONT
Color
GY
Harness
14D230
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CPS36 (YE-GY) |
16 |
SWITCH - SEAT ADJUST. FRONT PASSENGER REAR HEIGHT DOWN |
|
|
2 |
CPS34 (GY-BU) |
16 |
SWITCH - SEAT ADJUST. FRONT PASSENGER FRONT HEIGHT (TILT) DOWN |
|
|
3 |
GD903 (BK-WH) |
14 |
GROUND - PILLAR C OR QUARTER PANEL RIGHT |
|
|
4 |
CPS33 (WH) |
16 |
SWITCH - SEAT ADJUST. FRONT PASSENGER FORWARD |
|
|
5 |
CBX05 (VT-RD) |
14 |
FUSE - 42 OR CIRCUIT BREAKER |
|
|
6 |
CPS35 (VT-GN) |
16 |
SWITCH - SEAT ADJUST. FRONT PASSENGER FRONT HEIGHT (TILT) UP |
|
|
7 |
CPS21 (WH-OG) |
20 |
SWITCH - PASSENGER LUMBAR INFLATE |
|
|
8 |
CPS40 (VT-GY) |
16 |
SWITCH - SEAT ADJUST. FRONT PASSENGER RECLINE REARWARD |
|
|
9 |
CPS38 (GN-BU) |
16 |
SWITCH - SEAT ADJUST. FRONT PASSENGER REARWARD |
|
|
10 |
CPS20 (VT) |
20 |
SWITCH - PASSENGER LUMBAR DEFLATE |
|
|
11 |
CPS39 (GY-YE) |
16 |
SWITCH - SEAT ADJUST. FRONT PASSENGER RECLINE FORWARD |
|
|
12 |
CPS37 (WH-BU) |
16 |
SWITCH - SEAT ADJUST. FRONT PASSENGER REAR HEIGHT UP |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-396 |
Service Part Number: 3U2Z-14S411-BKA Gauge: 12 Pin material: Tin Cavities: 12 Vehicle Uses Module - Liftgate Switch - Headlamp Switch - Seat (driver) Switch - Seat (passenger) |
