Connector End View (C340) - Inline
Inline C340
Description
Inline
Color
Base Part #
Service Pigtail
Not Available

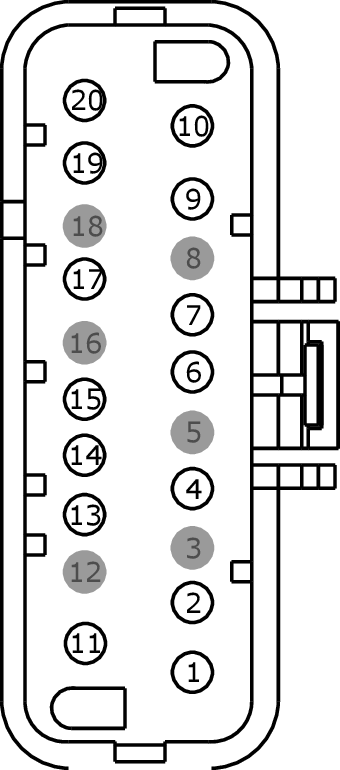

MALE
Harness 14D230

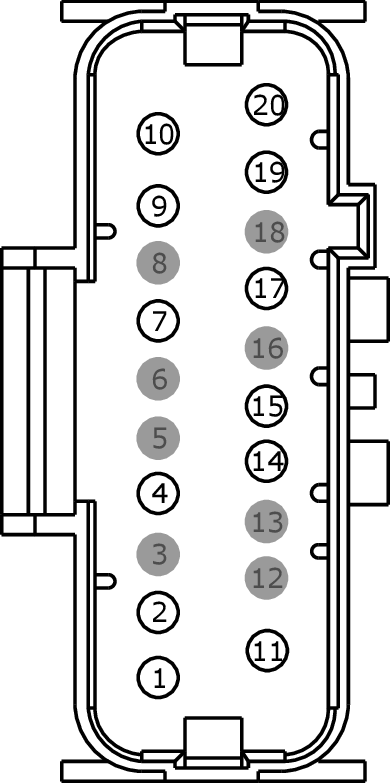

FEMALE
Harness 14D232
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
CPS40 (VT-GY) |
16 |
14D230 |
|
2 |
CPS20 (VT) |
20 |
14D230 |
|
3 |
* |
* |
|
|
4 |
CHS01 (GY-VT) |
16 |
14D230 - with heated seats |
|
4 |
CHS06 (BU-BN) |
14 |
14D230 - with climate controlled seats |
|
5 |
* |
* |
|
|
6 |
* |
* |
14D230 |
|
7 |
RHS20 (GN-BU) |
18 |
14D230 |
|
8 |
* |
* |
|
|
9 |
RHS08 (VT-WH) |
16 |
14D230 |
|
10 |
RHS06 (WH) |
14 |
14D230 |
|
11 |
CHS08 (BN-YE) |
16 |
14D230 |
|
12 |
* |
* |
|
|
13 |
* |
* |
14D230 |
|
14 |
VHS36 (YE-BU) |
18 |
14D230 |
|
15 |
VHS21 (BU-WH) |
18 |
14D230 |
|
16 |
* |
* |
|
|
17 |
GD903 (BK-WH) |
14 |
14D230 |
|
18 |
* |
* |
14D230 |
|
19 |
CPS39 (GY-YE) |
16 |
14D230 |
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
CPS08 (VT-OG) |
16 |
14D232 |
|
2 |
CPS18 (BN-GN) |
18 |
14D232 |
|
3 |
* |
* |
|
|
4 |
CHS01 (GY-VT) |
16 |
14D232 |
|
5 |
* |
* |
|
|
6 |
VPS12 (GY-OG) |
20 |
14D232 |
|
7 |
RHS15 (GY-BN) |
20 |
14D232 |
|
8 |
* |
* |
|
|
9 |
RHS03 (GY-OG) |
16 |
14D232 |
|
10 |
RHS01 (WH-VT) |
16 |
14D232 |
|
11 |
CHS03 (GN-BN) |
16 |
14D232 |
|
12 |
* |
* |
|
|
13 |
RPS13 (GN-OG) |
20 |
14D232 |
|
14 |
VHS35 (VT-OG) |
20 |
14D232 |
|
15 |
VHS16 (BU-GN) |
20 |
14D232 |
|
16 |
* |
* |
|
|
17 |
GD904 (BK-BU) |
16 |
14D232 |
|
19 |
CPS07 (GY-BN) |
16 |
14D232 |
