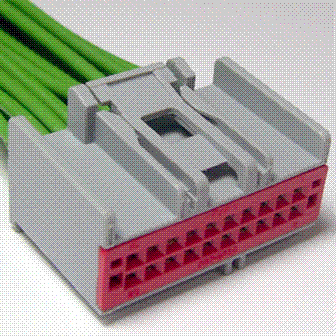

Connector End View (C341D) - DRIVER SEAT MODULE (DSM)
Connector: C341D
Description
DRIVER SEAT MODULE (DSM)
Color
GY
Harness
14D231
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
LPM30 (GY-VT) |
20 |
CTRL MOD. - SENSORS MIRROR POSITION FEED |
|
|
2 |
CPM26 (WH) |
18 |
CTRL MOD. - LEFT MIRROR COMMON RETURN |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
CPM29 (GN) |
18 |
CTRL MOD. - LEFT MIRROR VERTICAL |
|
|
5 |
CPM28 (BU-BN) |
18 |
CTRL MOD. - LEFT MIRROR HORIZONTAL |
|
|
6 |
CPM33 (WH-VT) |
18 |
CTRL MOD. - RIGHT MIRROR HORIZONTAL |
|
|
7 |
CPM34 (WH-BN) |
18 |
CTRL MOD. - RIGHT MIRROR VERTICAL |
|
|
8 |
CPM31 (YE-GY) |
18 |
CTRL MOD. - RIGHT MIRROR COMMON RETURN |
|
|
9 |
VDB07 (VT-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
|
10 |
VDB06 (GY-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
|
11 |
RPM30 (YE) |
20 |
CTRL MOD. - SENSORS MIRROR POSITION RETURN |
|
|
12 |
VPM36 (BN-YE) |
20 |
SENSOR - LEFT MIRROR POSITION # VERTICAL |
|
|
13 |
VPM35 (YE-BU) |
20 |
SENSOR - LEFT MIRROR POSITION # HORIZONTAL |
|
|
14 |
VPM38 (BN-GN) |
20 |
SENSOR - RIGHT MIRROR POSITION # VERTICAL |
|
|
15 |
VPM37 (BU-OG) |
20 |
SENSOR - RIGHT MIRROR POSITION # HORIZONTAL |
|
|
16 |
RPM11 (YE-OG) |
20 |
CTRL MOD. - SWITCH MIRROR RETURN |
|
|
17 |
CPM21 (YE-VT) |
20 |
SWITCH - POWER MIRROR # RIGHT MIRROR UPWARD (IF PLUS) |
|
|
18 |
CPM20 (BN-WH) |
20 |
SWITCH - POWER MIRROR # RIGHT MIRROR RIGHTWARD (IF PLUS) |
|
|
19 |
CPM17 (BU-GN) |
20 |
SWITCH - POWER MIRROR # LEFT MIRROR UPWARD (IF PLUS) |
|
|
20 |
CPM16 (BN-BU) |
20 |
SWITCH - POWER MIRROR # LEFT MIRROR RIGHTWARD (IF PLUS) |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1199 |
Service Part Number: 3U2Z-14S411-FCB Gauge: 18 Pin material: Silver Cavities: 20 Vehicle Uses Instrument Cluster Module - Seat Memory Monitor - Video/DVD Radio - Amplifier Switch - Heater A/C Blower (Rear) |
