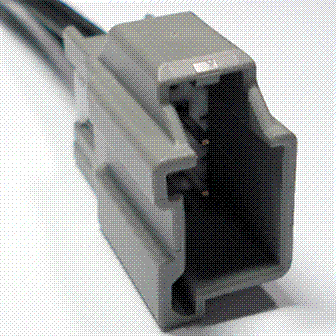

Connector End View (C364) - SEAT CUSHION HEATER MAT, LEFT FRONT

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CHS02 (YE-BU)

16

CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER

2

VHS26 (VT)

20

SENSOR - CUSHION TEMP. DRIVER

3

RHS05 (YE-VT)

20

CTRL MOD. - GENERIC VREF RETURN

4

CHS01 (GY-VT)

16

CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1076

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BUB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

4
