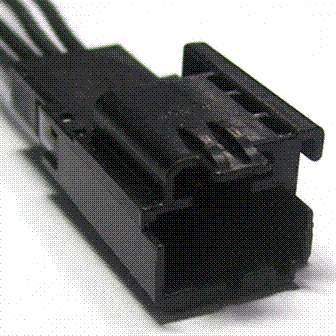

Connector End View (C457) - LIFTGATE LATCH
Connector: C457
Description
LIFTGATE LATCH
Color
Harness
14A583
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CPL84 (GN-BN) |
18 |
RELAY - LIFTGATE/DECKLID RELEASE |
|
|
2 |
GD349 (BK-GY) |
18 |
GROUND - PILLAR D LEFT |
|
|
3 |
GD349 (BK-GY) |
18 |
GROUND - PILLAR D LEFT |
|
|
4 |
CPL58 (GY-OG) |
22 |
SWITCH - LIFTGATE/DECKLID # GLASS AJAR |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1041 |
Service Part Number: 9U2Z-14S411-AJA Gauge: 18 Pin material: Tin Cavities: 4 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Switch - Deck Lid / Lift Gate Ajar |
