Connector End View (C476) - REAR WINDOW WIPER MOTOR
Connector: C476
Description
REAR WINDOW WIPER MOTOR
Color
Harness
14A583
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
SBB64 (VT-RD) |
18 |
FUSE - 64 OR CIRCUIT BREAKER |
|
|
2 |
CRW02 (GY-BU) |
18 |
CTRL MOD. - REAR WIPER |
|
|
3 |
GD349 (BK-GY) |
20 |
GROUND - PILLAR D LEFT |
|
Available Pigtail Kits |
|
|

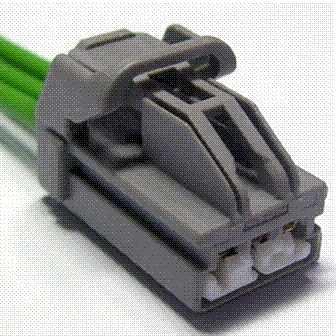

Pigtail Kit Part Number WPT-1147 |
Service Part Number: 3U2Z-14S411-BHAB Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses Motor - Rear Window Wiper Motor - Seat Recline Refrigerator |
