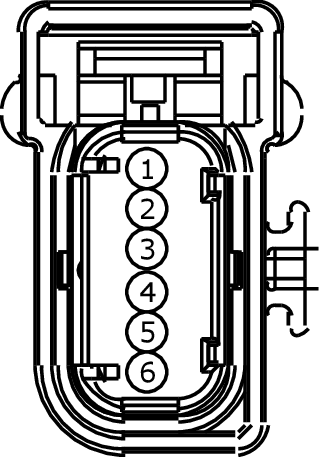

Connector End View (C500) - KEYLESS ENTRY KEYPAD
Connector: C500
Description
KEYLESS ENTRY KEYPAD
Color
Harness
14631
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
SBP21 (GY-RD) |
20 |
FUSE - 21 OR CIRCUIT BREAKER |
|
|
2 |
CPK28 (WH-GN) |
22 |
CTRL MOD. - SWITCH KEYLESS KEYPAD ILLUMINATION |
|
|
3 |
CPK29 (GY-BU) |
22 |
SWITCH - KEYLESS KEYPAD LINE A |
|
|
4 |
CPK30 (VT-GN) |
22 |
SWITCH - KEYLESS KEYPAD LINE B |
|
|
5 |
CPK31 (YE-GN) |
22 |
SWITCH - KEYLESS KEYPAD LINE C |
|
|
6 |
GD233 (BK) |
20 |
GROUND - COWL SIDE/PILLAR A LEFT |
|

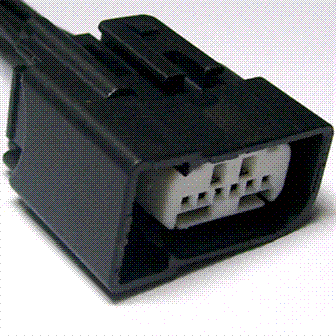

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1329 |
Service Part Number: DU2Z-14S411-EA Gauge: 20 Pin material: Tin Cavities: 6 Vehicle Uses Antenna - Keyless Entry Handle - Decklid Switch - Keyless Entry Switch - Seatbelt |
