Window Glass - Rear Quarter: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Special Tool(s)
| Air Gun AST405 | |
| Deluxe Air Knife 300-AST1770E |
Material
| Item | Specification |
| Dow Urethane Adhesive Betaseal™ Express | - |
| Dow Urethane One Step Glass Primer Betaprime™ 5500 / 5500A / 5500SA | - |
| Sika Urethane Adhesive Sika Tack ASAP | - |
| Sika Urethane Metal and Glass Primer Sika 206 G+P | - |
| Motorcraft ® Ultra-Clear Spray Glass Cleaner ZC-23 | ESR-M14P5-A |

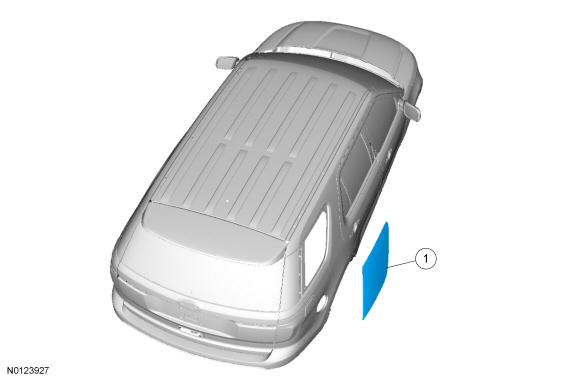

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 29700 RH 29701 LH | Rear quarter window glass | AST405, 300-AST1770E | Dow Urethane Adhesive Dow Urethane One Step Glass Primer Sika Urethane Adhesive Sika Urethane Metal and Glass Primer Motorcraft ® Ultra-Clear Spray Glass Cleaner | - |
