Connector End View (C601B) - EXTERIOR REAR VIEW MIRROR, PASSENGER SIDE
Connector: C601B
Description
EXTERIOR REAR VIEW MIRROR, PASSENGER SIDE
Color
BK
Harness
14630
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CPM34 (WH-BN) |
22 |
CTRL MOD. - RIGHT MIRROR VERTICAL |
|
|
2 |
CPM28 (BU-BN) |
18 |
CTRL MOD. - MIRROR COMMON RETURN |
without memory |
|
3 |
CLF07 (GY-OG) |
20 |
CTRL MOD. - CORNERING LAMP RIGHT |
|
|
4 |
CPM31 (YE-GY) |
22 |
CTRL MOD. - RIGHT MIRROR HORIZONTAL |
without memory |
|
5 |
CLN25 (VT) |
22 |
RELAY - PUDDLE LAMPS (KERB ILLUM.) |
|
|
6 |
CRD17 (GY) |
18 |
RELAY - HEATER MIRROR |
|
|
7 |
GD348 (BK-YE) |
18 |
GROUND - PILLAR C OR QUARTER PANEL RIGHT |
|
|
8 |
GD348 (BK-YE) |
20 |
GROUND - PILLAR C OR QUARTER PANEL RIGHT |
|
|
9 |
CAP12 (VT-OG) |
18 |
POLICE - FLASHER REAR |
police |
|
10 |
CAP06 (GY-OG) |
20 |
POLICE - WIGWAG SYNC |
police |
|
11 |
CAP14 (GY-BN) |
20 |
POLICE - BUTTON FUNCTION 1 |
police |
|
12 |
GD348 (BK-YE) |
18 |
GROUND - PILLAR C OR QUARTER PANEL RIGHT |
base, police |
|
13 |
CRB02 (BU-BN) |
22 |
SENSOR - BLINDSPOT WARNING RIGHT HAND # WARNING ALERT |
|
|
14 |
CPM02 (BU) |
22 |
CTRL MOD. - FOLD MIRRORS FOLD POSITION |
|
|
15 |
* |
* |
Not Used |
|
|
16 |
CPM01 (YE-GN) |
22 |
CTRL MOD. - FOLD MIRRORS DRIVE POSITION |
|

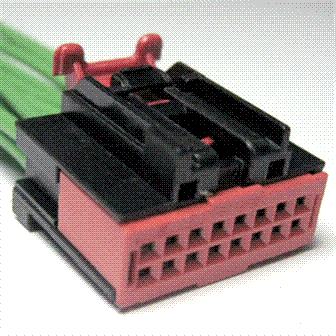

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1152 |
Service Part Number: 3U2Z-14S411-AJD Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses Mirror - Sideview Mirror - Vanity Overhead Console -Inline (Female) Switch - Multifunction |
