Connector End View (C612A) - SPEAKER, RIGHT FRONT
Connector: C612A
Description
SPEAKER, RIGHT FRONT
Color
GY
Harness
14630
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VME10 (WH-VT) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
RME10 (WH-OG) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) |
Sony |
|

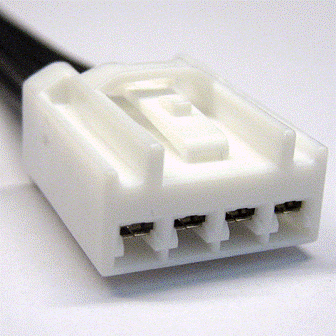

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-912 |
Service Part Number: 8U2Z-14S411-HA Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses Sensor - Oil Temperature Sensor - Power Steering Pressure Sensor - Purge Flow Switch - Gear Shift Select/Neutral Safety |
