Connector End View (C644) - SIDE IMPACT SENSOR, PASSENGER FRONT DOOR

Connector: C644

Description

SIDE IMPACT SENSOR, PASSENGER FRONT DOOR

Color

Harness

14630

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VR218 (YE-OG)	18	SENSOR - SIDE IMPACT FRONT PASSENGER FRONT DOOR FEED
2	RR132 (BU-WH)	18	CTRL MOD. - SENSOR SIDE IMPACT PASSENGER FRONT DOOR RTN

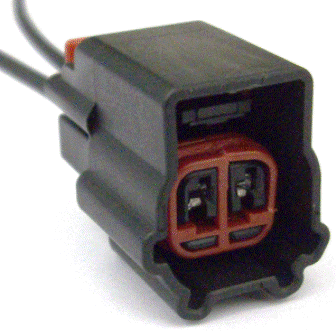

Available Pigtail Kits

Pigtail Kit Part Number

WPT-948

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EKB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Motor - Windshield Washer Fluid Pump

Sensor - Side Impact
