Connector End View (C805) - DOOR LATCH, RIGHT REAR
Connector: C805
Description
DOOR LATCH, RIGHT REAR
Color
BK
Harness
14632
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
* |
* |
Not Used |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
CPL52 (VT-GY) |
18 |
CTRL MOD. - DOOR LOCK - PASSENGER DOORS UNLOCK (ALL EXCLUDING DRIVER) |
|
|
4 |
CPL11 (GY-BN) |
18 |
CTRL MOD. - DOOR LOCK # ALL LOCK |
|
|
5 |
CPL39 (YE) |
18 |
SWITCH - LATCH REAR PASSENGER SIDE # AJAR |
|
|
6 |
GD348 (BK-YE) |
18 |
GROUND - PILLAR C OR QUARTER PANEL RIGHT |
|
Available Pigtail Kits |
|
|

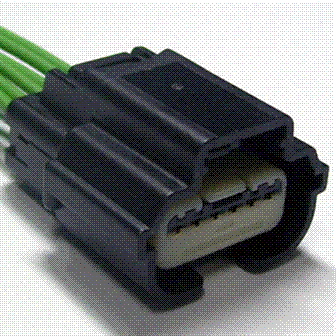

Pigtail Kit Part Number WPT-1338 |
Service Part Number: 9U2Z-14S411-BB Gauge: 20 Pin material: Silver Cavities: 6 Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Module - Occupant Classification Sensor - Acceleration Pedal Position Sensor - Transmission Range Switch - Door Ajar / Interior Lamp |
|

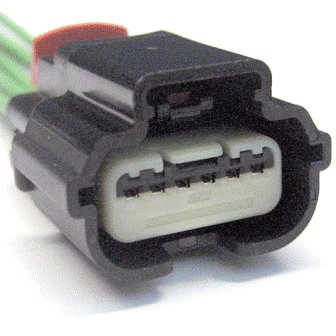

Pigtail Kit Part Number WPT-929 |
Service Part Number: 9U2Z-14S411-BA Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Sensor - Acceleration Pedal Position Switch - Door Ajar / Interior Lamp |
