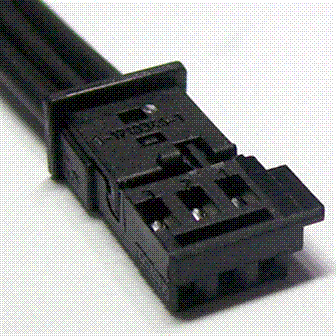

Connector End View (C914) - RAIN SENSOR MODULE
Connector: C914
Description
RAIN SENSOR MODULE
Color
Harness
18D695
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CBB45 (YE) |
* |
FUSE - 45 OR CIRCUIT BREAKER |
|
|
2 |
VDN05 (YE-GY) |
* |
CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 |
|
|
3 |
GD233 (BK) |
* |
GROUND - COWL SIDE/PILLAR A LEFT |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1096 |
Service Part Number: AU2Z-14S411-ZA Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Sensor - Rain |
