Generator - 2.0L GTDI: Removal
- 1.
Remove the A/C drive belt. REFER to Accessory Drive .
- 2.
Remove the Accessory drive belt. REFER to Accessory Drive .
- 3.
Disconnect the 2 A/C compressor electrical connectors.- Detach the wiring harness retainer from the A/C tube stud bolt.
- 5.
Remove the A/C compressor nut, stud and the 2 bolts.- Position the A/C compressor aside and support with a length of mechanics wire.
- 6.

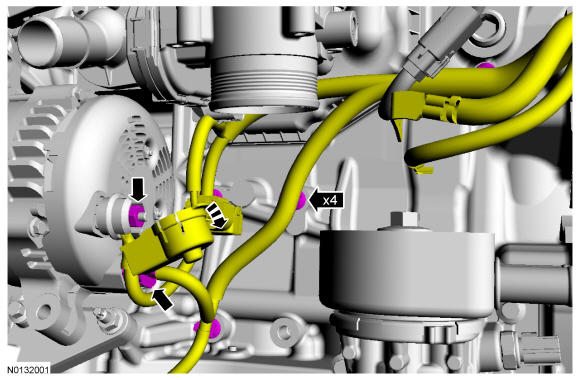

Position the generator cap aside and remove the nut and wire terminal.- Disconnect the wire harness electrical connector.
- Detach the 4 wiring harness retainers from the engine.
- 8.

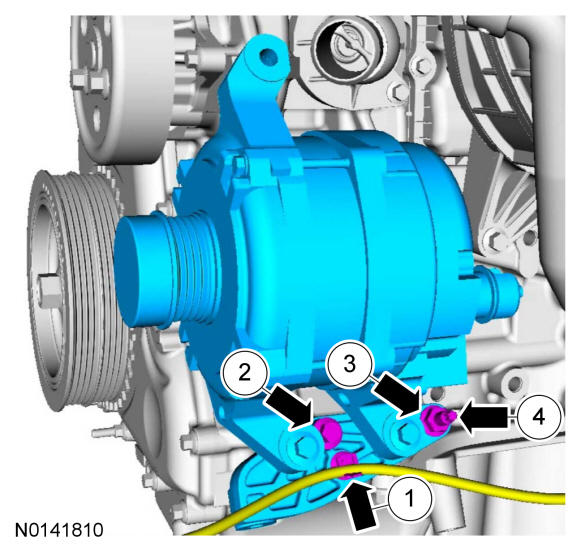

- 1.
Remove the generator bracket lower bolt.
- 2.
Remove the generator bracket upper bolt.
- 3.
Remove the generator bracket nut.
- 4.
Remove the generator bracket stud.
- 1.

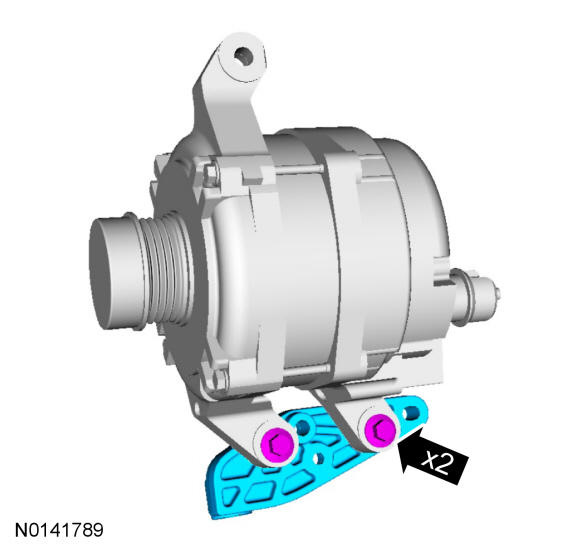

- 9.NOTE: This step is only necessary when installing a new component.
Remove the generator bracket bolts.
