Climate Controlled Seats System

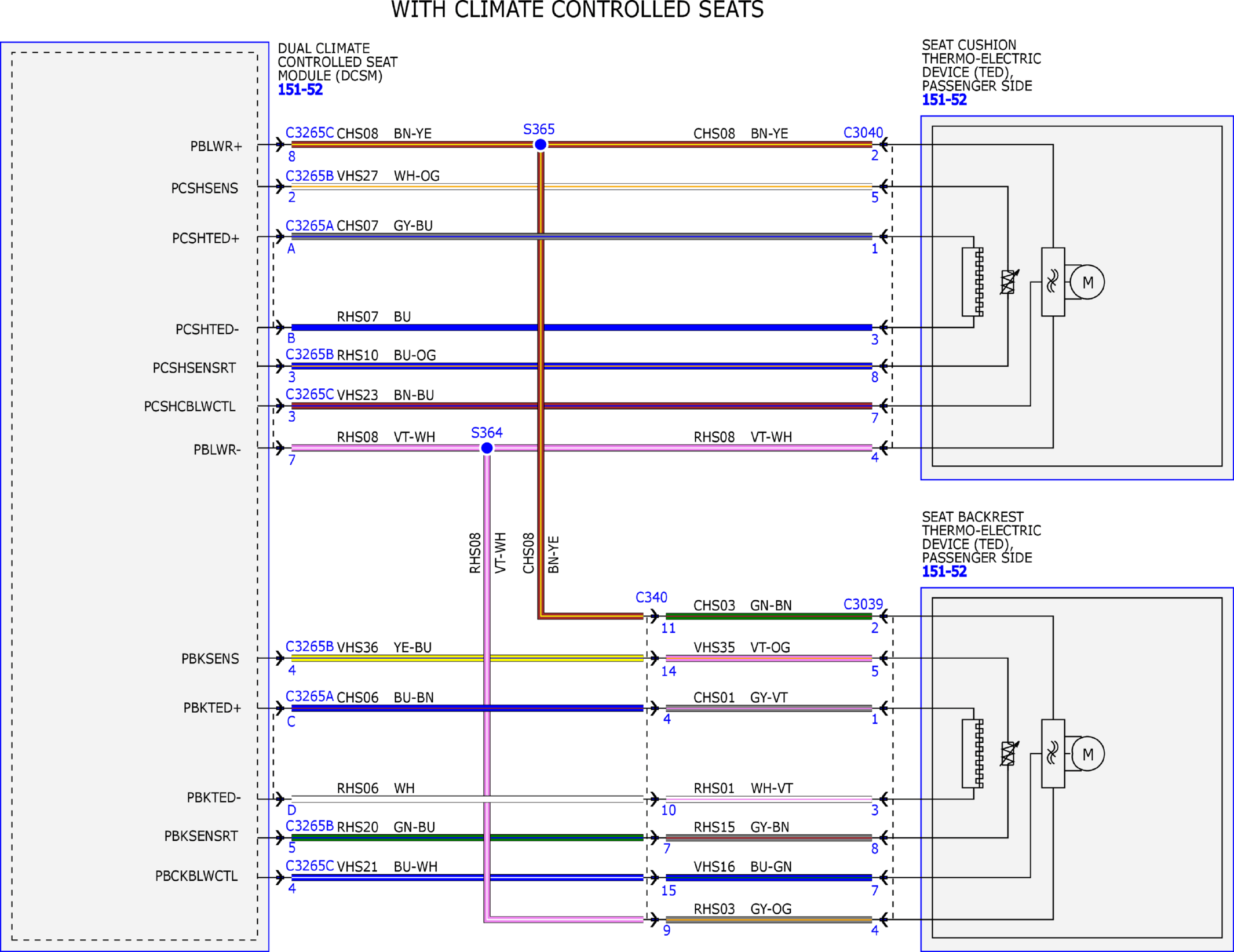

Fig 1: Climate Controlled Seats System Wiring Diagrams (1 Of 8)

Courtesy of FORD MOTOR COMPANY

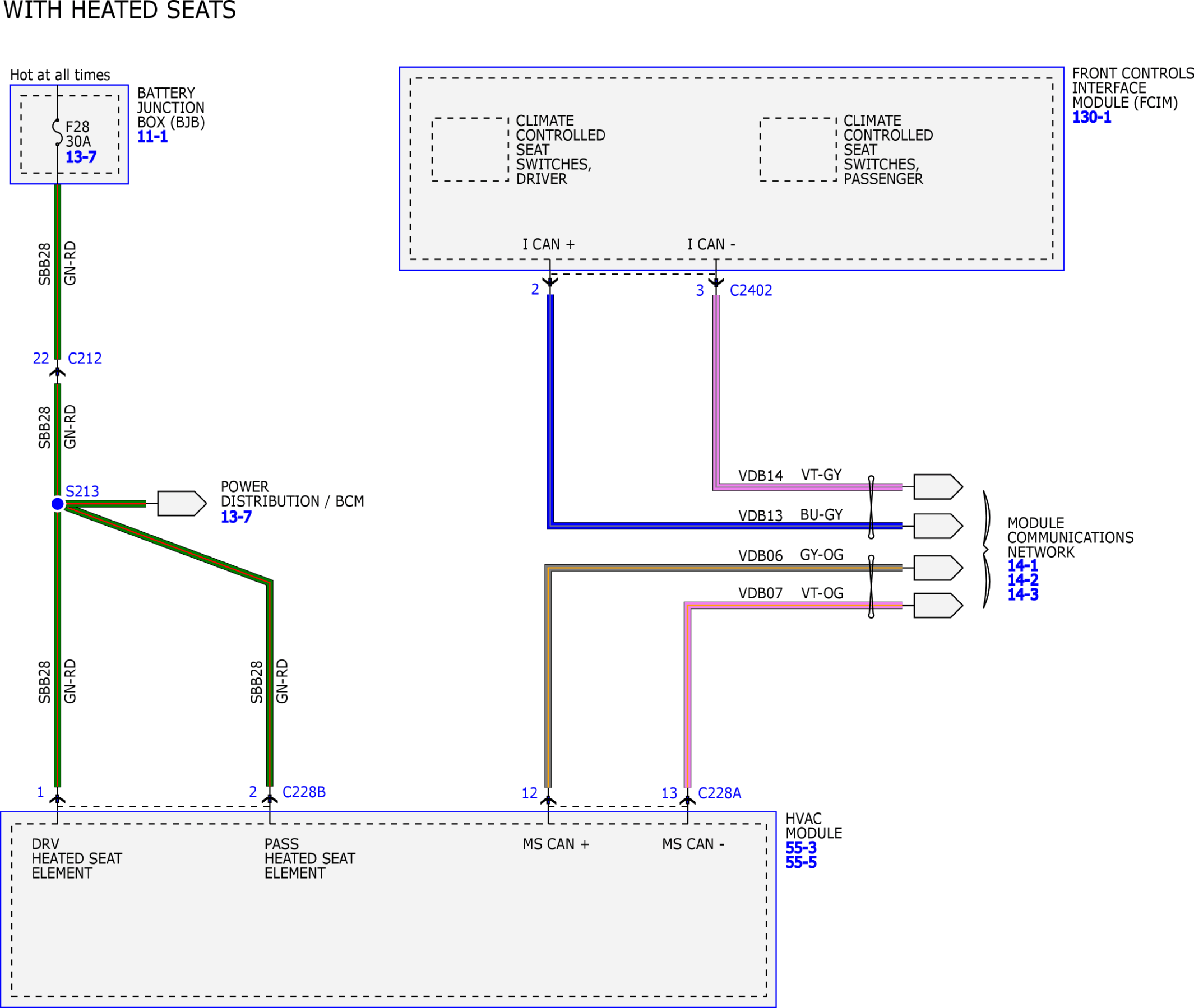

Fig 2: Climate Controlled Seats System Wiring Diagrams (2 Of 8)

Courtesy of FORD MOTOR COMPANY

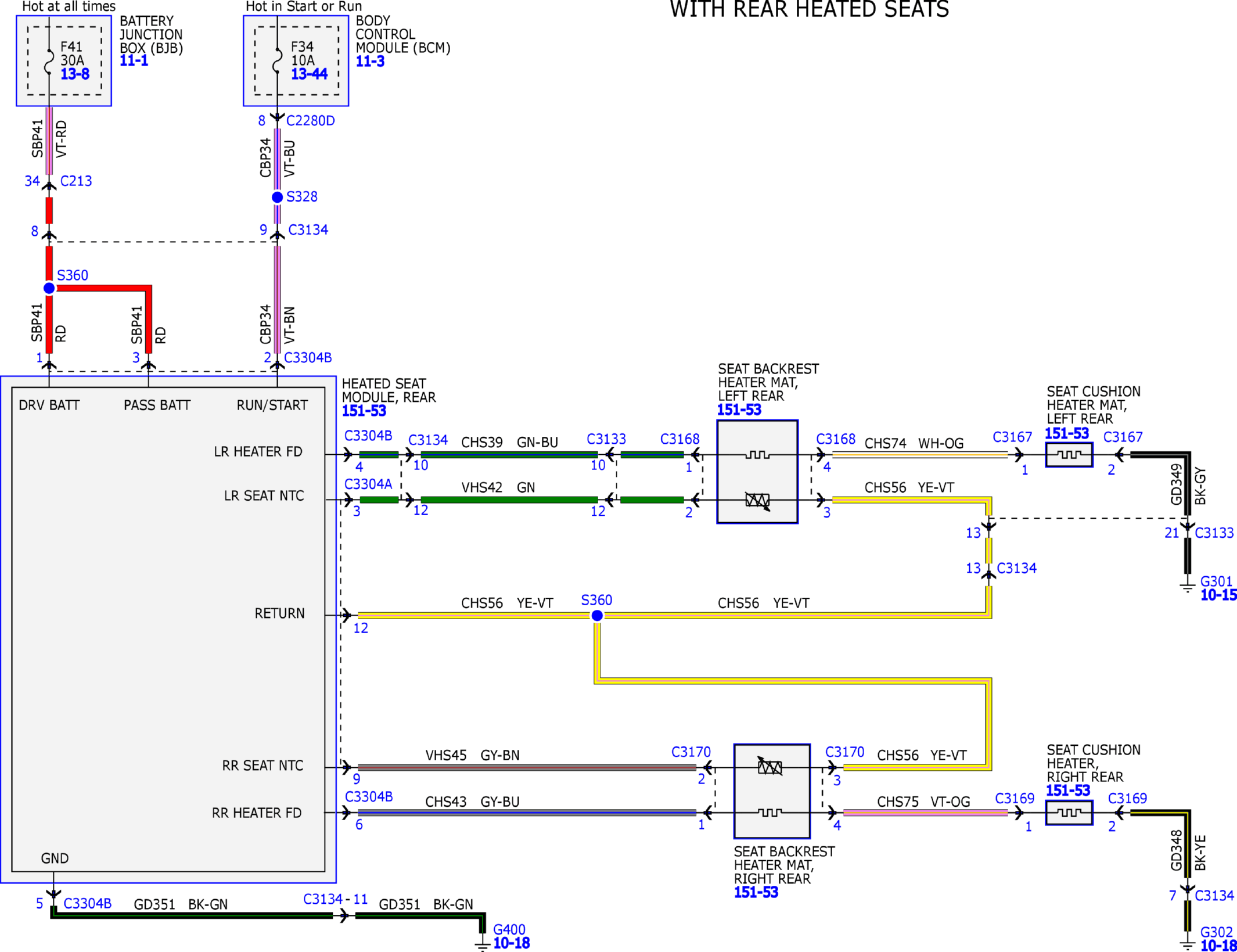

Fig 3: Climate Controlled Seats System Wiring Diagrams (3 Of 8)

Courtesy of FORD MOTOR COMPANY

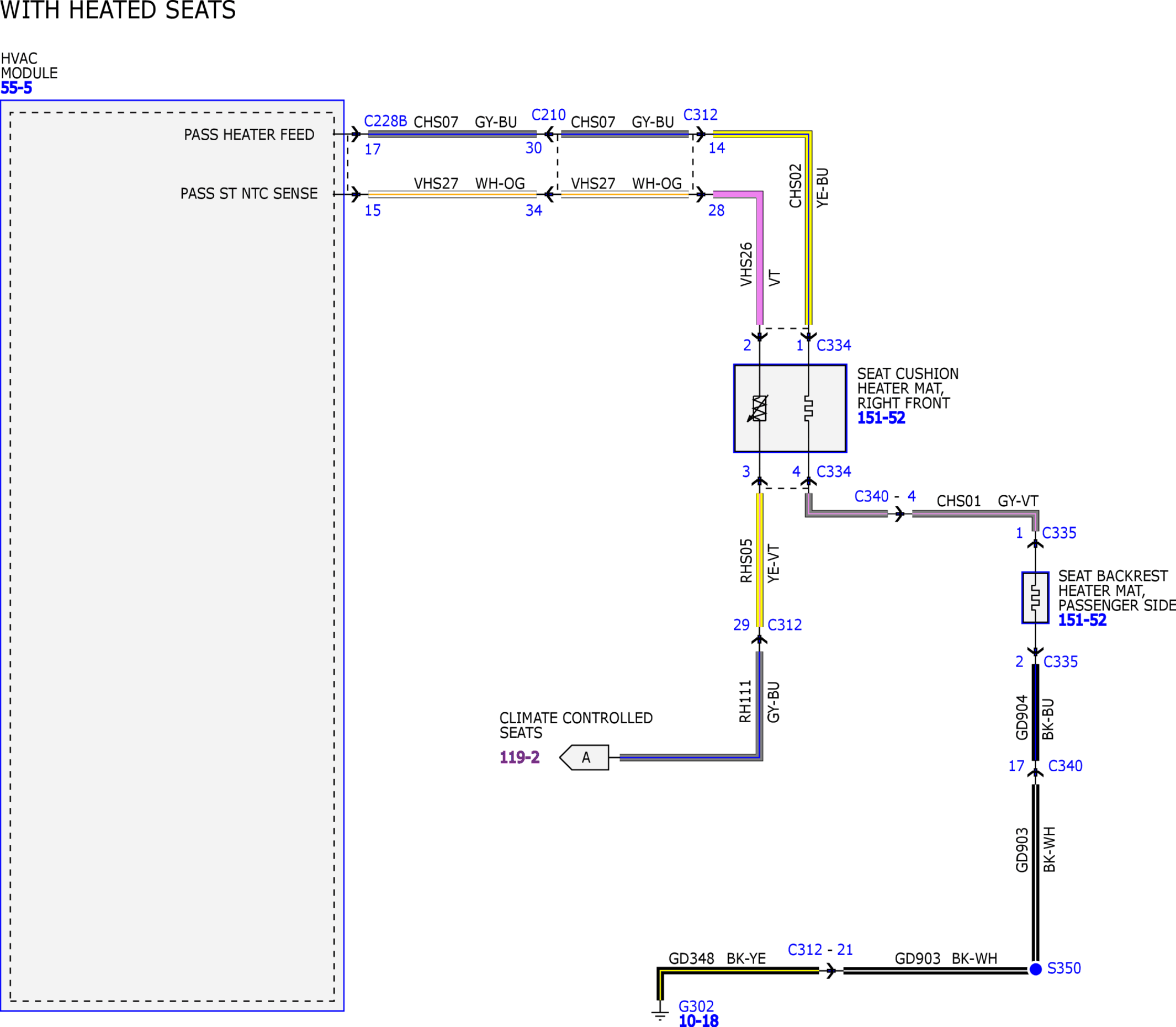

Fig 4: Climate Controlled Seats System Wiring Diagrams (4 Of 8)

Courtesy of FORD MOTOR COMPANY

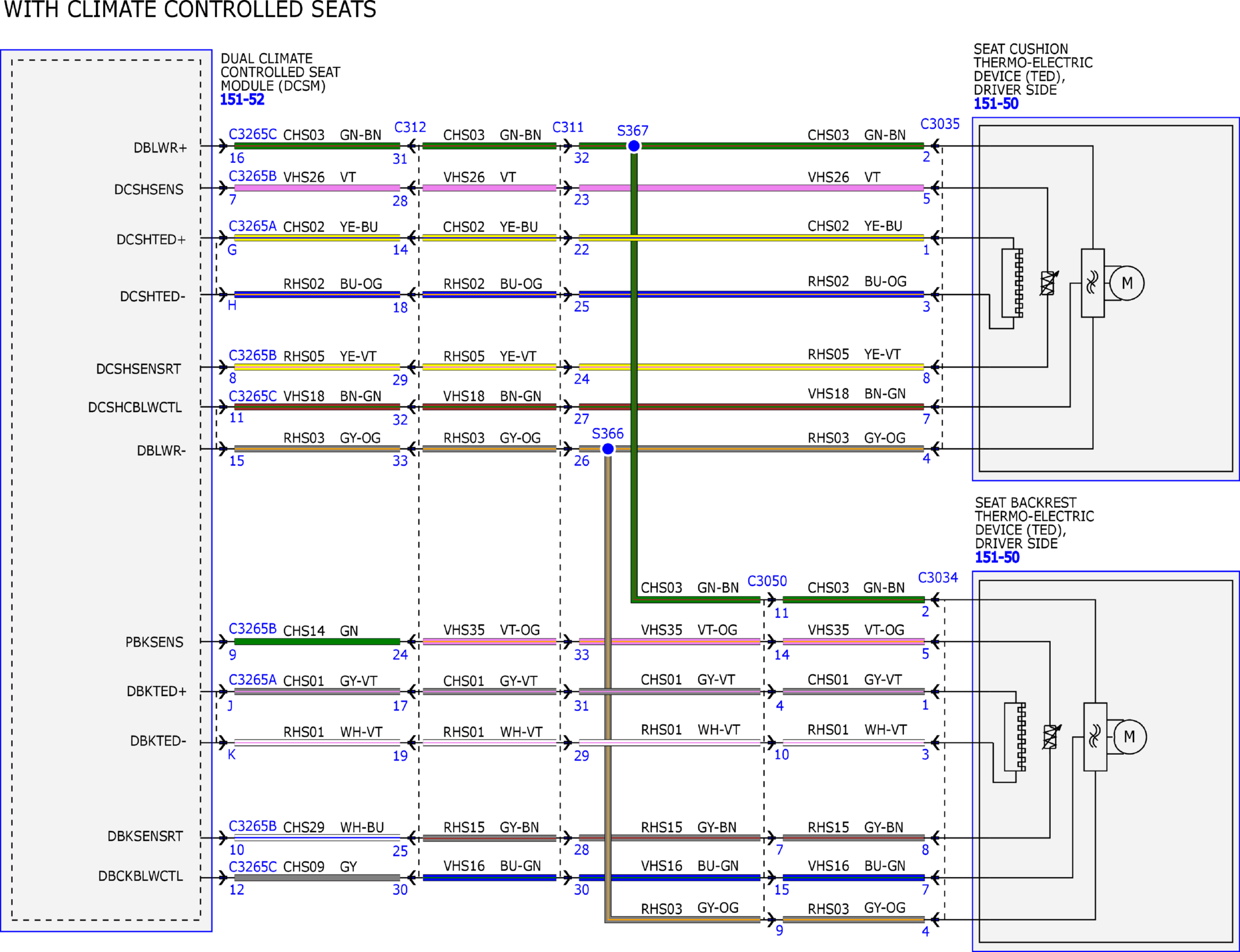

Fig 5: Climate Controlled Seats System Wiring Diagrams (5 Of 8)

Courtesy of FORD MOTOR COMPANY

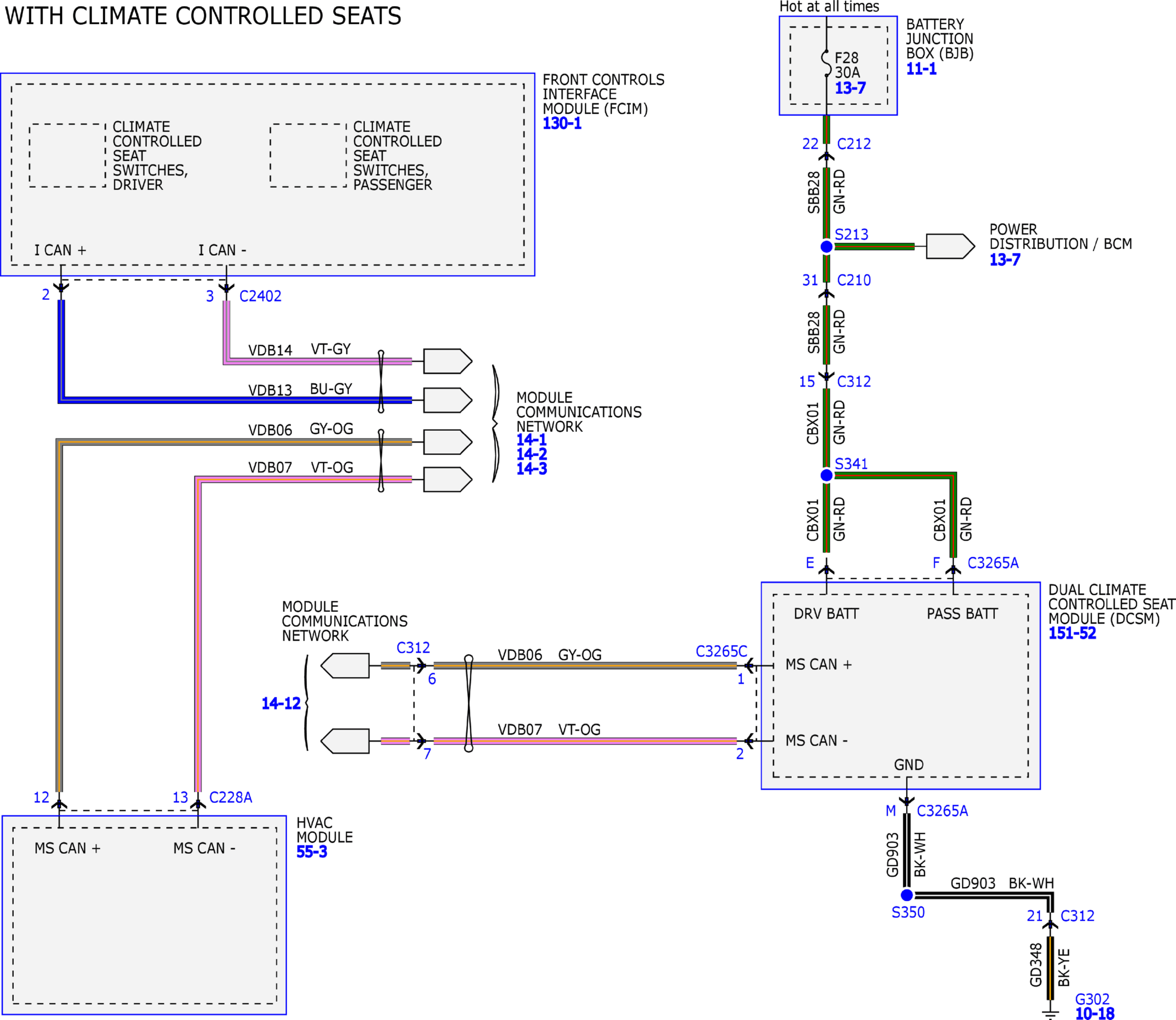

Fig 6: Climate Controlled Seats System Wiring Diagrams (6 Of 8)

Courtesy of FORD MOTOR COMPANY

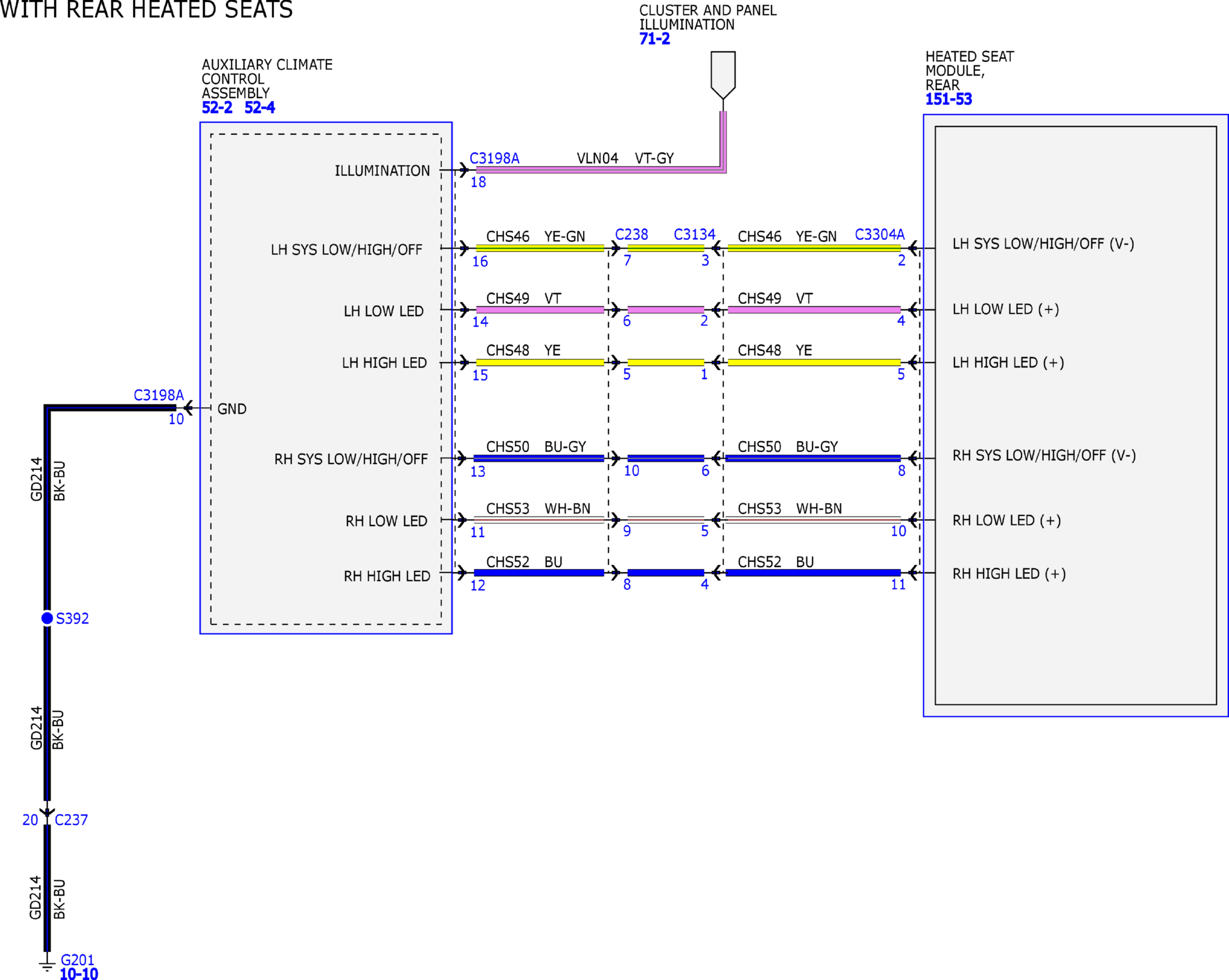

Fig 7: Climate Controlled Seats System Wiring Diagrams (7 Of 8)

Courtesy of FORD MOTOR COMPANY

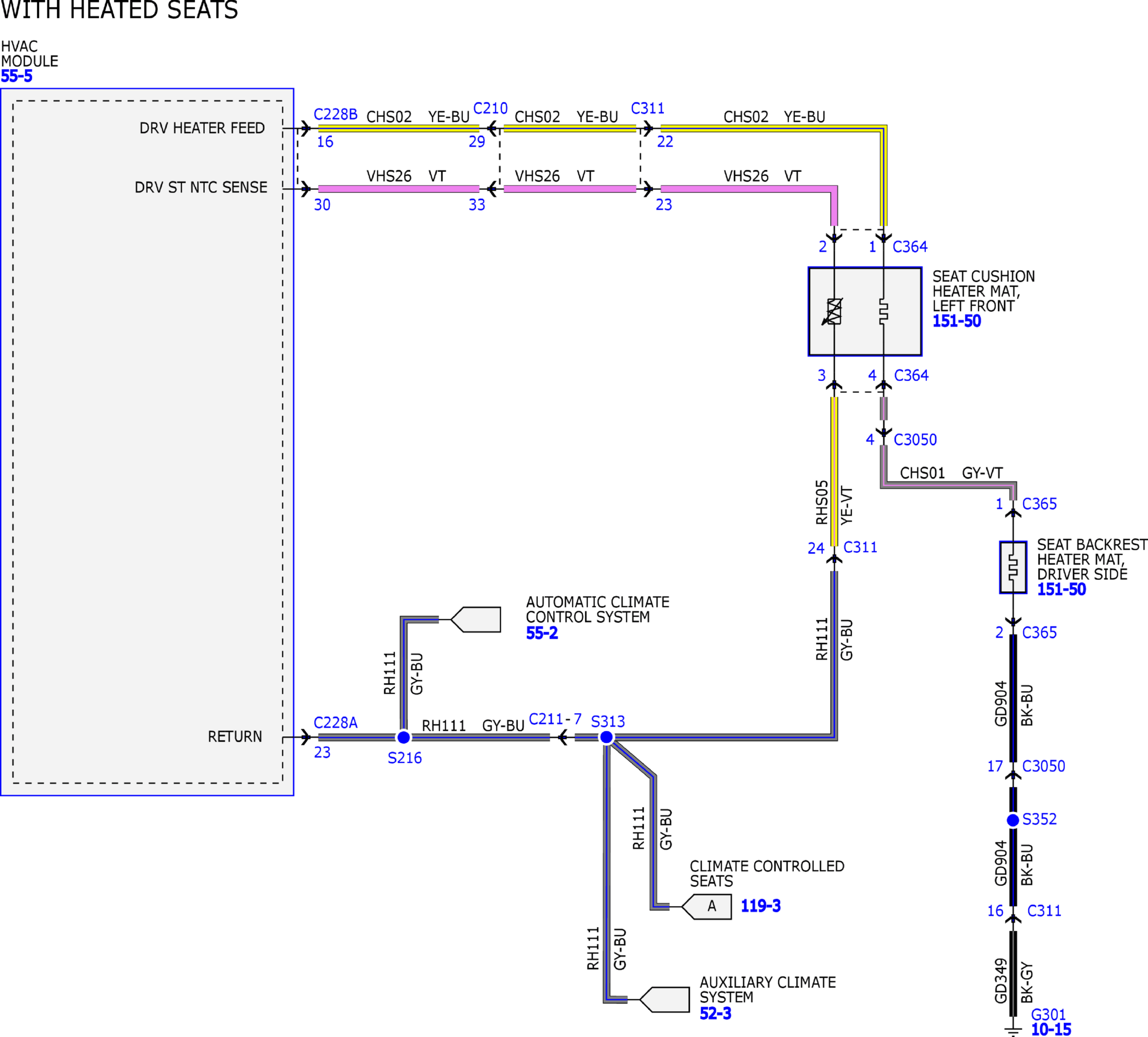

Fig 8: Climate Controlled Seats System Wiring Diagrams (8 Of 8)

Courtesy of FORD MOTOR COMPANY
