Horn/Cigar Lighter

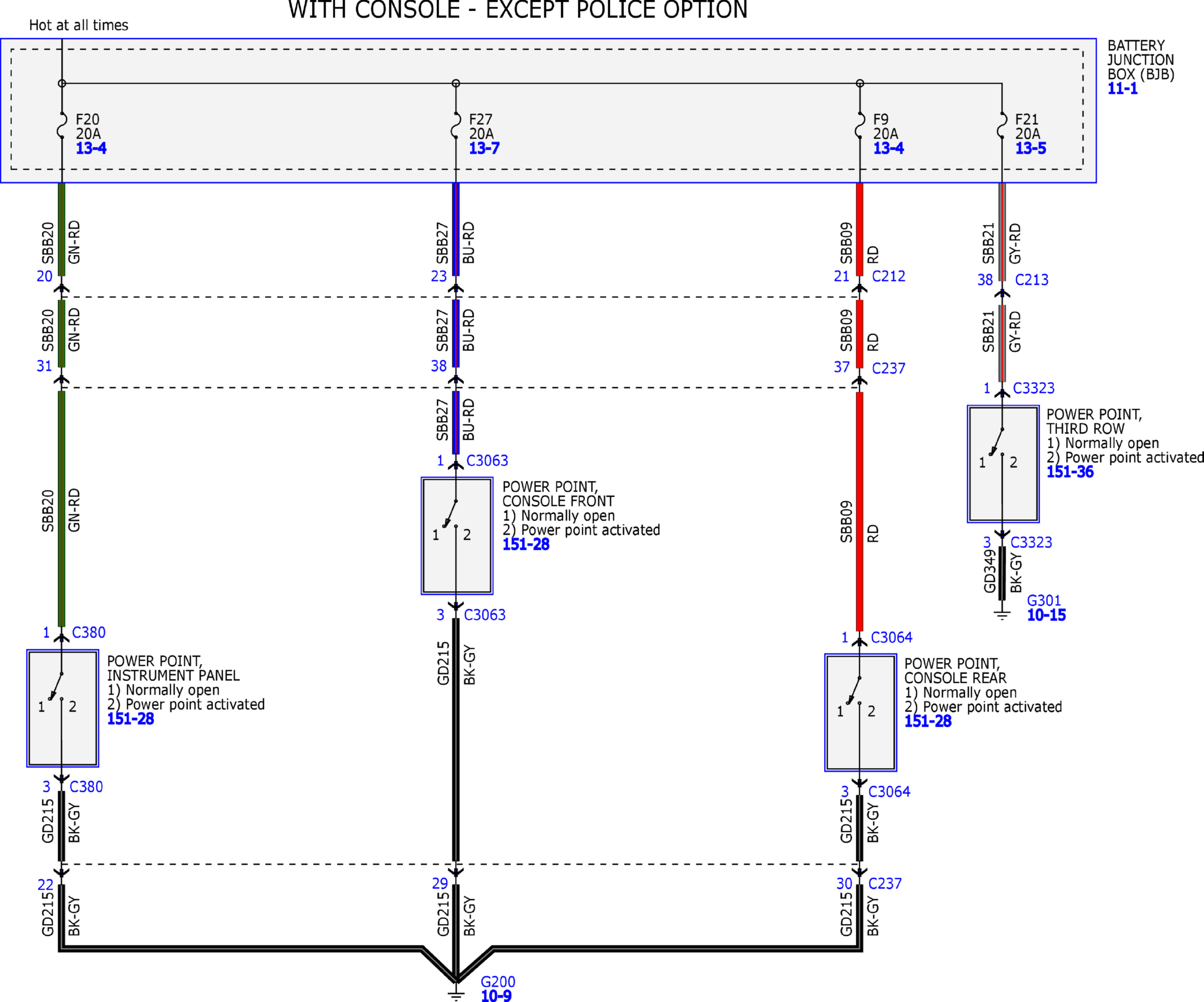

Fig 1: Horn/Cigar Lighter System Wiring Diagrams (1 Of 6)

Courtesy of FORD MOTOR COMPANY

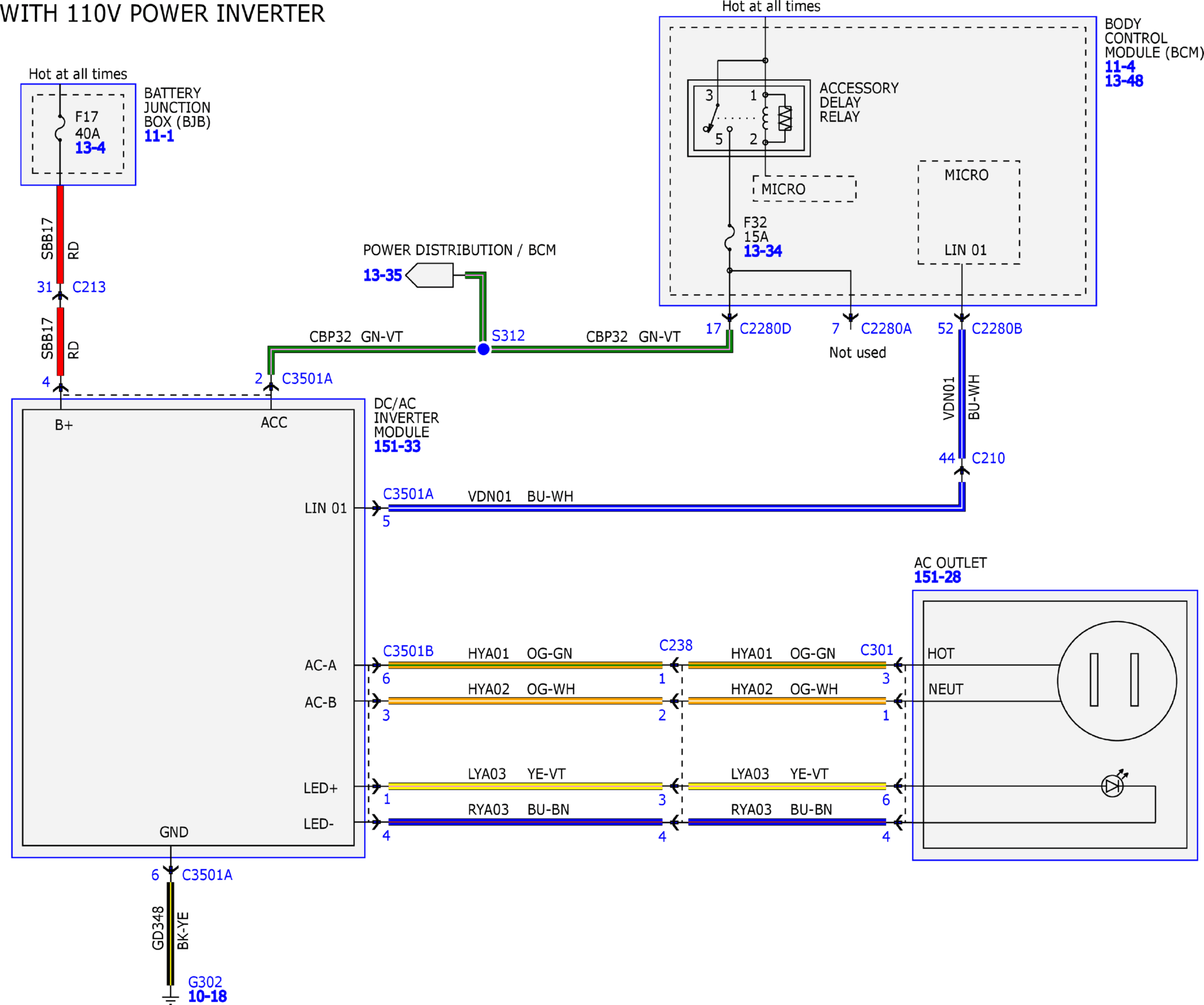

Fig 2: Horn/Cigar Lighter System Wiring Diagrams (2 Of 6)

Courtesy of FORD MOTOR COMPANY

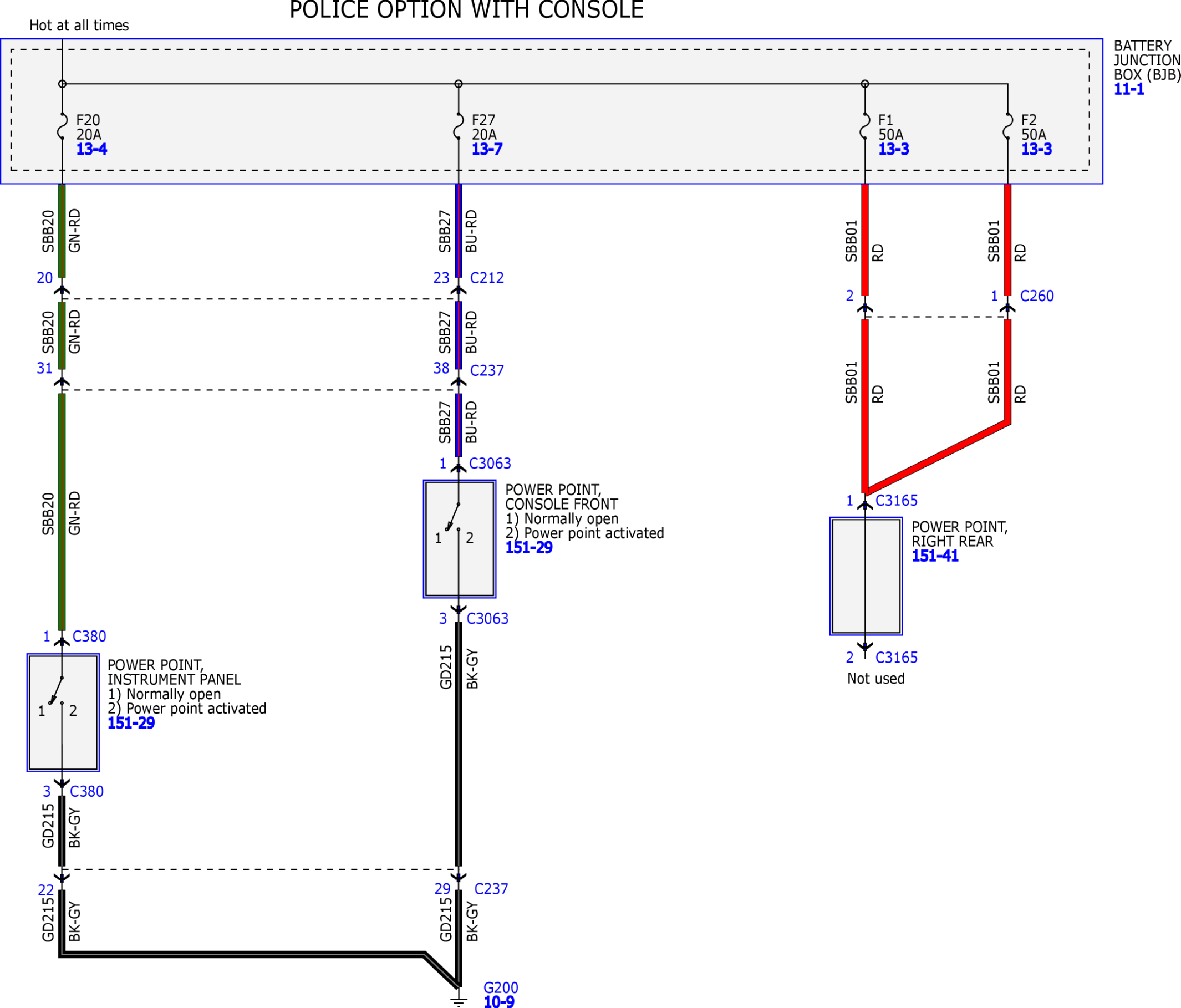

Fig 3: Horn/Cigar Lighter System Wiring Diagrams (3 Of 6)

Courtesy of FORD MOTOR COMPANY

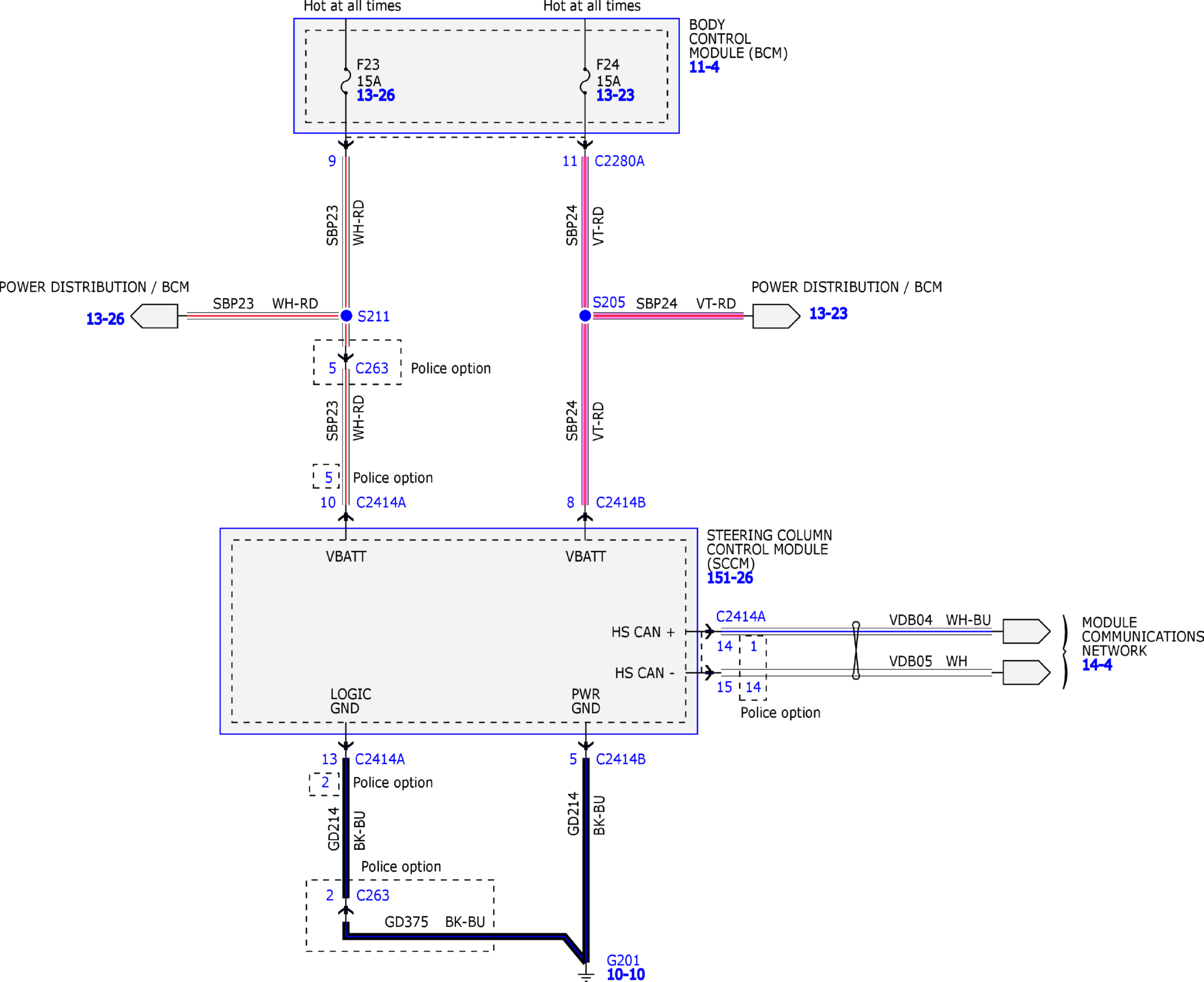

Fig 4: Horn/Cigar Lighter System Wiring Diagrams (4 Of 6)

Courtesy of FORD MOTOR COMPANY

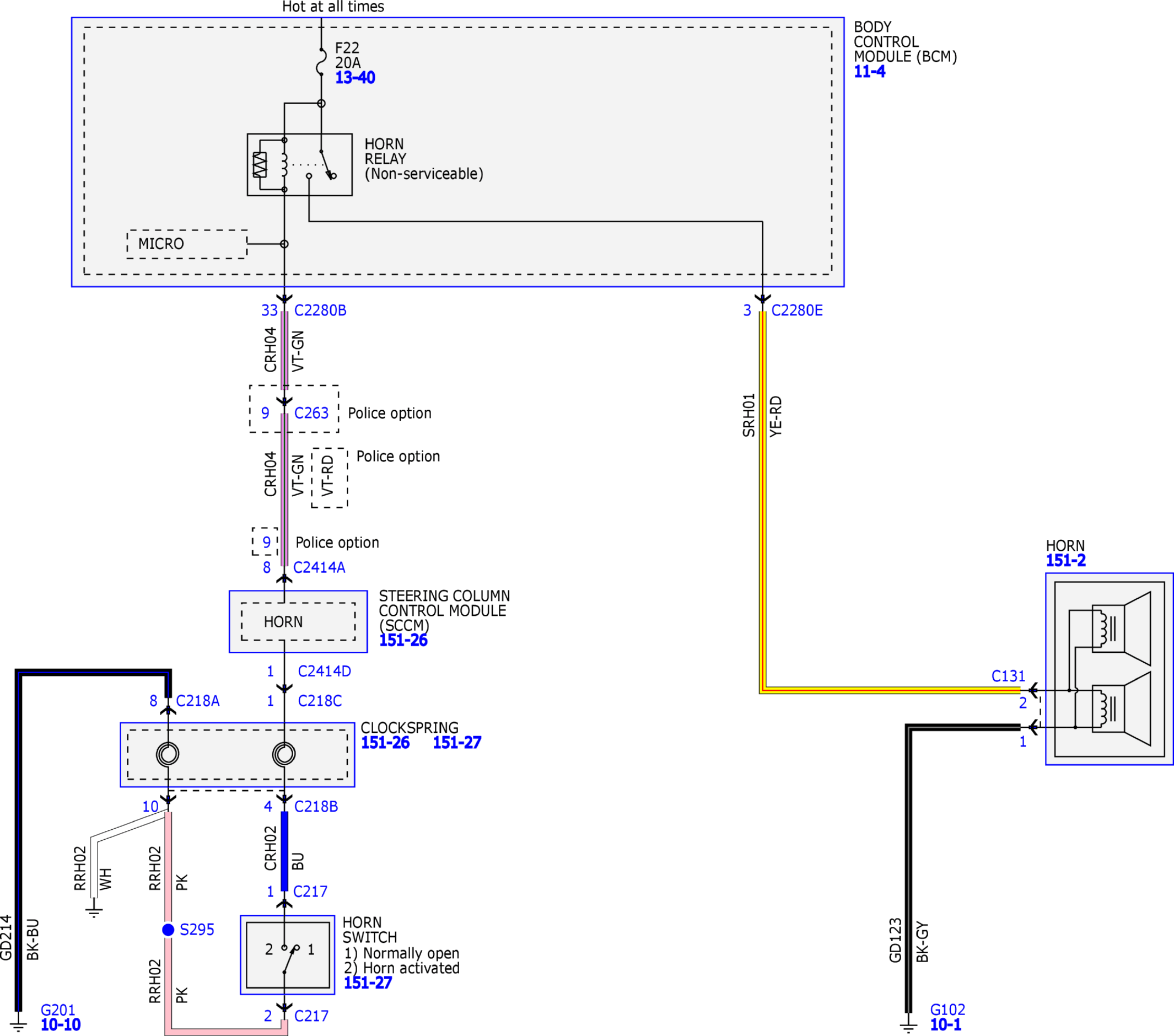

Fig 5: Horn/Cigar Lighter System Wiring Diagrams (5 Of 6)

Courtesy of FORD MOTOR COMPANY

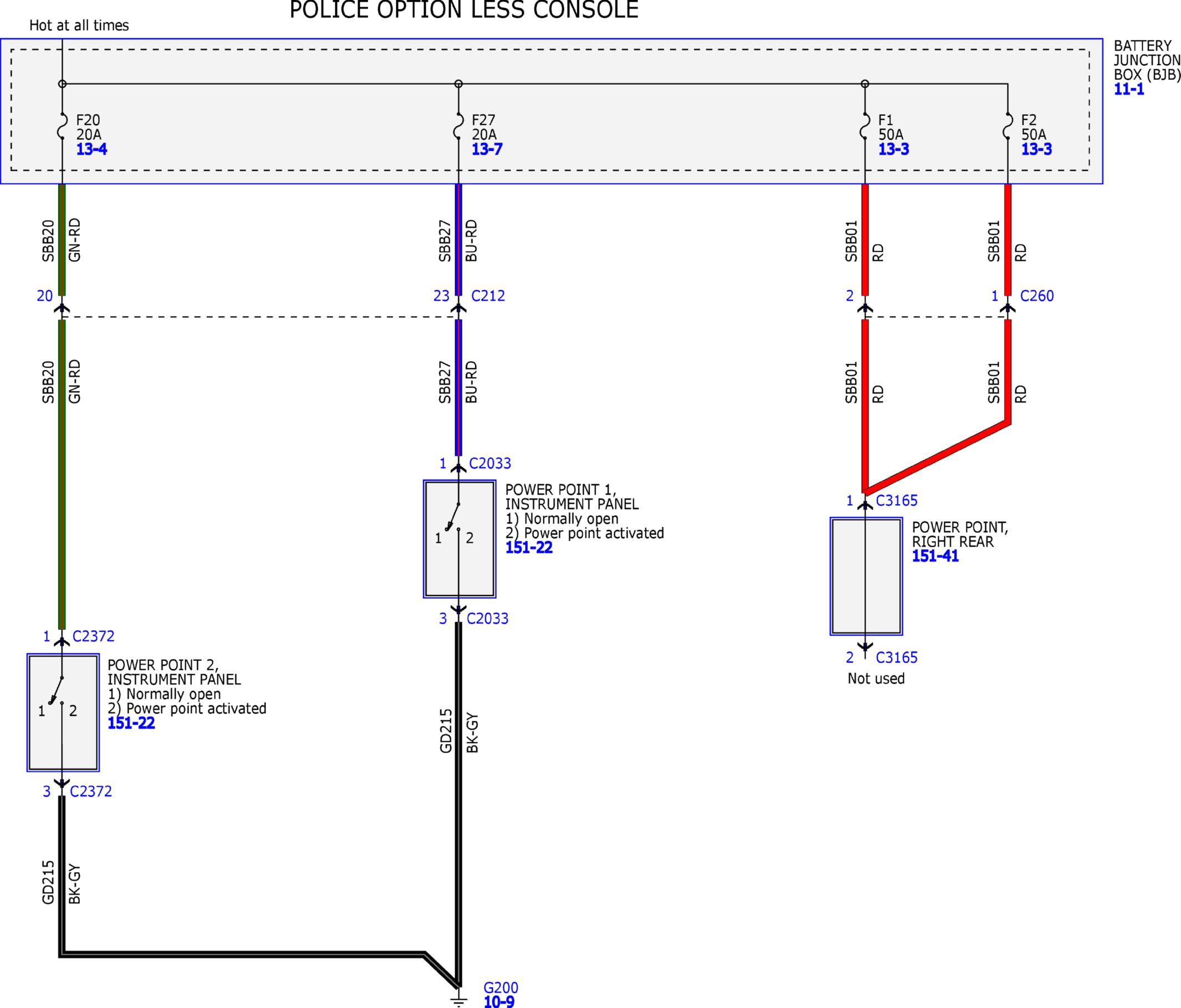

Fig 6: Horn/Cigar Lighter System Wiring Diagrams (6 Of 6)

Courtesy of FORD MOTOR COMPANY
