Shift Interlock System

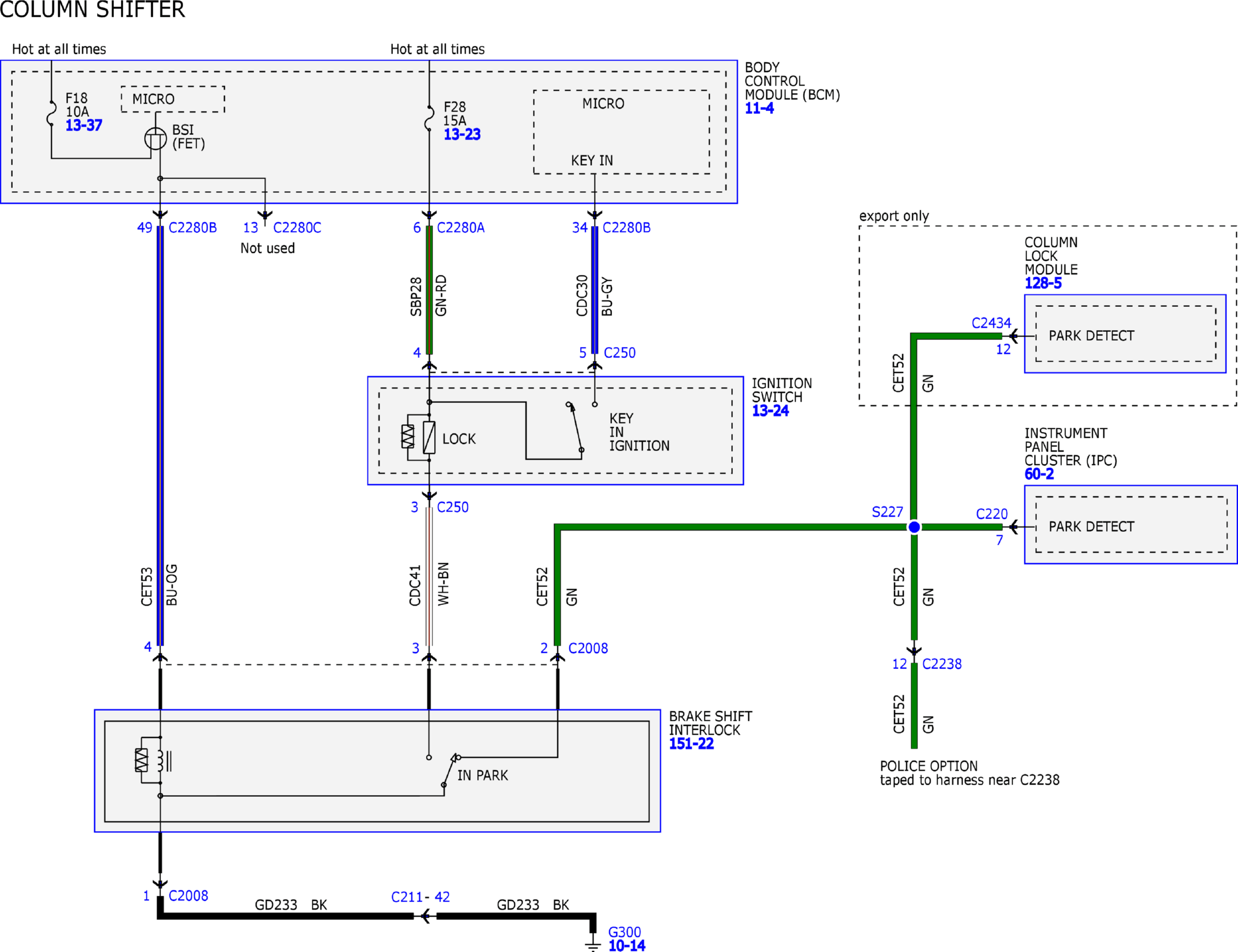

Fig 1: Shift Interlock System Wiring Diagrams (1 Of 6)

Courtesy of FORD MOTOR COMPANY

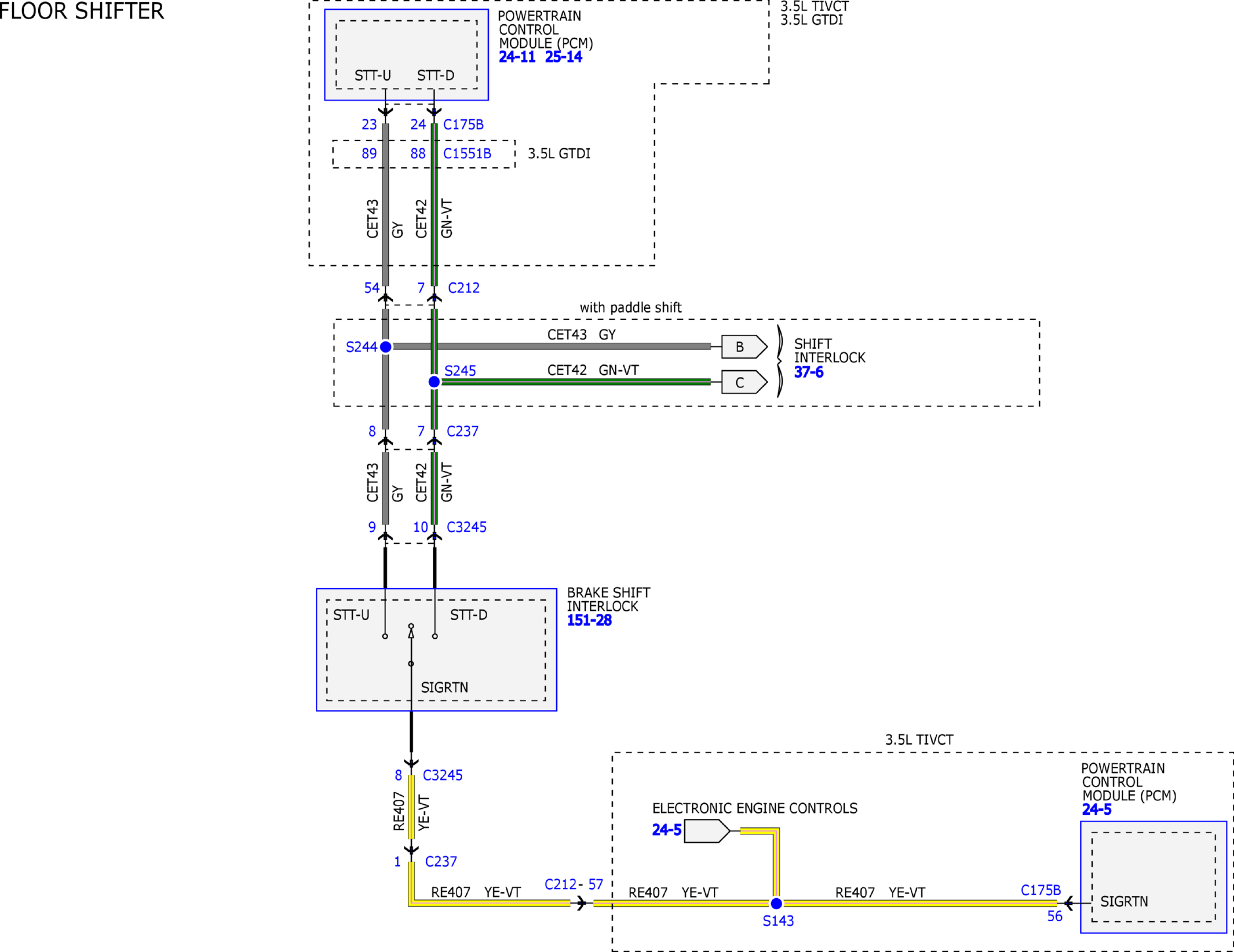

Fig 2: Shift Interlock System Wiring Diagrams (2 Of 6)

Courtesy of FORD MOTOR COMPANY

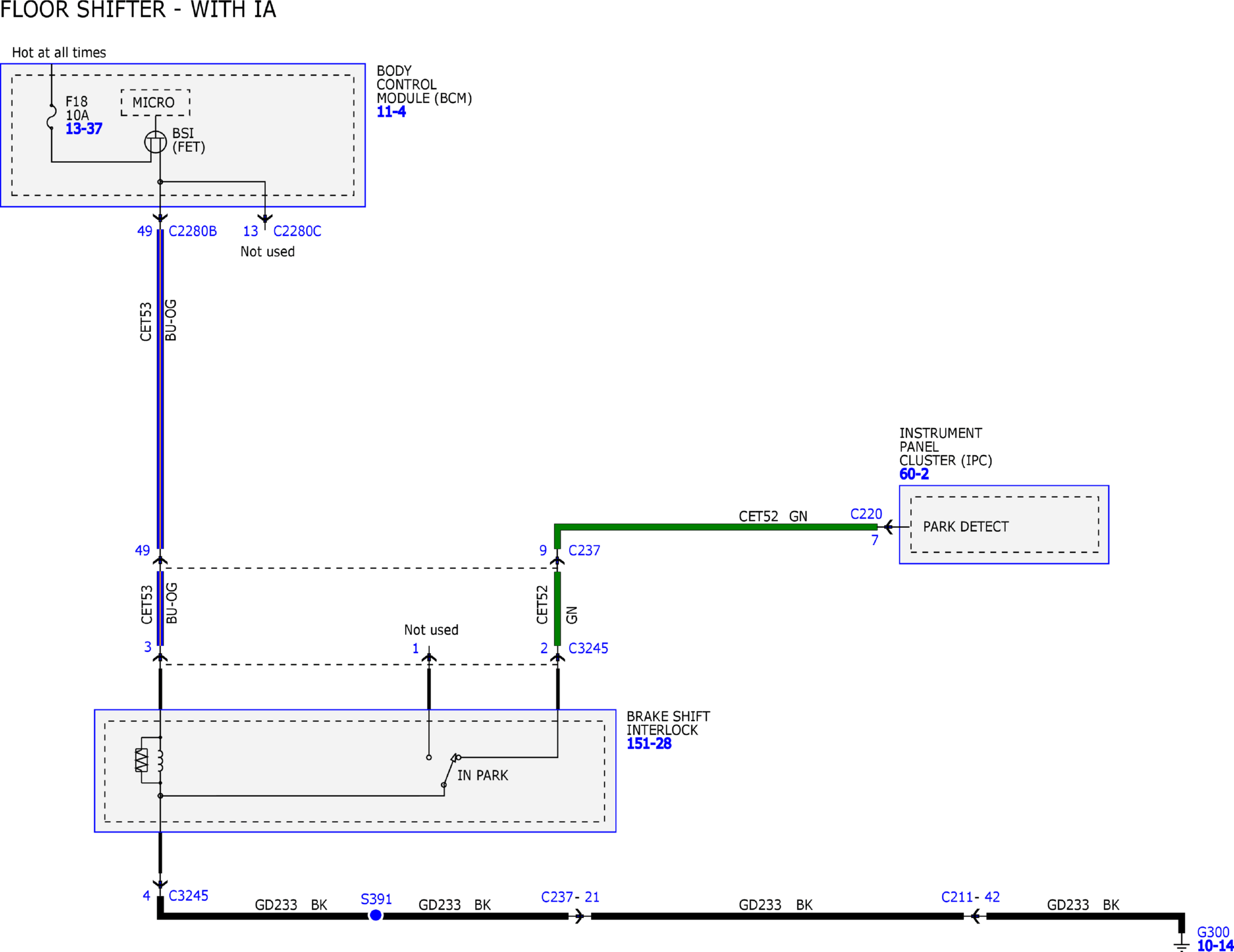

Fig 3: Shift Interlock System Wiring Diagrams (3 Of 6)

Courtesy of FORD MOTOR COMPANY

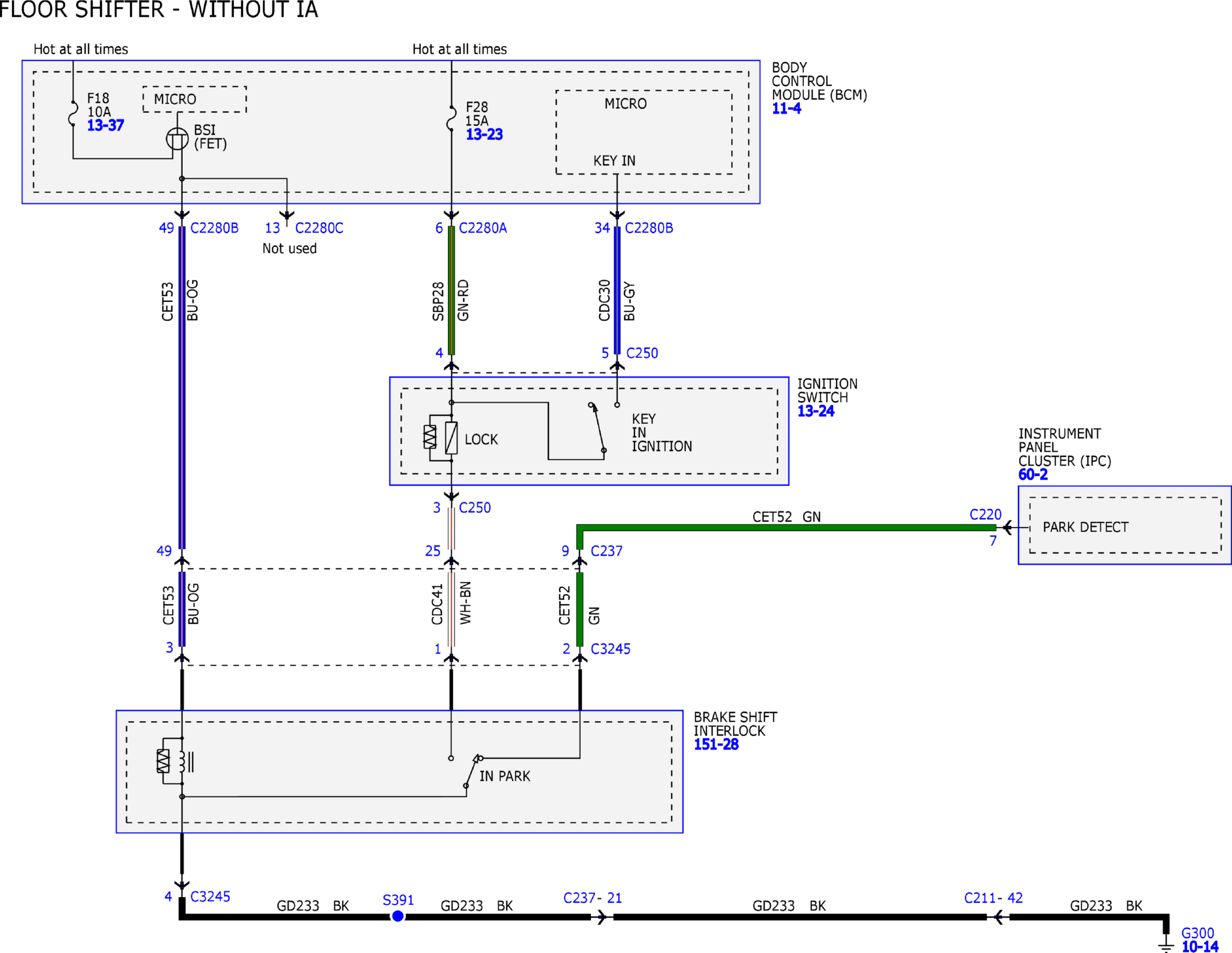

Fig 4: Shift Interlock System Wiring Diagrams (4 Of 6)

Courtesy of FORD MOTOR COMPANY

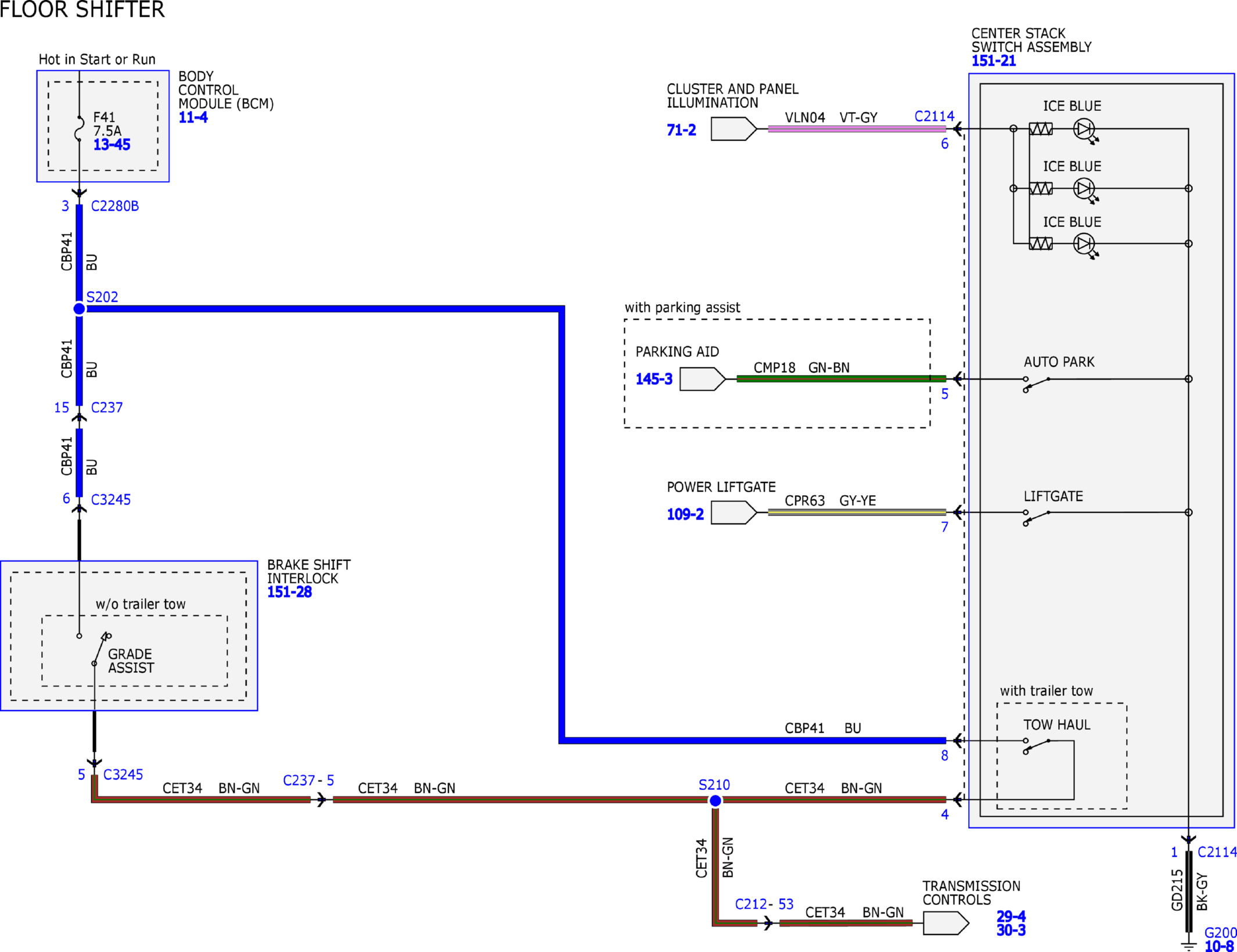

Fig 5: Shift Interlock System Wiring Diagrams (5 Of 6)

Courtesy of FORD MOTOR COMPANY

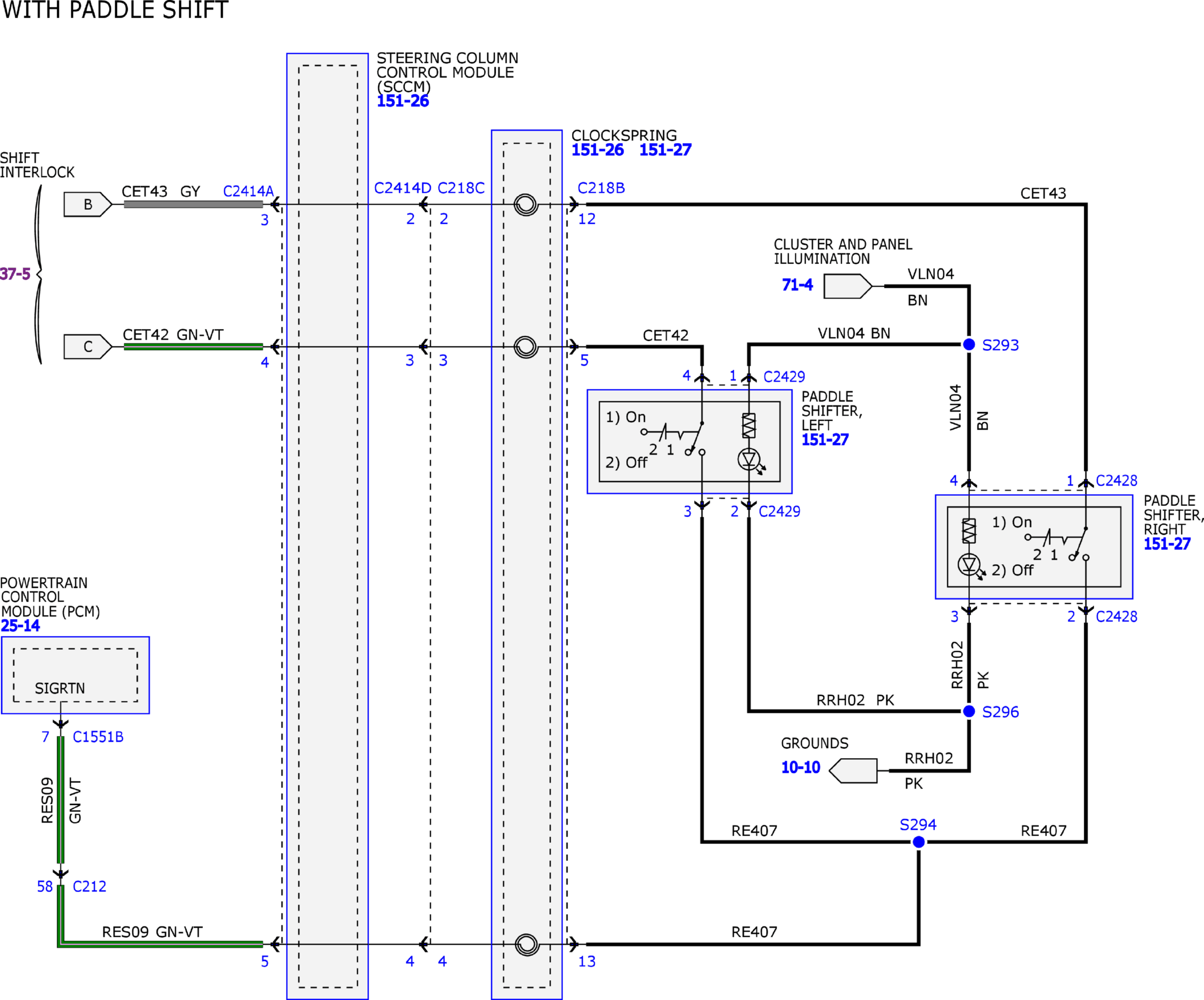

Fig 6: Shift Interlock System Wiring Diagrams (6 Of 6)

Courtesy of FORD MOTOR COMPANY
