Transmission Controls System - 6F35

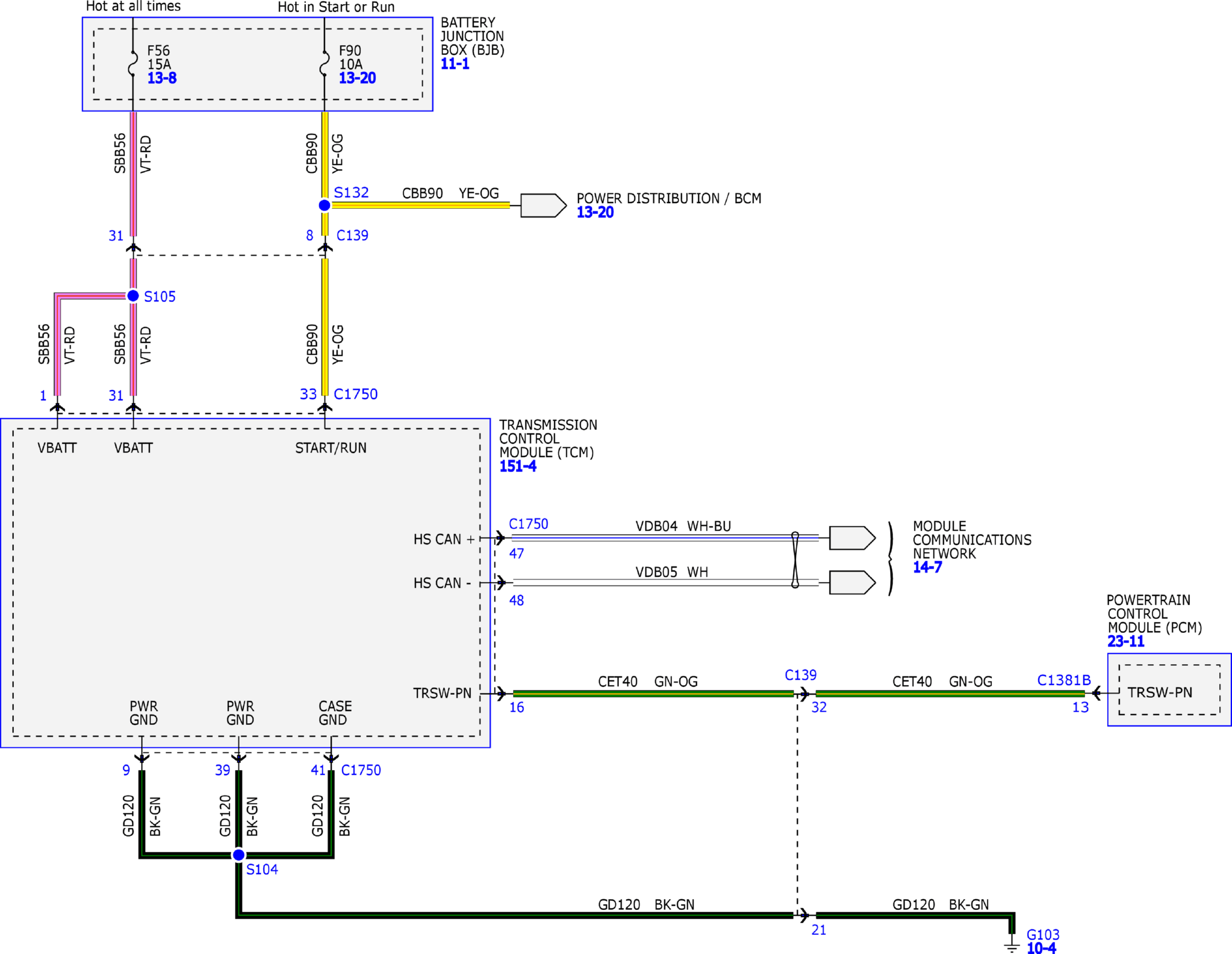

Fig 1: Transmission Controls System (6F35) Wiring Diagrams (1 Of 3)
GFDW12616Courtesy of FORD MOTOR COMPANY

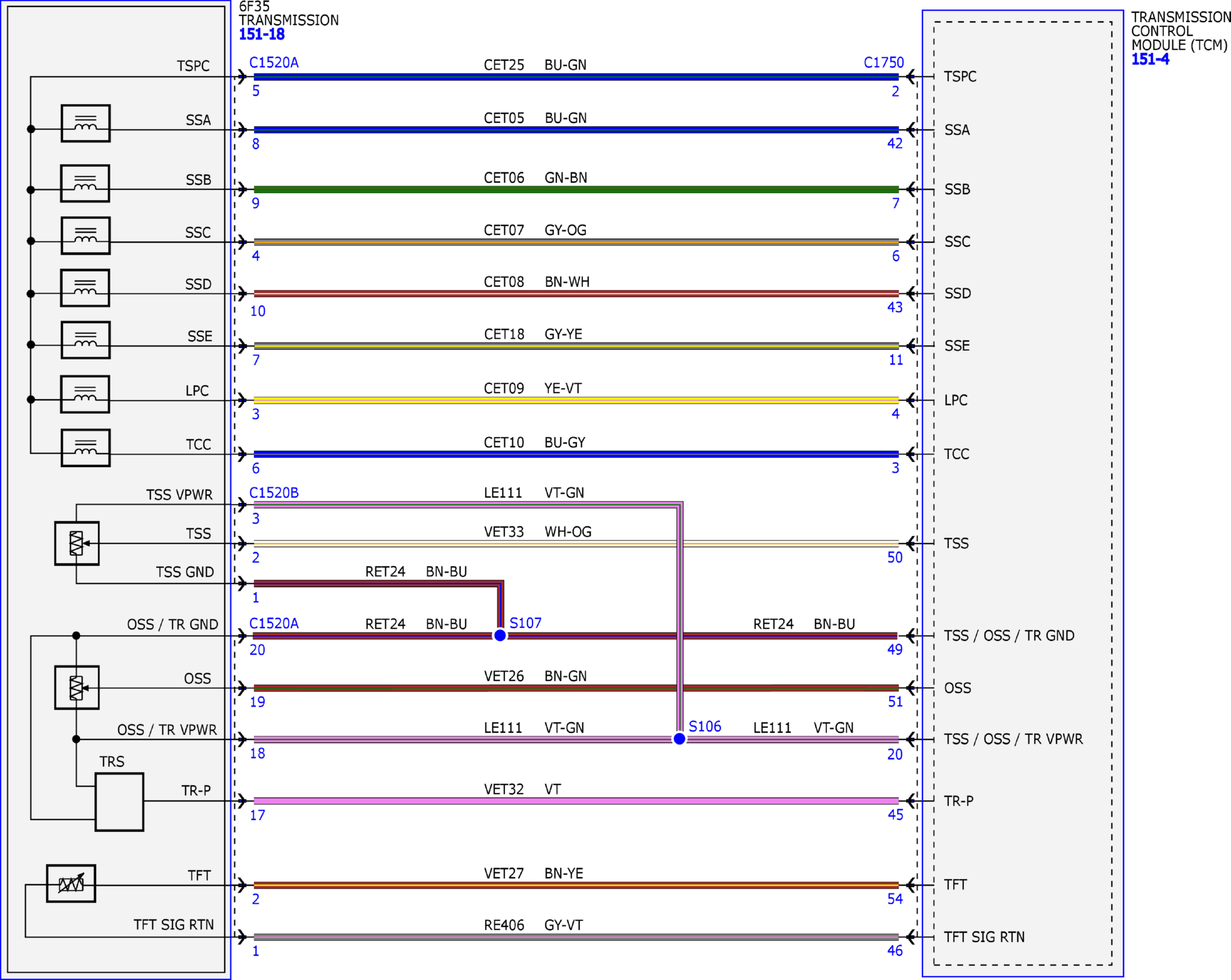

Fig 2: Transmission Controls System (6F35) Wiring Diagrams (2 Of 3)
GFDW12617Courtesy of FORD MOTOR COMPANY

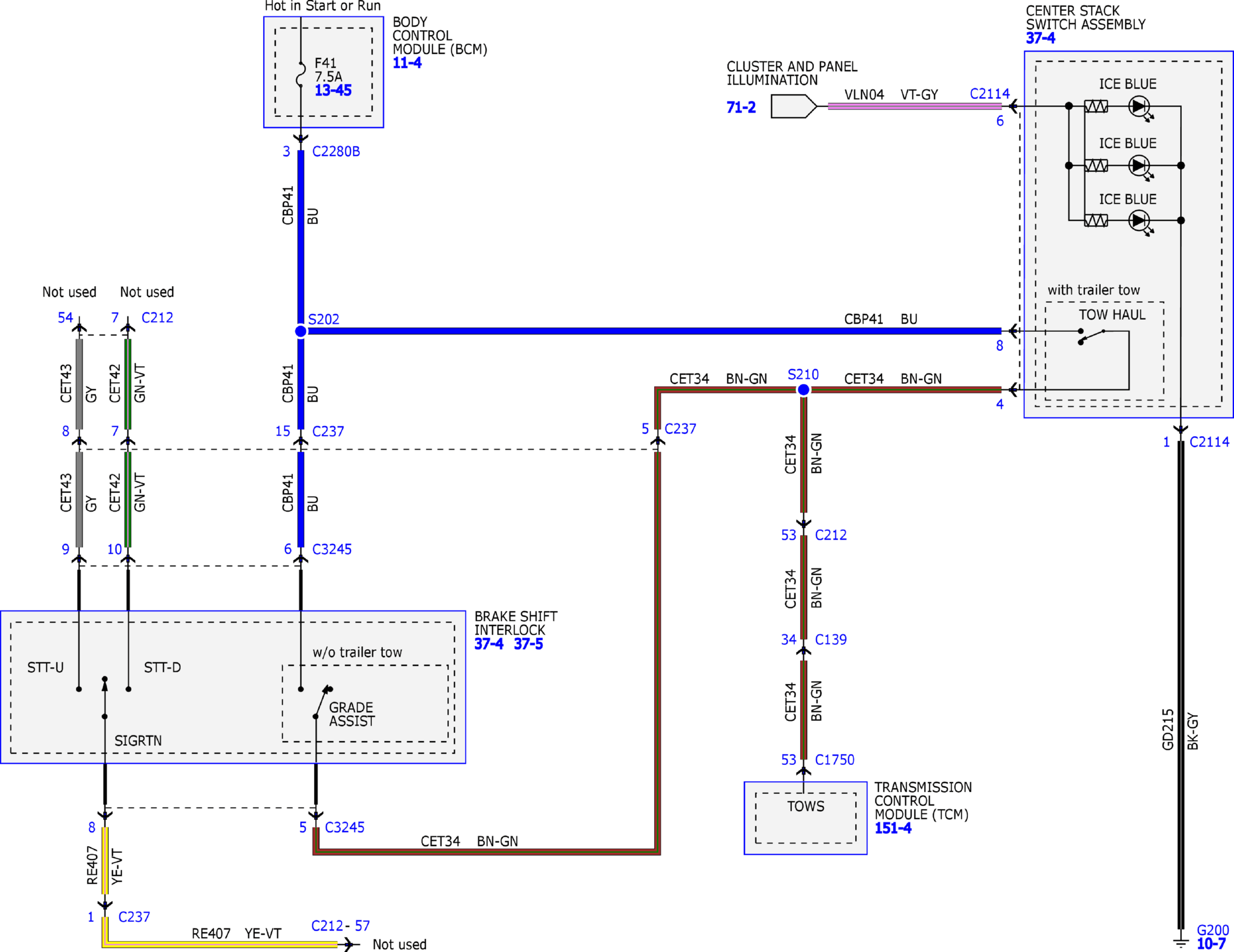

Fig 3: Transmission Controls System (6F35) Wiring Diagrams (3 Of 3)
GFDW12618Courtesy of FORD MOTOR COMPANY
