Turn Signal Lamps/Stop Lamps/Hazard Lamps

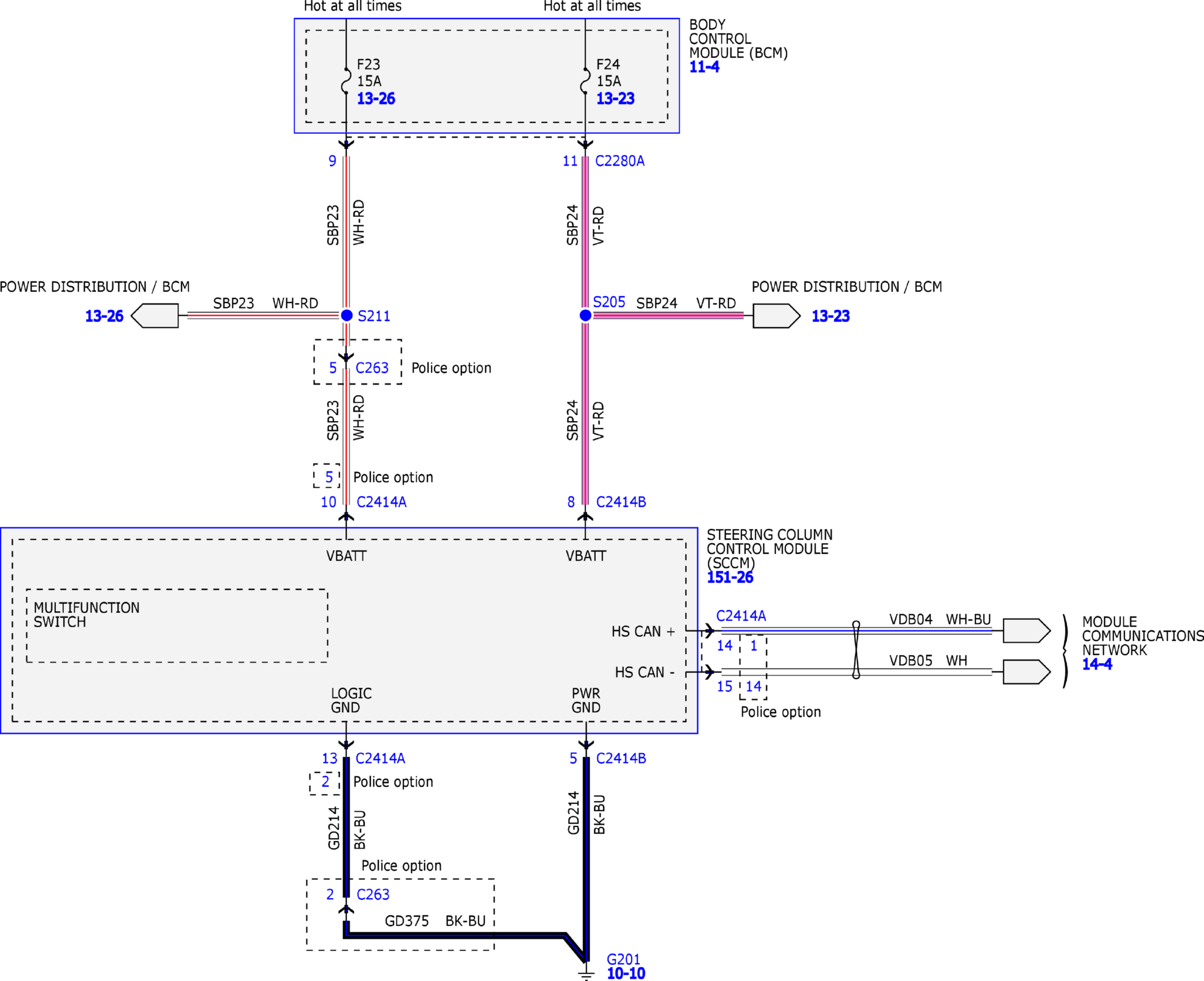

Fig 1: Turn Signal Lamps/Stop Lamps/Hazard Lamps System Wiring Diagrams (1 Of 6)
GFDW12625Courtesy of FORD MOTOR COMPANY

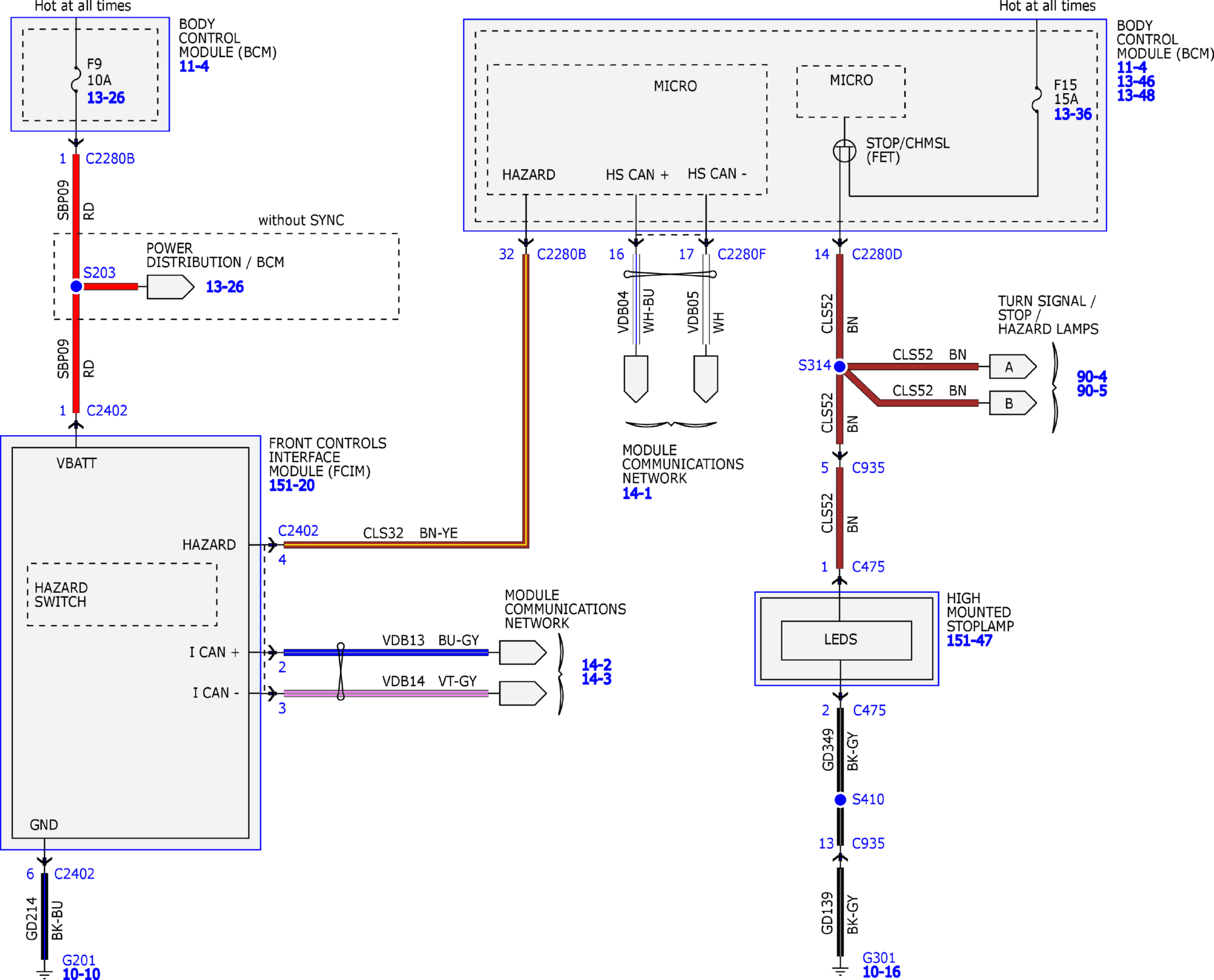

Fig 2: Turn Signal Lamps/Stop Lamps/Hazard Lamps System Wiring Diagrams (2 Of 6)
GFDW12626Courtesy of FORD MOTOR COMPANY

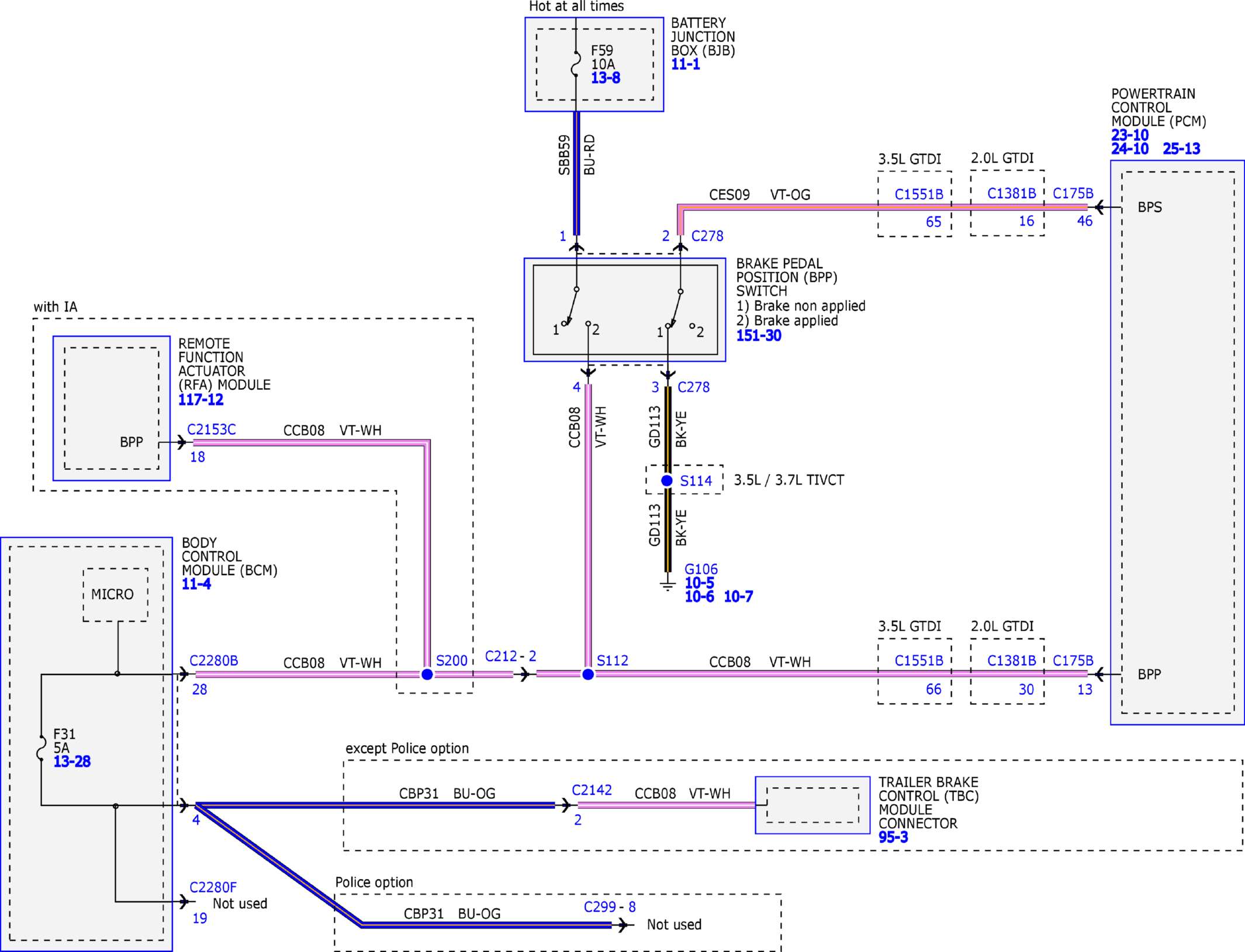

Fig 3: Turn Signal Lamps/Stop Lamps/Hazard Lamps System Wiring Diagrams (3 Of 6)
GFDW12627Courtesy of FORD MOTOR COMPANY

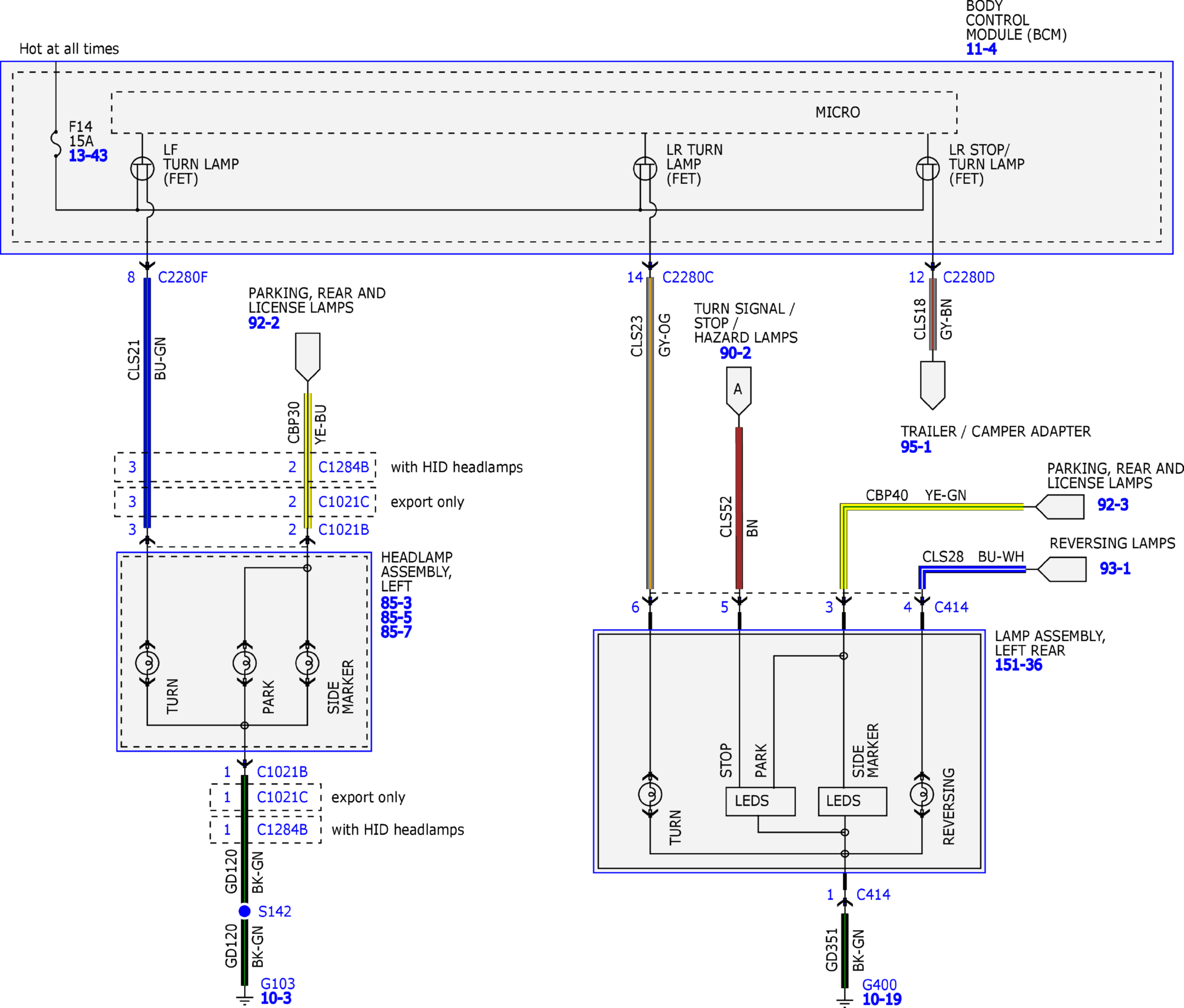

Fig 4: Turn Signal Lamps/Stop Lamps/Hazard Lamps System Wiring Diagrams (4 Of 6)
GFDW12628Courtesy of FORD MOTOR COMPANY

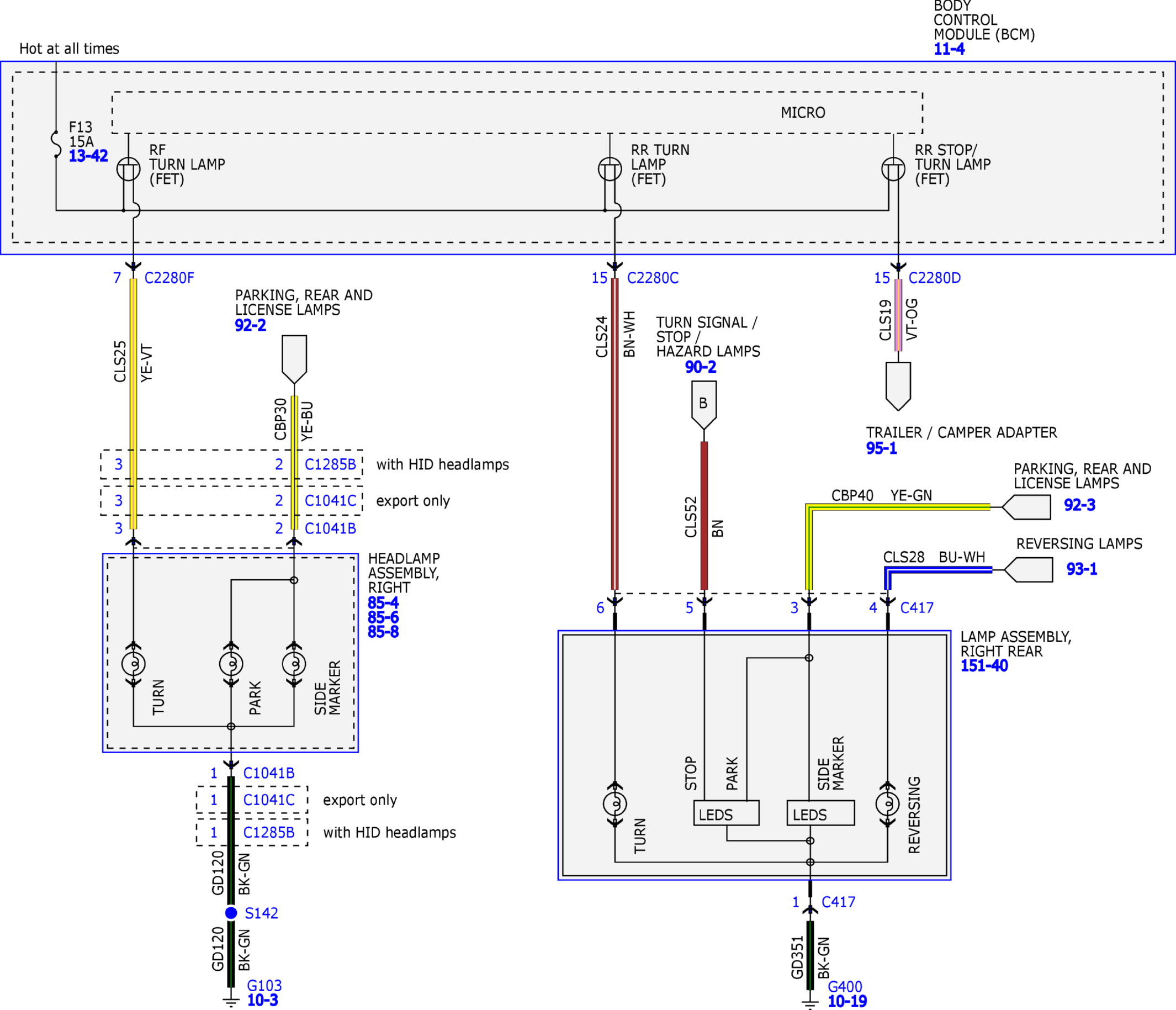

Fig 5: Turn Signal Lamps/Stop Lamps/Hazard Lamps System Wiring Diagrams (5 Of 6)
GFDW12629Courtesy of FORD MOTOR COMPANY

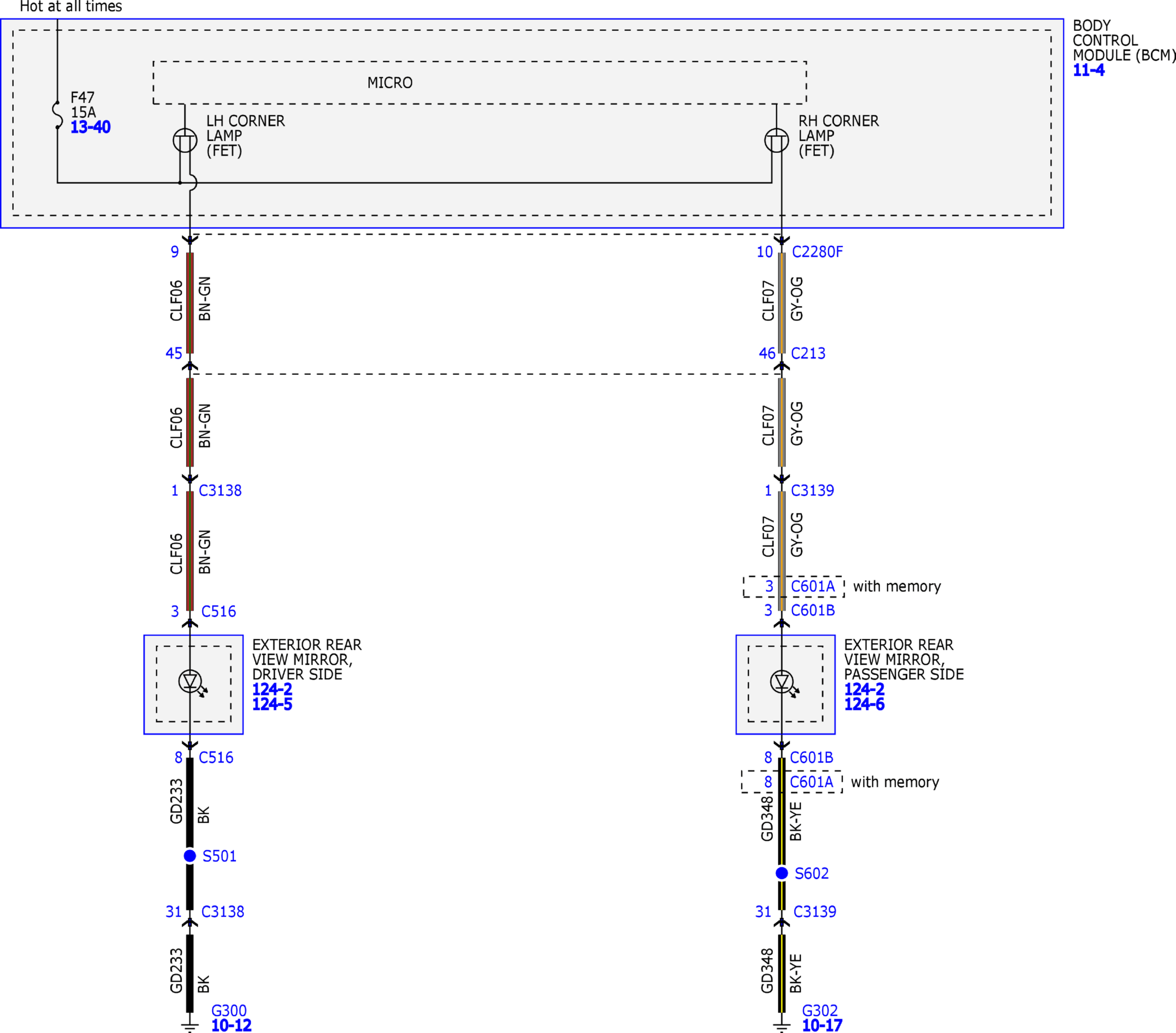

Fig 6: Turn Signal Lamps/Stop Lamps/Hazard Lamps System Wiring Diagrams (6 Of 6)
GFDW12630Courtesy of FORD MOTOR COMPANY
