Vehicle Dynamic Systems

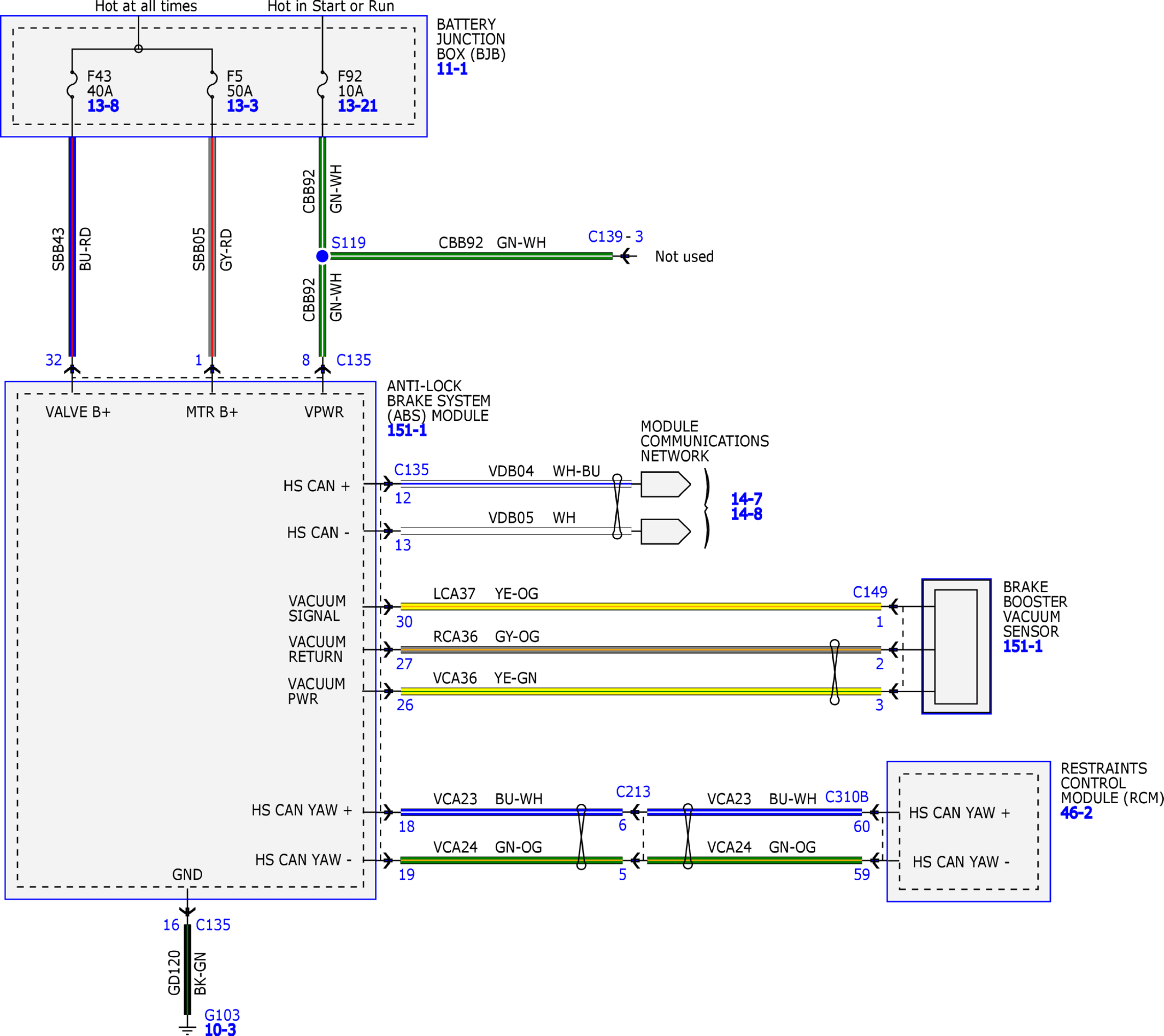

Fig 1: Vehicle Dynamic System Wiring Diagrams (1 Of 3)
GFDW12631Courtesy of FORD MOTOR COMPANY

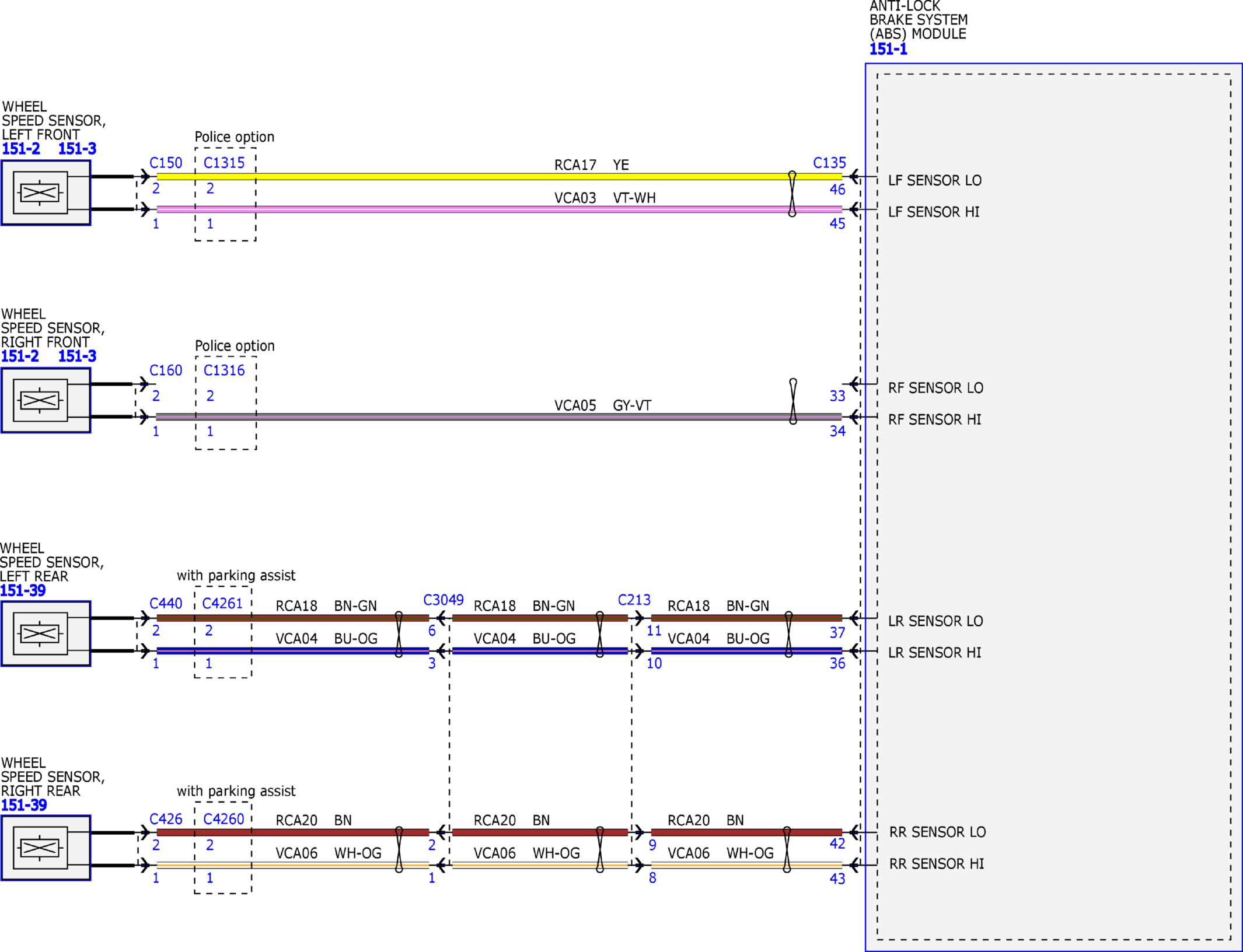

Fig 2: Vehicle Dynamic System Wiring Diagrams (2 Of 3)
GFDW12632Courtesy of FORD MOTOR COMPANY

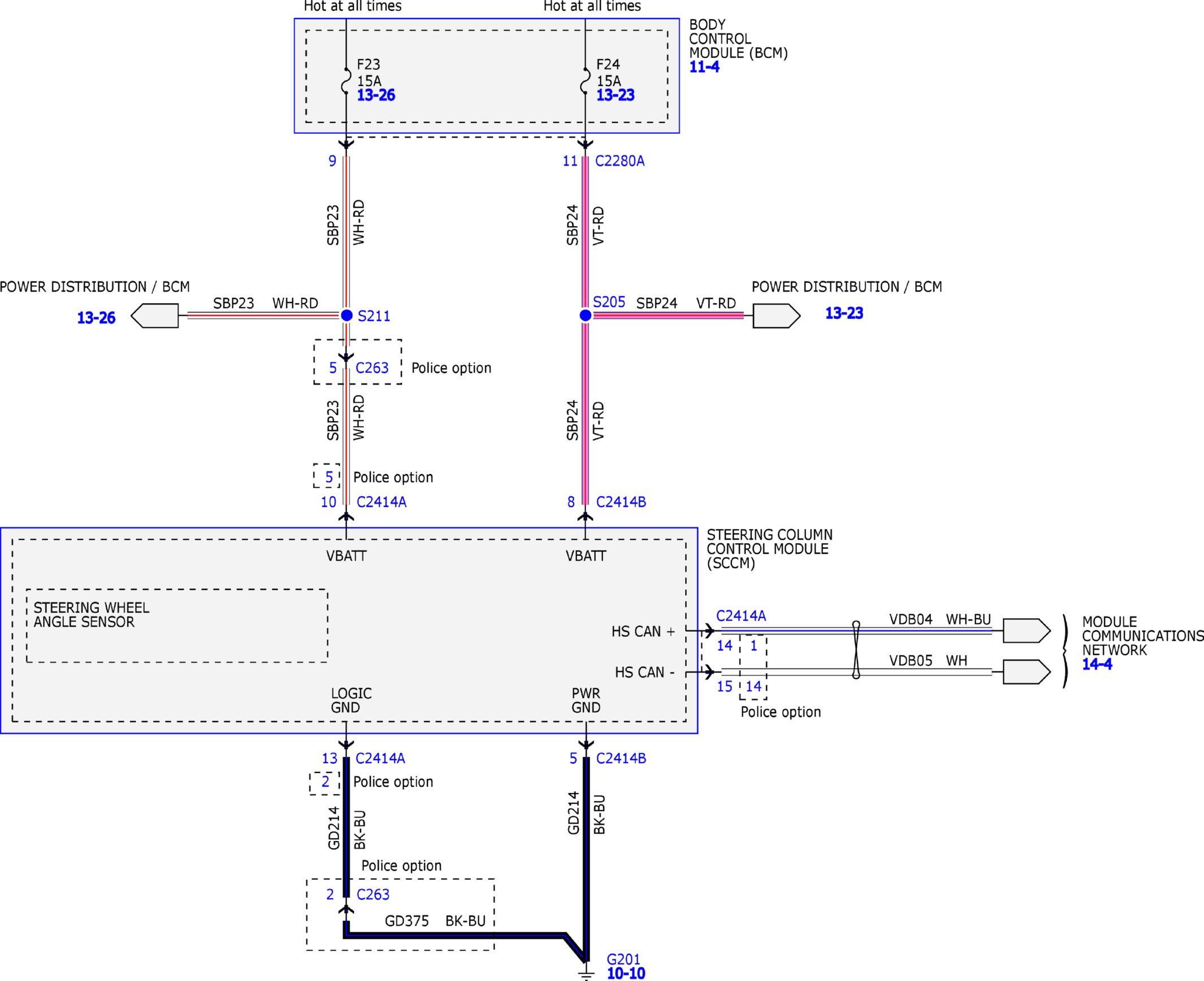

Fig 3: Vehicle Dynamic System Wiring Diagrams (3 Of 3)
GFDW12633Courtesy of FORD MOTOR COMPANY
