Pinpoint Test TA: Clutch Pedal Position (CPP) Switch: Introduction: Notes
This pinpoint test is intended to diagnose the following:
- CPP sensor
- CPP switch (11A152/7C534)
- harness circuits: CPP, CPP-BT, GND, SIGRTN, and VREF
- PCM (12A650)
| Pin | Circuit |
|---|---|
| 2 | CPP (Clutch Pedal Position) |
| 1 | SIGRTN (Signal Return) |
| 3 | VREF (Reference Voltage) |

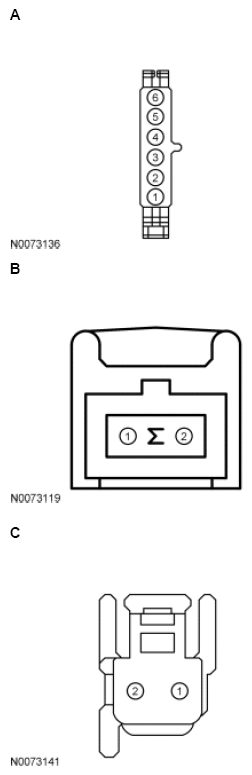

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| F-Series Super Duty | A | 2 1 |
GND CPP-BT |
| Mustang | B | 2 1 |
GND CPP-BT |
| All other vehicles | C | 2 1 |
GND CPP-BT |
