Seat Control Switch - Driver Side (10 Way)
Seat Control Switch - Driver Side (10 Way)

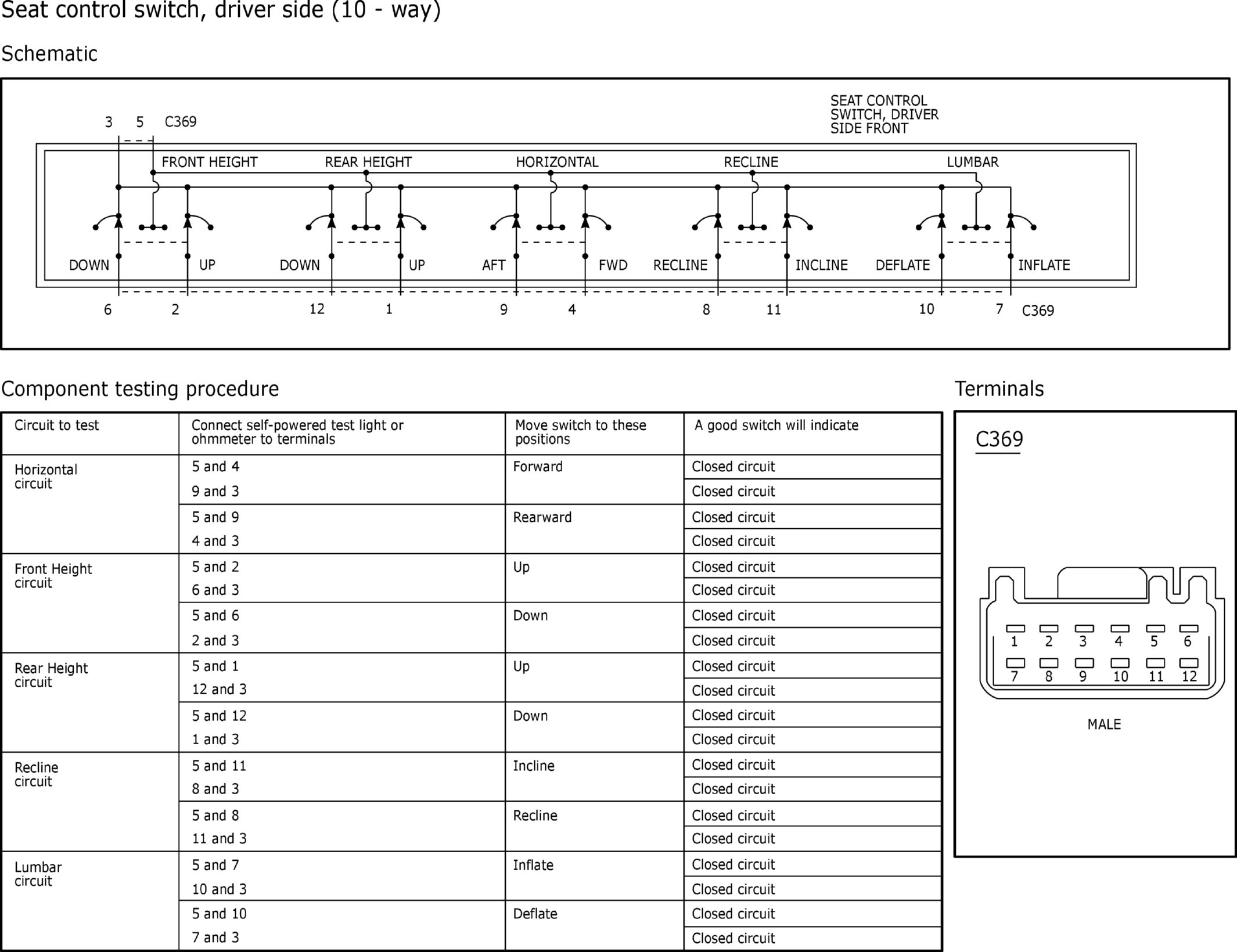

Fig 1: Seat Control Switch - Driver Side (10 Way)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
