Component Testing: Relays

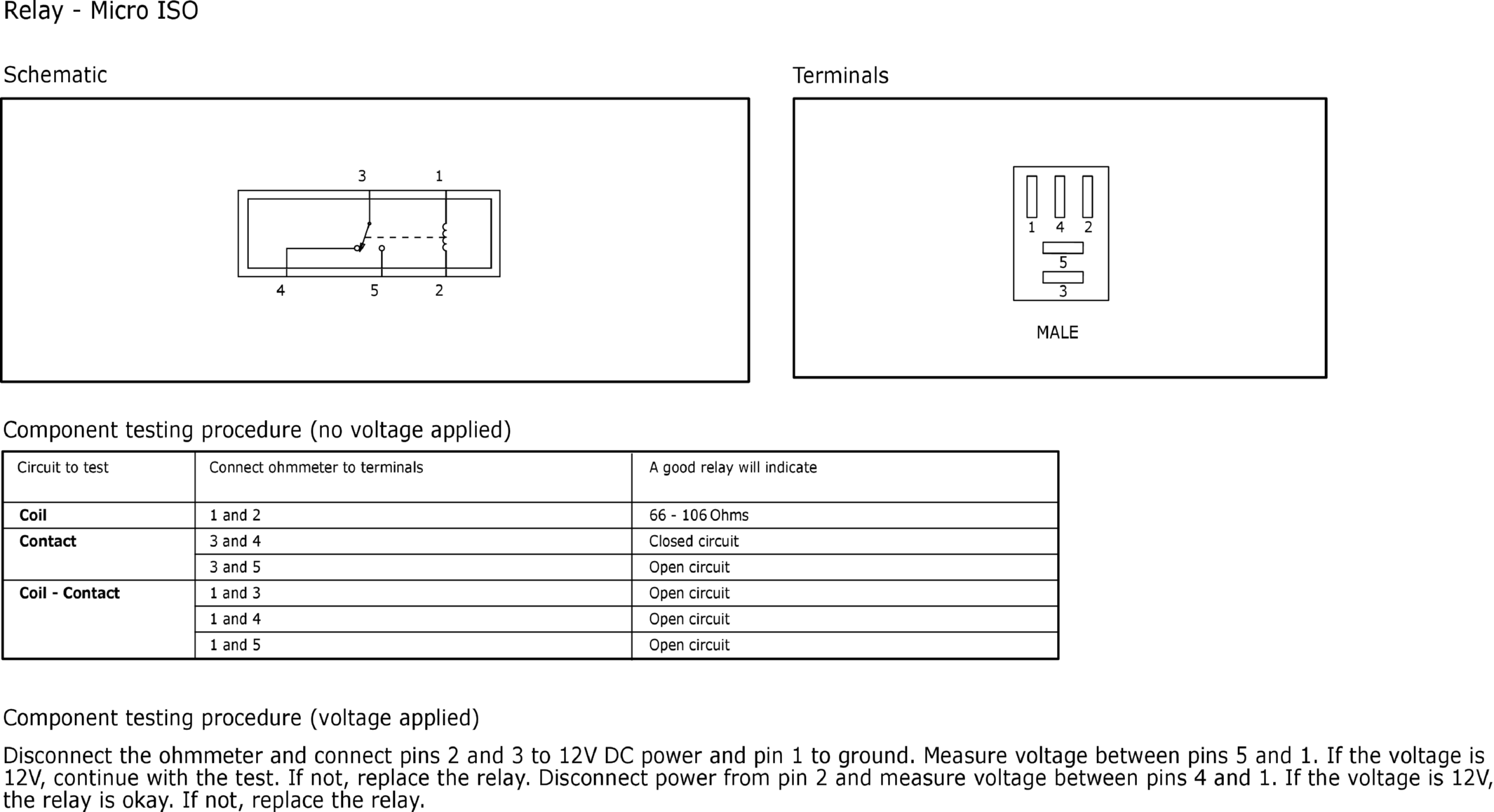

Fig 1: Relay - Micro ISO
GFDW12645Courtesy of FORD MOTOR COMPANY

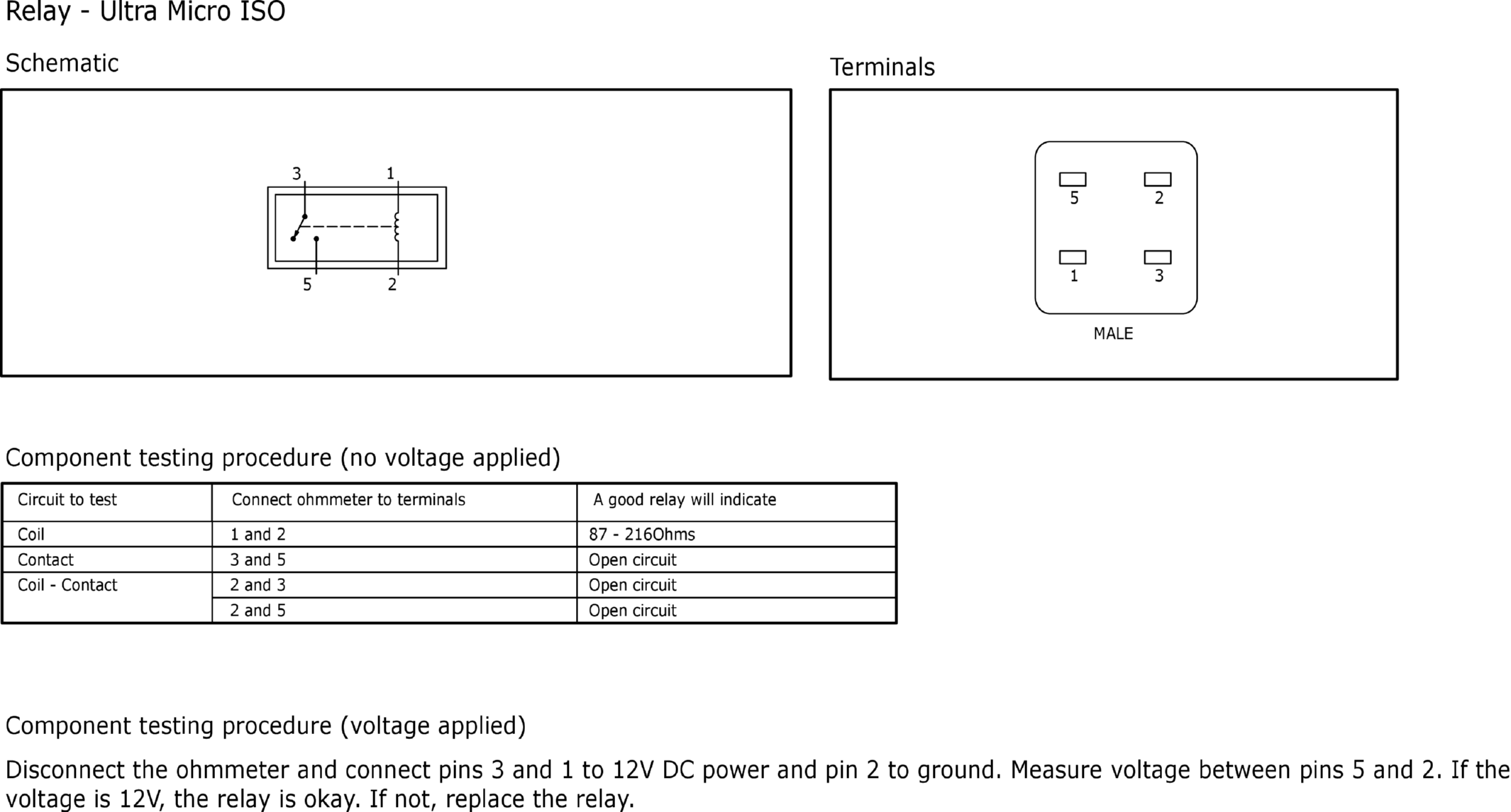

Fig 2: Relay - Ultra Micro ISO
GFDW12646Courtesy of FORD MOTOR COMPANY

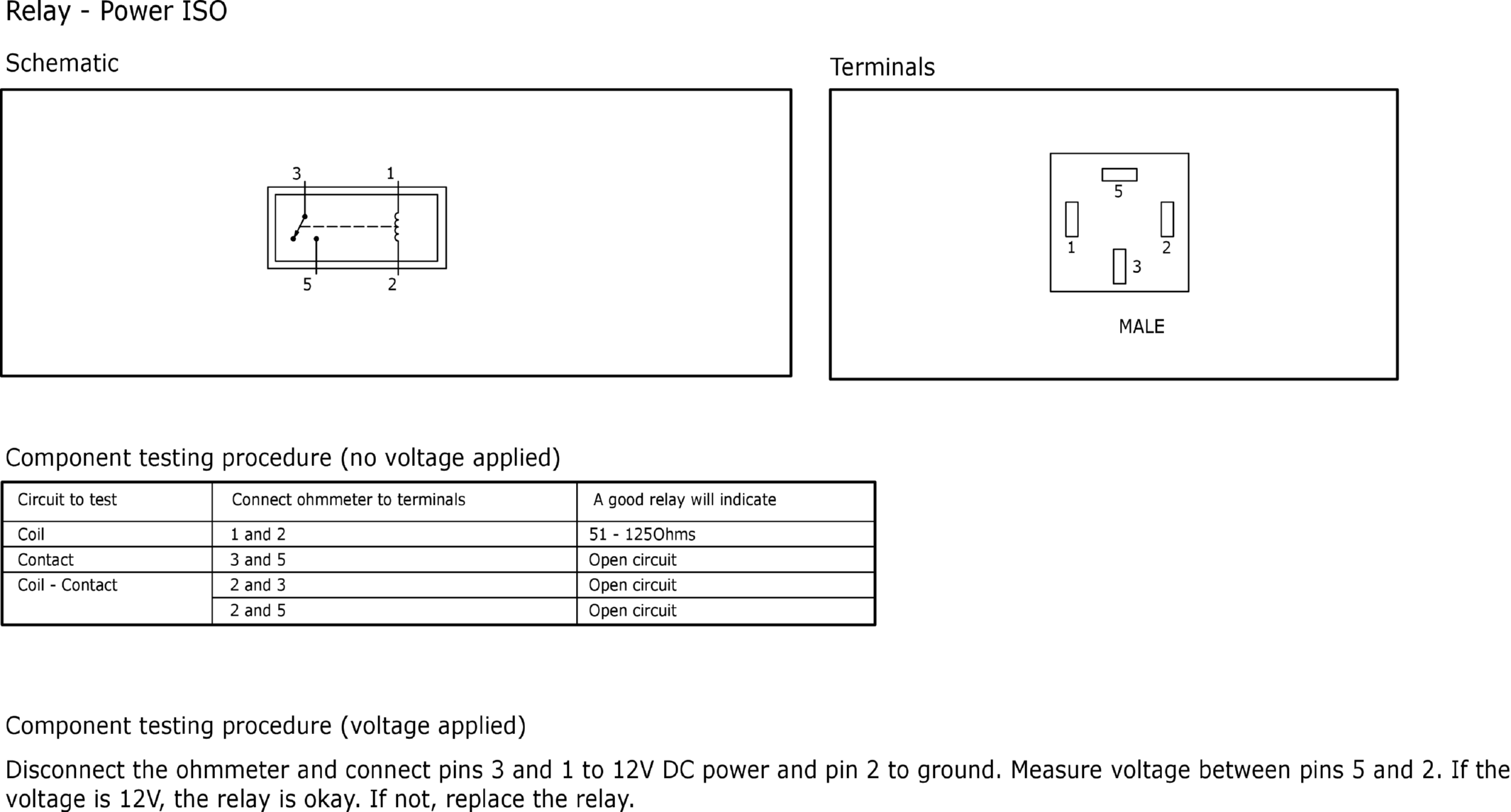

Fig 3: Relay - Power ISO
GFDW12647Courtesy of FORD MOTOR COMPANY
