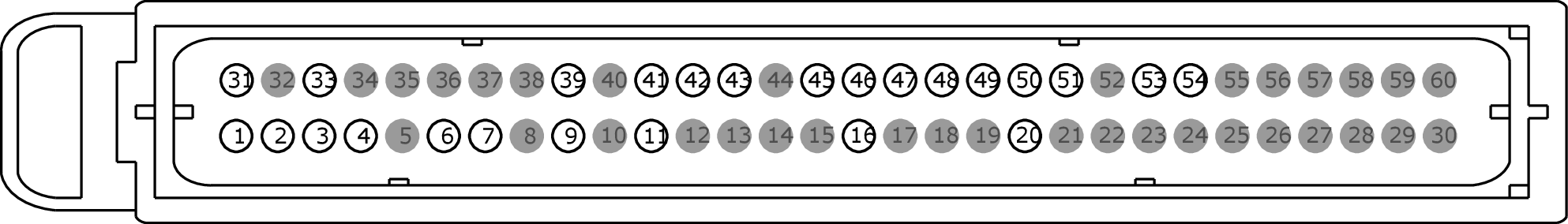

Connector End View (C1750) - TRANSMISSION CONTROL MODULE (TCM)
Connector: C1750
Description
TRANSMISSION CONTROL MODULE (TCM)
Color
Harness
14B060
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
SBB56 (VT-RD) |
18 |
FUSE - 56 OR CIRCUIT BREAKER |
|
|
2 |
CET25 (BU-GN) |
20 |
TRANSAXLE SOLENOID POWER CONTROL (TSPC) |
|
|
3 |
CET10 (BU-GY) |
20 |
TORQUE CONVERTER CLUTCH (TCC) SOLENOID |
|
|
4 |
CET09 (YE-VT) |
20 |
LINE PRESSURE CONTROL (LPC) |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
CET07 (GY-OG) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC) |
|
|
7 |
CET06 (GN-BN) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB) |
|
|
8 |
* |
* |
Not Used |
|
|
9 |
GD120 (BK-GN) |
18 |
GROUND - FENDER FRONT LEFT |
|
|
10 |
* |
* |
Not Used |
|
|
11 |
CET18 (GY-YE) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE) |
|
|
12 |
* |
* |
Not Used |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
* |
* |
Not Used |
|
|
15 |
* |
* |
Not Used |
|
|
16 |
CET40 (GN-OG) |
20 |
SWITCH - TRANSMISSION RANGE # PARK/NEUTRAL (TRSW-PN) |
|
|
17 |
* |
* |
Not Used |
|
|
18 |
* |
* |
Not Used |
|
|
19 |
* |
* |
Not Used |
|
|
20 |
LE111 (VT-GN) |
20 |
TSS / OSS / TR POWER SUPPLY |
|
|
21 |
* |
* |
Not Used |
|
|
22 |
* |
* |
Not Used |
|
|
23 |
* |
* |
Not Used |
|
|
24 |
* |
* |
Not Used |
|
|
25 |
* |
* |
Not Used |
|
|
26 |
* |
* |
Not Used |
|
|
27 |
* |
* |
Not Used |
|
|
28 |
* |
* |
Not Used |
|
|
29 |
* |
* |
Not Used |
|
|
30 |
* |
* |
Not Used |
|
|
31 |
SBB56 (VT-RD) |
18 |
FUSE - 56 OR CIRCUIT BREAKER |
|
|
32 |
* |
* |
Not Used |
|
|
33 |
CBB90 (YE-OG) |
18 |
FUSE - 90 OR CIRCUIT BREAKER |
|
|
34 |
* |
* |
Not Used |
|
|
35 |
* |
* |
Not Used |
|
|
36 |
* |
* |
Not Used |
|
|
37 |
* |
* |
Not Used |
|
|
38 |
* |
* |
Not Used |
|
|
39 |
GD120 (BK-GN) |
18 |
GROUND - FENDER FRONT LEFT |
|
|
40 |
* |
* |
Not Used |
|
|
41 |
GD120 (BK-GN) |
18 |
GROUND - FENDER FRONT LEFT |
|
|
42 |
CET05 (BU-GN) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA) |
|
|
43 |
CET08 (BN-WH) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD) |
|
|
44 |
* |
* |
Not Used |
|
|
45 |
VET32 (VT) |
20 |
SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR-P) |
|
|
46 |
RE406 (GY-VT) |
20 |
TRANSMISSION FLUID TEMPERATURE SENSOR SIGNAL RETURN |
|
|
47 |
VDB04 (WH-BU) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
|
48 |
VDB05 (WH) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
|
49 |
RET24 (BN-BU) |
20 |
TSS / OSS / TR SIGNAL RETURN (TSS / OSS / TR GND) |
|
|
50 |
VET33 (WH-OG) |
20 |
SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) |
|
|
51 |
VET26 (BN-GN) |
20 |
SENSOR - OUTPUT SHAFT SPEED (OSS) |
|
|
52 |
* |
* |
Not Used |
|
|
53 |
CET34 (BN-GN) |
20 |
SWITCH - TOW MODE CONTROL (TOWS) |
|
|
54 |
VET27 (BN-YE) |
20 |
SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) |
|
|
55 |
* |
* |
Not Used |
|
|
56 |
* |
* |
Not Used |
|
|
57 |
* |
* |
Not Used |
|
|
58 |
* |
* |
Not Used |
|
|
59 |
* |
* |
Not Used |
|
|
60 |
* |
* |
Not Used |
