Tire Pressure Monitoring System (TPMS) Sensor: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

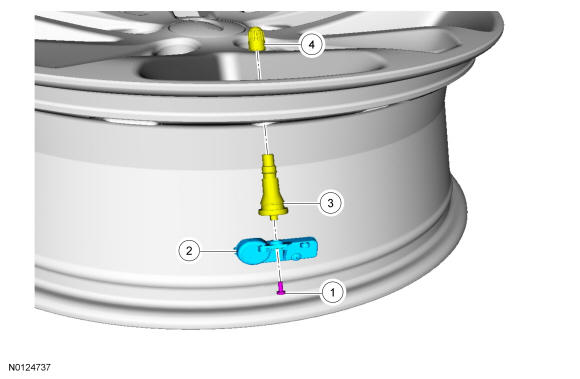

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Valve stem-to-TPM sensor screw (part of 1700 or 1A189) | - | - | 2 Nm (13 lb-in) |
| 2 | 1A189 | TPM sensor (a new sensor assembly includes 1700 valve stem screw and cap) | - | - | - |
| 3 | 1700 | Valve stem and screw (also part of 1A189) | - | - | - |
| 4 | 1A163 | Valve stem cap (also part of 1A189) | - | - | - |
