Tire Pressure Monitor (TPM) Module: Removal
NOTE:
Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
- 1.NOTE: It is not necessary to disconnect any electrical connectors.

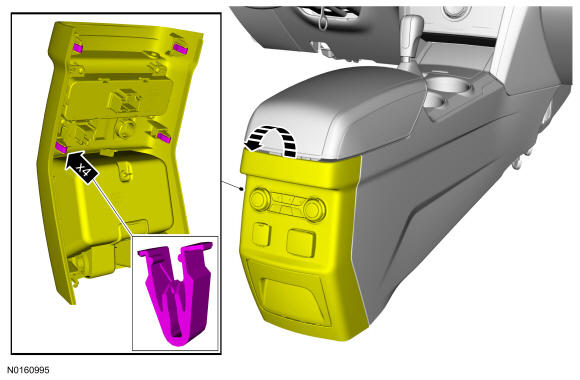

Position aside the floor console rear panel.
- 2.
- 1.

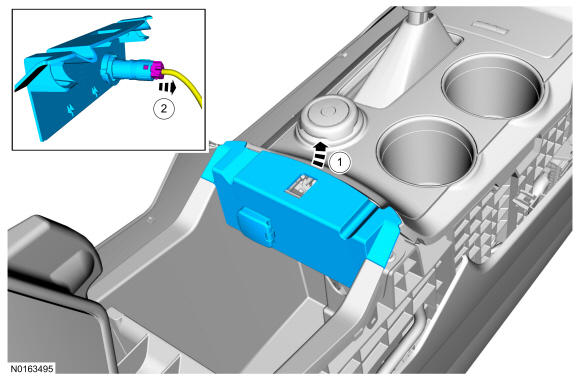

Disconnect the Tire Pressure Monitor Module (TPM) electrical connector.
- 2.
If equipped, disconnect the antenna wire.
- 1.
- 7.NOTE: It is not necessary to disconnect any electrical connectors.

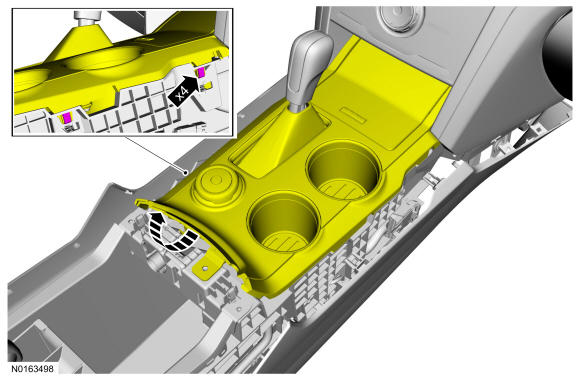

Position aside the upper finish panel.
