Tire Pressure Monitor (TPM) Module - Police Package: Removal

NOTE: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

• 1.

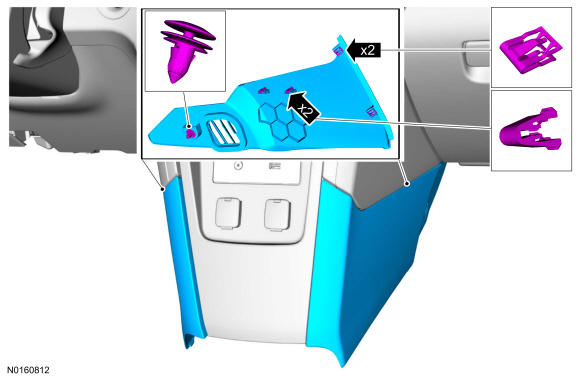

  Remove both the Left Hand (LH) and Right Hand (RH) center lower instrument panel finish panels.

Courtesy of FORD MOTOR COMPANY

• 2.

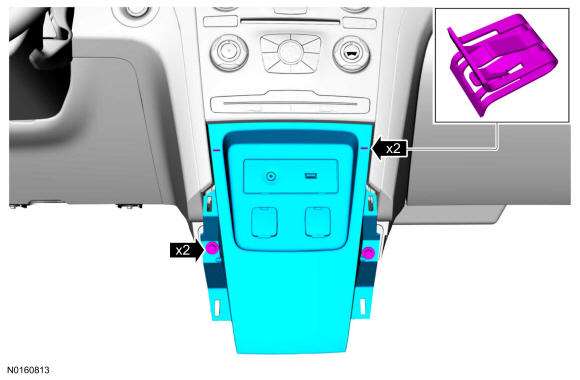

  Remove the center lower instrument panel finish panel.
  • To Install, tighten to 5 Nm (44 lb-in).

Courtesy of FORD MOTOR COMPANY

• 3.

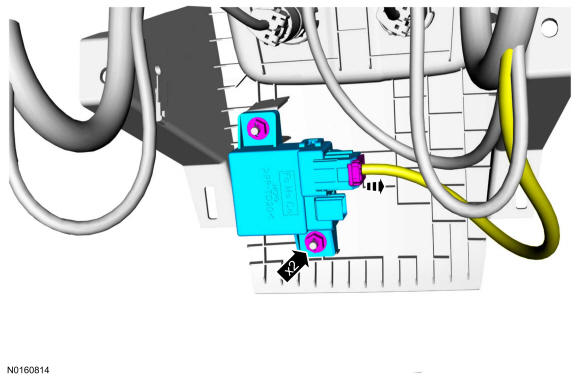

  Disconnect the electrical connector, remove the 2 Tire Pressure Monitor (TPM) module nuts and remove the TPM module.
  • To Install, tighten to 5 Nm (44 lb-in).

Courtesy of FORD MOTOR COMPANY
