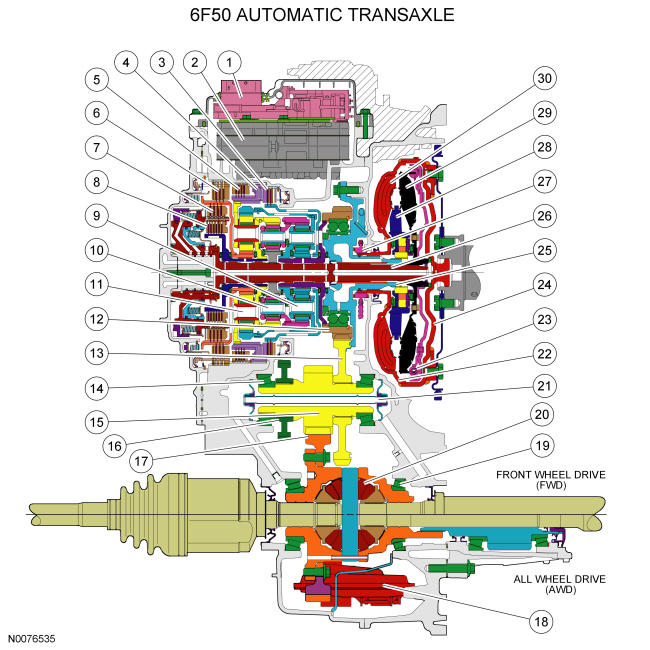

| 1 |
Solenoid body |
| 2 |
Valve body |
| 3 |
Forward clutch (clutch brake 1, 2, 3, 4) |
| 4 |
Low OWC |
| 5 |
Low/reverse clutch (clutch brake L/R) |
| 6 |
Intermediate clutch (clutch brake 2, 6) |
| 7 |
Direct clutch (drive clutch 3, 5, R) |
| 8 |
Overdrive clutch (drive clutch 4, 5, 6) |
| 9 |
Front planetary assembly |
| 10 |
Center planetary assembly |
| 11 |
Rear planetary assembly |
| 12 |
Differential transfer drive gear |
| 13 |
Differential transfer driven gear |
| 14 |
Transfer shaft roller bearing and cup |
| 15 |
Differential drive pinion gear |
| 16 |
Park gear |
| 17 |
Differential ring gear |
| 18 |
Fluid filter |
| 19 |
Differential roller bearing and cup |
| 20 |
Differential carrier gear and case assembly |
| 21 |
Differential lube tube |
| 22 |
Torque converter |
| 23 |
TCC |
| 24 |
Torque converter cover |
| 25 |
Support assembly (converter reactor) |
| 26 |
Turbine/input shaft |
| 27 |
Chain and sprocket pump driver |
| 28 |
Reactor |
| 29 |
Turbine |
| 30 |
Impeller |
