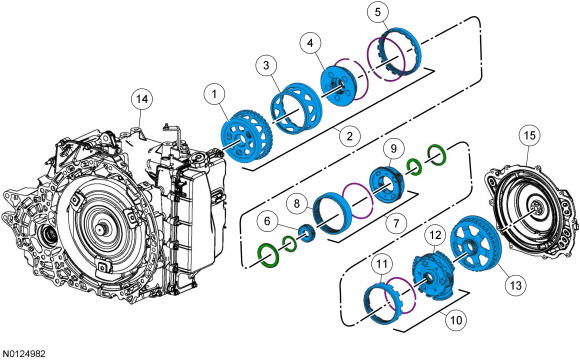

| 1 |
Gear and shell assembly - front sun |
| 2 |
Front planetary carrier/rear planetary ring gear assembly |
| 3 |
Planetary carrier shell - front |
| 4 |
Carrier - front planetary |
| 5 |
Ring gear - rear planetary |
| 6 |
Gear - center planetary sun |
| 7 |
Center planetary carrier/front ring gear assembly |
| 8 |
Ring gear - front planetary |
| 9 |
Planetary carrier assembly - center |
| 10 |
Rear planetary carrier/center ring gear assembly |
| 11 |
Gear - center ring |
| 12 |
Carrier - rear planetary |
| 13 |
Gear - rear planetary sun |
| 14 |
Transmission Case |
| 15 |
Cover assembly |
