Main Control Cover - 3.5L Ti-VCT: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Material
| Item | Specification |
| Motorcraft ®MERCON ® LV Automatic Transmission Fluid XT-10-QLVC | MERCON ® LV |

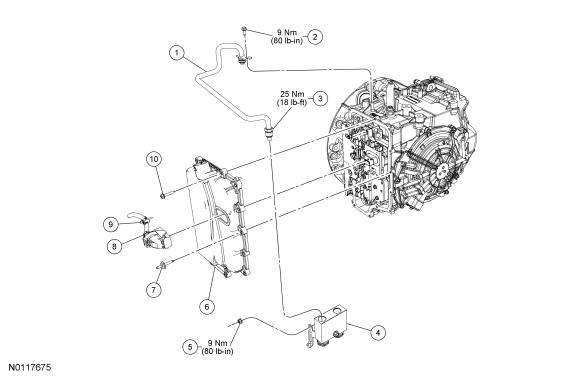

Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 7H420 | Transmission mounted transmission fluid cooler tube |
| 2 | W711538 | Transmission mounted transmission fluid cooler tube bolt |
| 3 | - | Transmission fluid cooler tube nut (part of 7H420) |
| 4 | 7H322 | Transmission fluid cooler thermal bypass valve |
| 5 | W520101 | Transmission fluid cooler thermal bypass valve nut (2 required) |
| 6 | 7G004 | Main control cover |
| 7 | W708442 | Main control cover studbolt (5 required) |
| 8 | 7A488 | Transmission harness connector |
| 9 | 14A169 | Transmission harness retainer |
| 10 | 7J289 | Main control cover bolt (9 required) |
