Transmission - 3.5L GTDI: Removal

1. 1.

   With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting .

1. 2.

   Remove the battery and battery tray. REFER to Battery, Mounting and Cables .

1. 3.

   Remove the ACL outlet pipe. REFER to Intake Air Distribution and Filtering .

1. 4.

   Remove the cowl panel grille. REFER to Front End Body Panels .

1. 5.



Courtesy of FORD MOTOR COMPANY

1. 6.



Courtesy of FORD MOTOR COMPANY

1. 7.



Courtesy of FORD MOTOR COMPANY

1. 8.



Courtesy of FORD MOTOR COMPANY

1. 9.



Courtesy of FORD MOTOR COMPANY

1. 10.



Courtesy of FORD MOTOR COMPANY

1. 11.



Courtesy of FORD MOTOR COMPANY

1. 12.



Courtesy of FORD MOTOR COMPANY

1. 13.



Courtesy of FORD MOTOR COMPANY

1. 14.



Courtesy of FORD MOTOR COMPANY

1. 15.



Courtesy of FORD MOTOR COMPANY

1. 16.



Courtesy of FORD MOTOR COMPANY

1. 17.

   Remove the crankcase vent tube. REFER to Fuel System General Information .

Courtesy of FORD MOTOR COMPANY

1. 18.



Courtesy of FORD MOTOR COMPANY

1. 19.



Courtesy of FORD MOTOR COMPANY

1. 20.



Courtesy of FORD MOTOR COMPANY

1. 21.

   Special Tool(s): Eye, Engine Lift 303-1245.

Courtesy of FORD MOTOR COMPANY

1. 22.



Courtesy of FORD MOTOR COMPANY

NOTE: Index-mark the CAC tube position for reference during installation.
1. 23.


Courtesy of FORD MOTOR COMPANY

1. 24.

   Special Tool(s): Support Bar, Engine 303-F072, Bar, Engine Spreader 303-1454.

Courtesy of FORD MOTOR COMPANY

1. 25.



Courtesy of FORD MOTOR COMPANY

1. 26.



Courtesy of FORD MOTOR COMPANY

NOTE: Do not loosen the center bolt or damage to the transmission support insulator will occur.
1. 27.
   Remove the 2 upper transmission support insulator bolts.

Courtesy of FORD MOTOR COMPANY

1. 28.

   Remove the front subframe. REFER to Uni-Body, Subframe and Mounting System .

1. 29.

   Remove the roll restrictors. Refer to Transmission Support Insulator - Anti-Roll, 3.5L GTDI .

1. 30.

   Drain the transmission fluid.
   • Tighten to 9 Nm (80 lb-in).

Courtesy of FORD MOTOR COMPANY

NOTE: Do not allow the halfshaft to over angel or hang from the outer CV joint. Always support the free end of the halfshaft or damage can occur.
1. 31.
   Remove and position aside the LH Halfshaft.

Courtesy of FORD MOTOR COMPANY

1. 32.



Courtesy of FORD MOTOR COMPANY

1. 33.

   Remove the PTU. REFER to Transfer Case Power Transfer Unit (PTU) .

1. 34.



   1. 1.

      Inspect the differential seal surface.

   1. 2.

      Inspect the halfshaft bushing surface. If this surface is damaged, inspect the halfshaft bushing for damage.

   1. 3.

      Inspect the differential side gear splines.

Courtesy of FORD MOTOR COMPANY

1. 35.



Courtesy of FORD MOTOR COMPANY

1. 36.



Courtesy of FORD MOTOR COMPANY

1. 37.



Courtesy of FORD MOTOR COMPANY

1. 38.

   Special Tool(s): Disconnect Tool, Transmission Cooler Line 307-569.

Courtesy of FORD MOTOR COMPANY

1. 39.

   Special Tool(s): Adapter, Transmission Jack 209-00152. General equipment: Transmission jack.

Courtesy of FORD MOTOR COMPANY

1. 40.



   1. 1.

      If equipped.

Courtesy of FORD MOTOR COMPANY

1. 41.

   Special Tool(s): Retainer, Torque Converter 307-346

Courtesy of FORD MOTOR COMPANY

1. 42.



Courtesy of FORD MOTOR COMPANY

1. 43.



Courtesy of FORD MOTOR COMPANY

1. 44.



Courtesy of FORD MOTOR COMPANY

NOTE: If the transmission fluid cooler tube seals or backing rings are stuck in the transmission case, remove the seals and backing rings.
1. 45.


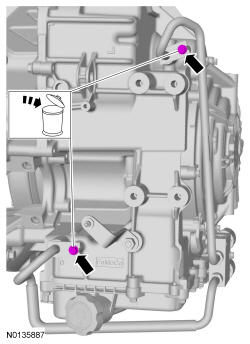

Courtesy of FORD MOTOR COMPANY

1. 46.

   If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carry out transmission fluid cooler backflushing and cleaning. REFER to Transaxle Transmission Cooling .
