Transmission Support Insulator - Anti-Roll FWD: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Material
| Item | Specification |
| Threadlock and Sealer TA-25 | WSK-M2G351-A5 |

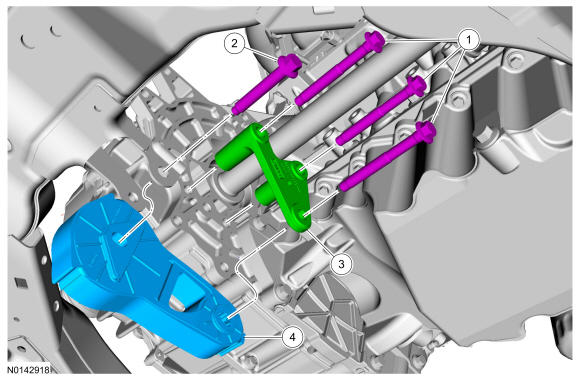

Exploded View
| Item | Service Part Number | Description |
|---|---|---|
| 1 | W715378 | Roll restrictor bracket bolt |
| 2 | W712850 | Roll restrictor bolt |
| 3 | 6P093 | Roll restrictor bracket |
| 4 | 6P082 | Roll restrictor |
